Ferrari 296 GTB — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

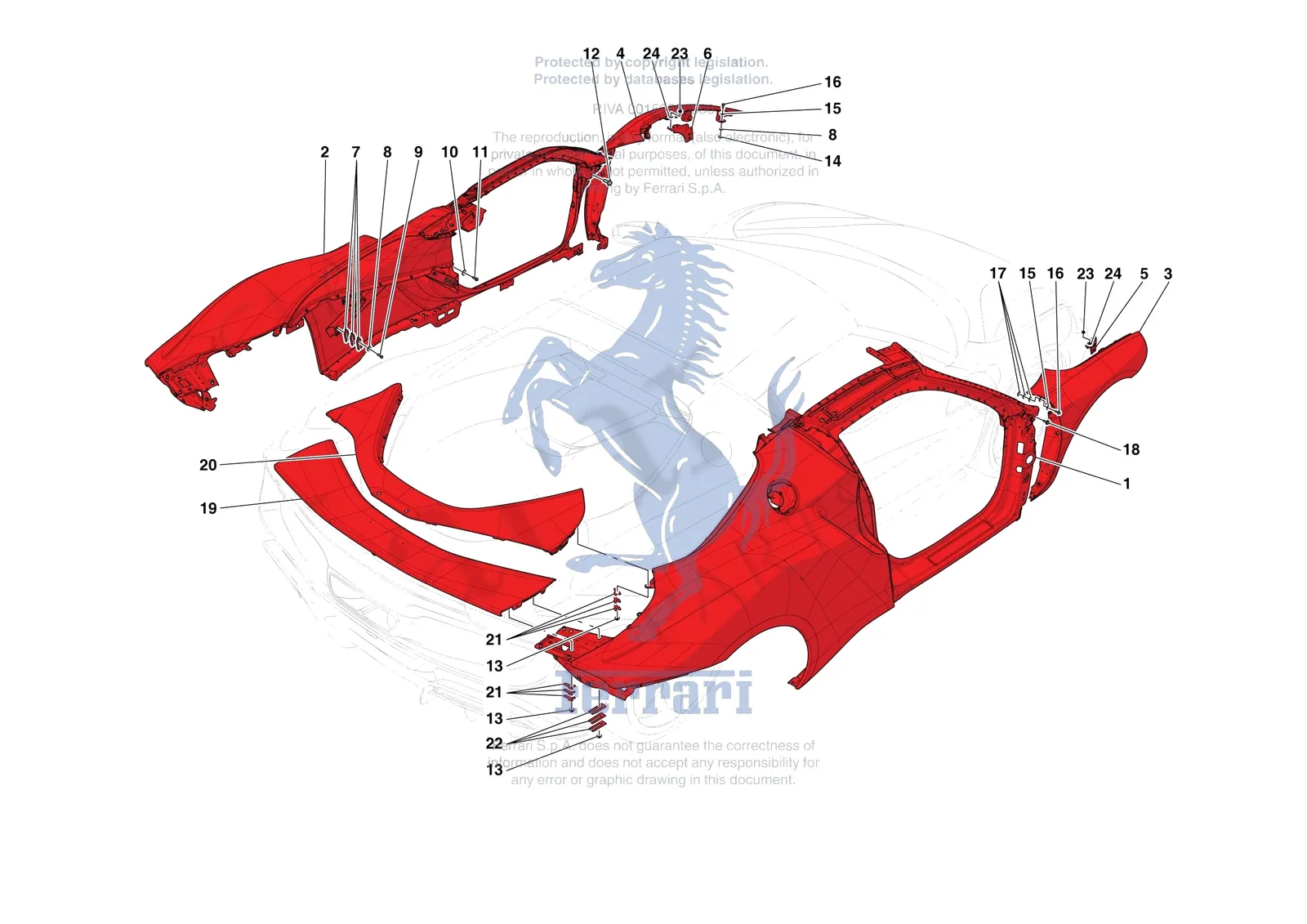

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari 296 GTB, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 12640606 | Ferrari Washer - 12640606 | Superseded | Order 12640678 instead | |
| 12640608 | Ferrari Washer - 12640608 | Superseded | Order 12640678 instead | |
| 12640677 | Ferrari Washer - 12640677 | Superseded | Order 12640678 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985955959 | Ferrari RH Flank - 985955959 | $45,647.15 | Contact us to order |
| 2 | 985955186 | Ferrari LH Flank - 985955186 | $45,647.15 | Contact us to order |
| 3 | 985955481 | Ferrari Compl. RH Front Fender - 985955481 | $14,820.51 | Contact us to order |
| 3 | 985956673 | Ferrari Compl. RH Front Fender - 985956673 | $8,249.10 | Contact us to order |
| 4 | 985955438 | Ferrari Compl. LH Front Fender - 985955438 | $8,053.43 | Contact us to order |
| 4 | 985956661 | Ferrari Compl. LH Front Fender - 985956661 | $8,249.10 | Contact us to order |
| 5 | 918078 | Ferrari RH Fender Fastener Bracket - 918078 | $983.50 | Special order, ships in 7-14 days |
| 5 | 955480 | Ferrari RH Fender Fastener Bracket - 955480 | Superseded | Order 918078 instead |
| 6 | 918050 | Ferrari LH Fender Fastener Bracket - 918050 | $983.50 | Special order, ships in 7-14 days |
| 6 | 955429 | Ferrari LH Fender Fastener Bracket - 955429 | Superseded | Order 918050 instead |
| 7 | 912122 | Ferrari Adjustment Shim - 912122 | $17.42 | Special order, ships in 7-14 days |
| 8 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 9 | 205370 | Ferrari Screw M6 x 25 - 205370 | $0.96 | Special order, ships in 7-14 days |
| 10 | 12640678 | Ferrari Washer 6.15x25x2 - 12640678 | $3.47 | Available, ships in 3-6 days |
| 11 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 12 | 239871 | Ferrari Screw - 239871 | $4.77 | Special order, ships in 7-14 days |
| 13 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 14 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 15 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 16 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 17 | 12647701 | Ferrari Washer - 12647701 | $0.12 | Available, ships in 3-6 days |
| 18 | 11640521 | Ferrari Screw - 11640521 | $2.59 | Available, ships in 3-6 days |
| 19 | 985955423 | Ferrari Rear Spoiler - 985955423 | $6,456.12 | Special order, ships in 7-14 days |
| 20 | 985956537 | Ferrari Compl. Outer Flank Connectio - 985956537 | $6,594.28 | Special order, ships in 7-14 days |
| 21 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 22 | 821189 | Ferrari Adjuster Shim - 821189 | $5.14 | Special order, ships in 7-14 days |
| 22 | 836213 | Ferrari Shim 1.0mm - 836213 | $18.32 | Special order, ships in 7-14 days |
| 23 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 24 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
