Ferrari 296 GTB — [VEHICLE TRIM] - E.03 - ROOF (diagram 0099)

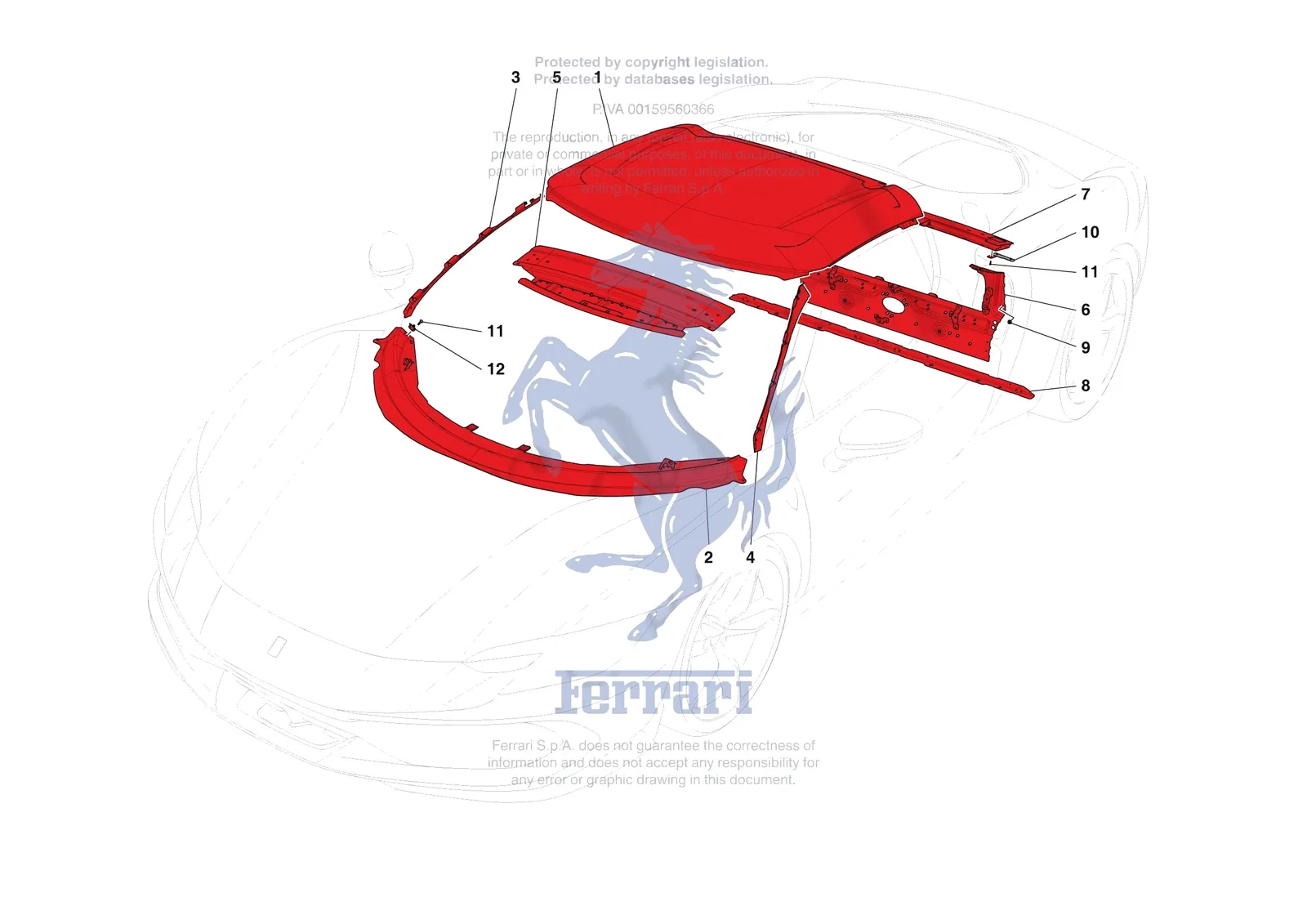

Exploded view of the [vehicle trim] - e.03 - roof on the Ferrari 296 GTB, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.03 - ROOF exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0099.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985952429 | Ferrari Compl. Outer Roof Skin - 985952429 | $16,926.34 | Contact us to order |
| 2 | 985952425 | Ferrari Windscreen Cross-Member Uppe - 985952425 | $2,107.53 | Special order, ships in 7-14 days |
| 3 | 805722 | Ferrari Compl. RH Channel Bracket - 805722 | $270.44 | Special order, ships in 7-14 days |
| 4 | 805715 | Ferrari Compl. LH Channel Bracket - 805715 | $270.44 | Special order, ships in 7-14 days |
| 5 | 985952420 | Ferrari Compl. Front Roof Cross Memb - 985952420 | $1,426.08 | Special order, ships in 7-14 days |
| 6 | 985952430 | Ferrari Compl. Rear Screen Wall - 985952430 | $1,524.44 | Special order, ships in 7-14 days |
| 7 | 985952432 | Ferrari Compl. Rear Roof Cross Membe - 985952432 | $1,106.43 | Special order, ships in 7-14 days |
| 8 | 985952431 | Ferrari Lower Rear Screen Wall Closu - 985952431 | $442.56 | Special order, ships in 7-14 days |
| 9 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
| 10 | 871225 | Ferrari LH B-Pillar Partition - 871225 | $46.69 | Special order, ships in 7-14 days |
| 10 | 871220 | Ferrari RH B-Pillar Partition - 871220 | $46.48 | Special order, ships in 7-14 days |
| 11 | 14639591 | Ferrari Rivet - 14639591 | $3.03 | Available, ships in 3-6 days |
| 12 | 808657 | Ferrari LH Windscreen Cross Member P - 808657 | $39.31 | Special order, ships in 7-14 days |
| 12 | 808658 | Ferrari RH Windscreen Cross Member P - 808658 | $39.31 | Special order, ships in 7-14 days |
