Ferrari 296 GTB — [VEHICLE TRIM] - E.07 - REAR SUBFRAME (diagram 0103)

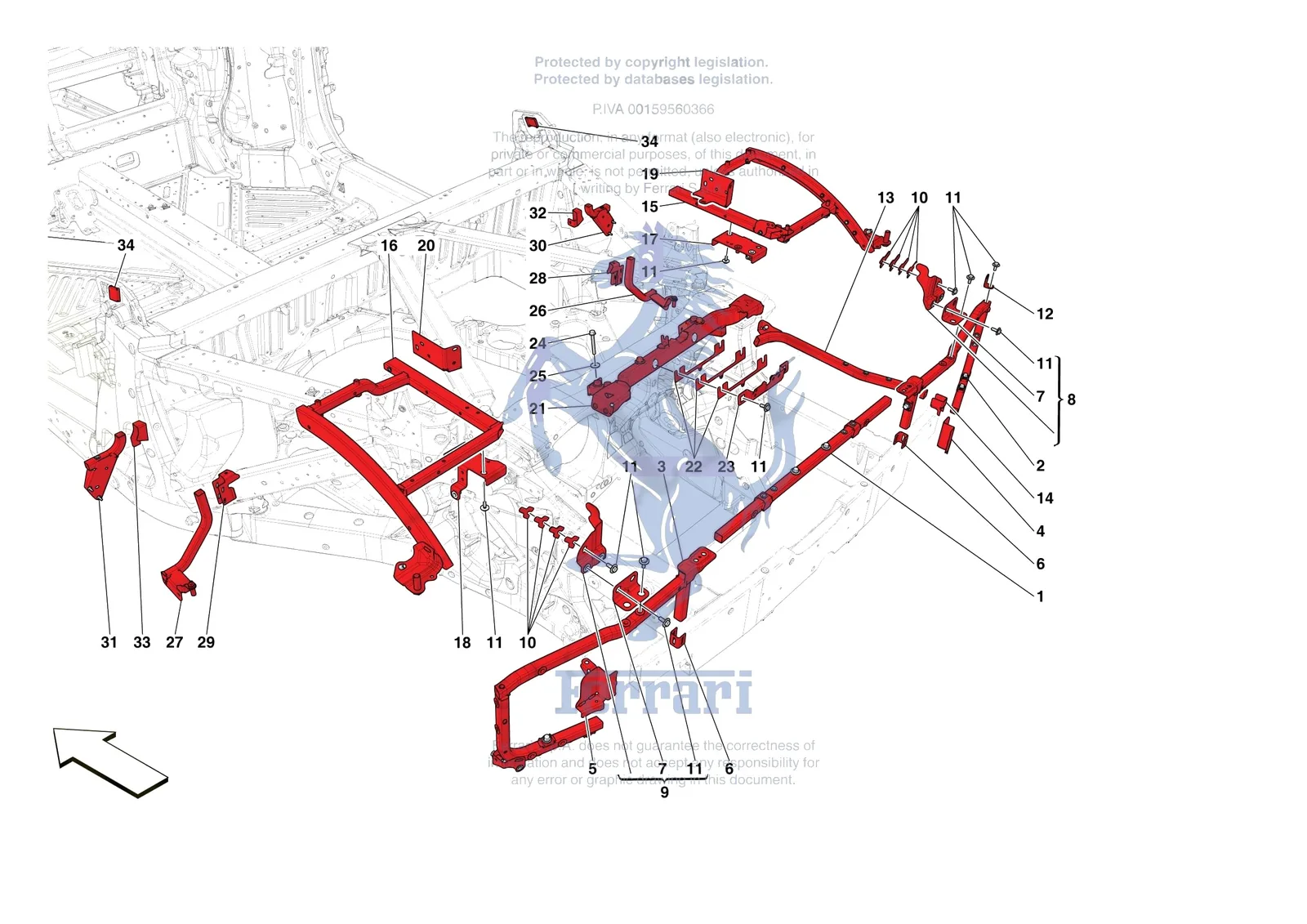

Exploded view of the [vehicle trim] - e.07 - rear subframe on the Ferrari 296 GTB, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.07 - REAR SUBFRAME exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0103.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 1 | 985956779 | Ferrari Compl. Centre Rear Trellis - 985956779 | $713.04 | Special order, ships in 7-14 days |
| 2 | 985956790 | Ferrari Compl. RH Rear Trellis - 985956790 | $1,770.31 | Special order, ships in 7-14 days |
| 3 | 985956812 | Ferrari Compl. LH Rear Trellis - 985956812 | $1,647.38 | Special order, ships in 7-14 days |
| 4 | 956687 | Ferrari RH Rear Trellis Frame Bracke - 956687 | $71.28 | Special order, ships in 7-14 days |
| 5 | 956689 | Ferrari LH Rear Trellis Frame Bracke - 956689 | $71.28 | Special order, ships in 7-14 days |
| 6 | 956686 | Ferrari Bracket For Adjuster - 956686 | $20.87 | Special order, ships in 7-14 days |
| 7 | 794168 | Ferrari Lower Light Unit Base Fasten - 794168 | $27.03 | Special order, ships in 7-14 days |
| 8 | 793987 | Ferrari Compl. RH Light Unit Base Fa - 793987 | $105.70 | Special order, ships in 7-14 days |
| 9 | 794173 | Ferrari Compl. LH Light Unit Base Fa - 794173 | $105.70 | Special order, ships in 7-14 days |
| 10 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 11 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 12 | 985594 | Ferrari Bracket Fastening Base To Mo - 985594 | $19.65 | Special order, ships in 7-14 days |
| 13 | 985956830 | Ferrari Compl. Mounting Trellis Fram - 985956830 | $688.45 | Special order, ships in 7-14 days |
| 14 | 956831 | Ferrari RH Trellis Frame Mounting Br - 956831 | $39.31 | Special order, ships in 7-14 days |
| 15 | 985956737 | Ferrari RH Rear Flank Trellis - 985956737 | $2,201.19 | Special order, ships in 7-14 days |
| 16 | 985956746 | Ferrari LH Rear Flank Trellis - 985956746 | $1,647.38 | Special order, ships in 7-14 days |
| 17 | 956692 | Ferrari Compl. Upper Bracket Of RH R - 956692 | $108.16 | Special order, ships in 7-14 days |
| 18 | 956698 | Ferrari Compl. Upper Bracket Of LH R - 956698 | $105.70 | Special order, ships in 7-14 days |
| 19 | 956690 | Ferrari RH Flank Mounting Bracket - 956690 | $76.19 | Special order, ships in 7-14 days |
| 20 | 956691 | Ferrari LH Flank Mounting Bracket - 956691 | $76.19 | Special order, ships in 7-14 days |
| 21 | 985956721 | Ferrari Compl. Engine Compartment Li - 985956721 | $1,598.19 | Special order, ships in 7-14 days |
| 22 | 830401 | Ferrari Lock Bracket - Thickness 1mm - 830401 | $16.45 | Special order, ships in 7-14 days |
| 23 | 830431 | Ferrari Engine Compartment Lid Lock - 830431 | $61.45 | Special order, ships in 7-14 days |
| 24 | 14304824 | Ferrari Allen Screw 6x55 - 14304824 | $0.50 | Available, ships in 3-6 days |
| 24 | 16286721 | Ferrari Screw - 16286721 | Superseded | Order 14304824 instead |
| 25 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 26 | 985956760 | Ferrari Compl. RH Rear Trellis - 985956760 | $540.90 | Special order, ships in 7-14 days |
| 27 | 985956770 | Ferrari Compl. LH Rear Trellis - 985956770 | $639.27 | Special order, ships in 7-14 days |
| 28 | 958447 | Ferrari LH Rear Substructure Mountin - 958447 | $36.86 | Special order, ships in 7-14 days |
| 29 | 958449 | Ferrari LH Rear Substructure Mountin - 958449 | $36.86 | Special order, ships in 7-14 days |
| 30 | 985956819 | Ferrari Compl. RH Flank Mounting Tre - 985956819 | $467.15 | Special order, ships in 7-14 days |
| 31 | 985956827 | Ferrari Compl. LH Flank Mounting Tre - 985956827 | $467.15 | Special order, ships in 7-14 days |
| 32 | 958450 | Ferrari RH Trellis Frame Fastener Br - 958450 | $34.40 | Special order, ships in 7-14 days |
| 33 | 958451 | Ferrari LH Trellis Frame Fastener Br - 958451 | $31.93 | Special order, ships in 7-14 days |
| 34 | 775500 | Ferrari Hole Blanking Plate - 775500 | $27.03 | Special order, ships in 7-14 days |
