Ferrari 296 GTB — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)

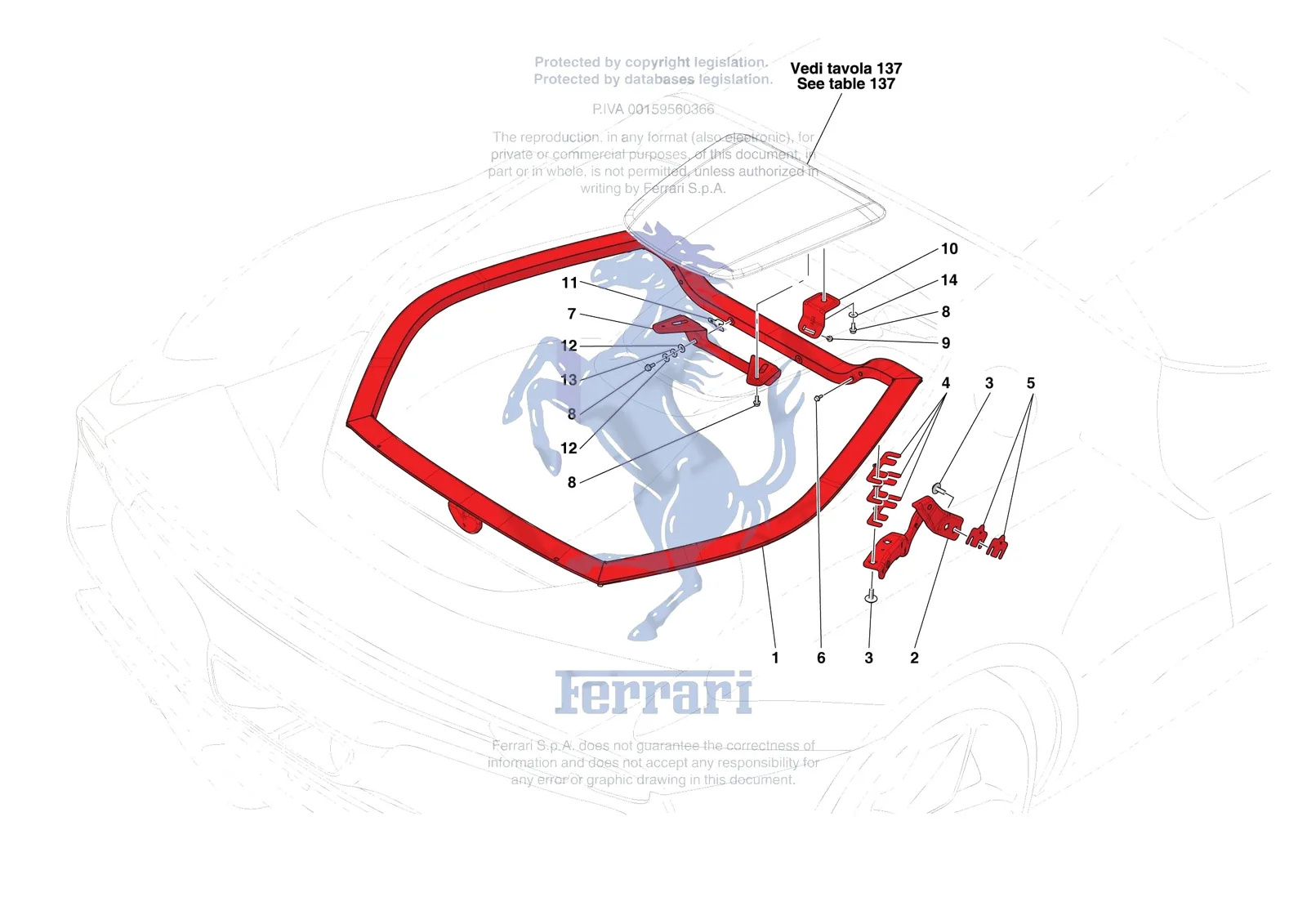

Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari 296 GTB, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 900889 | Ferrari Adjustment Shim - 900889 | Superseded | Order 87583700 instead | |
| 16286227 | Ferrari Screw - 16286227 | Superseded | Order 16286027 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 921748 | Ferrari Spess.Curvo Di Regolaz.A For - 921748 | $12.29 | Special order, ships in 7-14 days | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 985952595 | Ferrari Compl. Rear Lid Substructure - 985952595 | $3,219.85 | Special order, ships in 7-14 days |
| 2 | 952587 | Ferrari LH Engine Compartment Lid Hi - 952587 | $417.97 | Special order, ships in 7-14 days |
| 2 | 952589 | Ferrari RH Engine Compartment Lid Hi - 952589 | $417.97 | Special order, ships in 7-14 days |
| 3 | 907299 | Ferrari Screw M8 x 25 - 907299 | Superseded | Order 82271400 instead |
| 3 | 82271400 | Ferrari Screw with Washer M8 x 25 TE - 82271400 | $2.59 | Available, ships in 3-6 days |
| 4 | 952600 | Ferrari Fork Spacer - 952600 | $23.57 | Special order, ships in 7-14 days |
| 5 | 952586 | Ferrari Shim For Hinge - 952586 | $15.47 | Special order, ships in 7-14 days |
| 6 | 16286027 | Ferrari Screw 6x16 - 16286027 | $1.02 | Available, ships in 3-6 days |
| 7 | 952591 | Ferrari Centre Insert Mount - 952591 | $206.52 | Special order, ships in 7-14 days |
| 8 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 9 | 16285014 | Ferrari Screw - 16285014 | $3.47 | Available, ships in 3-6 days |
| 10 | 799730 | Ferrari Front Centre Insert Mounting - 799730 | $103.25 | Special order, ships in 7-14 days |
| 11 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 11 | 87583700 | Ferrari Fork Adjuster Shim - 87583700 | $3.91 | Special order, ships in 7-14 days |
| 12 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 13 | 867601 | Ferrari Washer - 867601 | $3.91 | Special order, ships in 7-14 days |
| 14 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
