Ferrari 296 GTB — [VEHICLE TRIM] - E.14 - FRONT SHIELDS (diagram 0113)
Exploded view of the [vehicle trim] - e.14 - front shields on the Ferrari 296 GTB, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

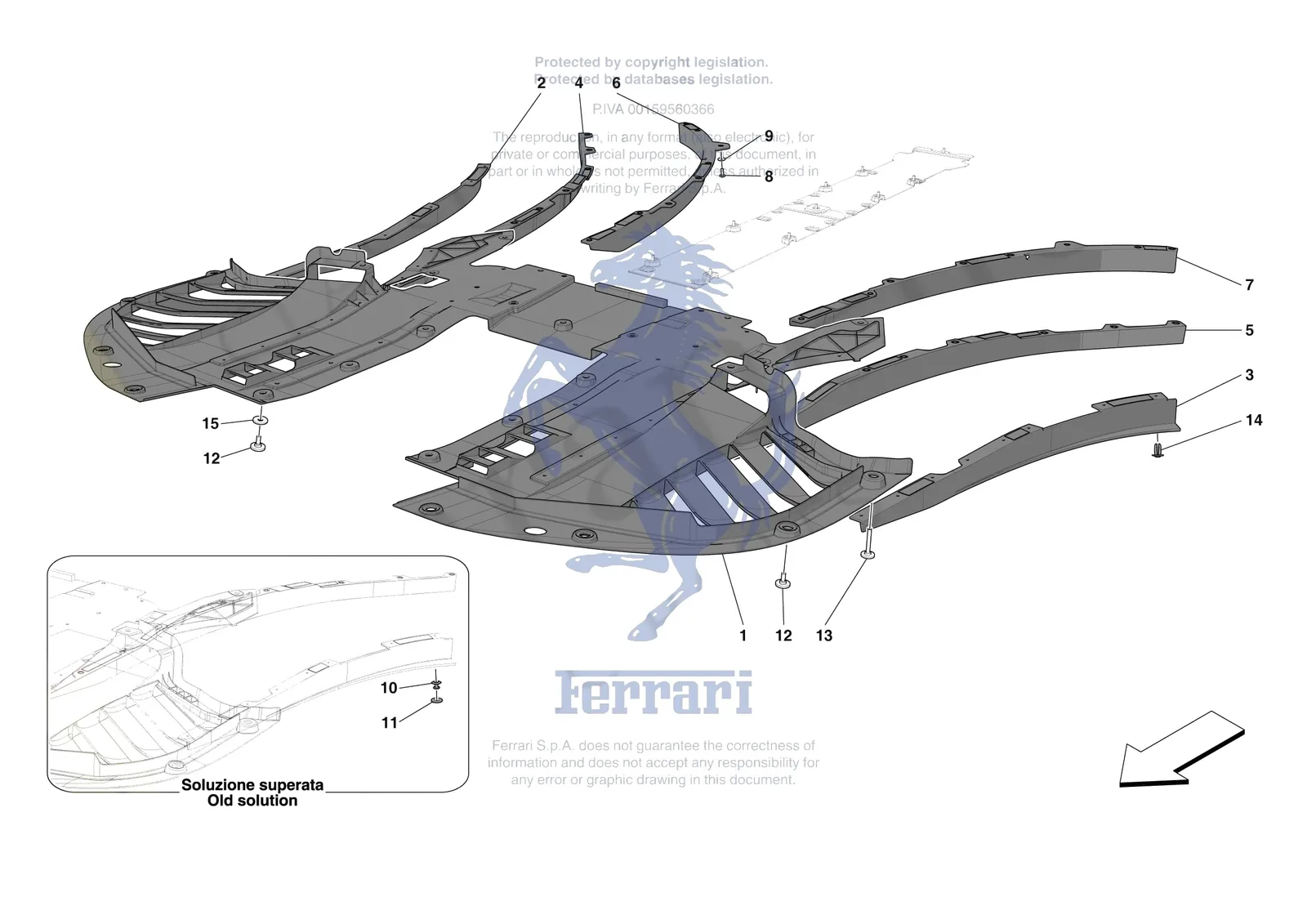

![Ferrari 296 GTB [VEHICLE TRIM] - E.14 - FRONT SHIELDS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0113.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14498804 | Ferrari Washer - 14498804 | Superseded | Order 14498824 instead | |
| 1 | 904479 | Ferrari Front Underbody Shield - 904479 | $1,278.55 | Available, ships in 3-6 days |
| 1 | 979322 | Ferrari Front Underbody Shield - 979322 | $1,106.43 | Special order, ships in 7-14 days |
| 2 | 979320 | Ferrari RH Lateral Front Dam - 979320 | $81.11 | Special order, ships in 7-14 days |
| 3 | 979323 | Ferrari LH Lateral Front Dam - 979323 | $81.11 | Special order, ships in 7-14 days |
| 4 | 979327 | Ferrari RH Central Front Dam - 979327 | $169.62 | Special order, ships in 7-14 days |
| 5 | 979328 | Ferrari LH Central Front Dam - 979328 | $169.62 | Special order, ships in 7-14 days |
| 6 | 979325 | Ferrari RH Front Inner Dam - 979325 | $135.20 | Special order, ships in 7-14 days |
| 7 | 979324 | Ferrari LH Front Inner Dam - 979324 | $135.20 | Special order, ships in 7-14 days |
| 8 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 9 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 9 | 13577701 | Ferrari Washer 5.15 - 15 x 1.2 - 13577701 | $0.19 | Available, ships in 3-6 days |
| 10 | 14295696 | Ferrari Rivet - 14295696 | $0.92 | Available, ships in 3-6 days |
| 11 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 12 | 82362500 | Ferrari Screw - 82362500 | $1.49 | Available, ships in 3-6 days |
| 12 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 13 | 85687400 | Ferrari 488 Rear Bumper Screw - 85687400 | $4.16 | In stock |
| 14 | 900472 | Ferrari Fastener Button D.5 - 900472 | $0.98 | Special order, ships in 7-14 days |
| 15 | 12640624 | Ferrari Plain Washer 6mm - 12640624 | $0.31 | Available, ships in 3-6 days |
