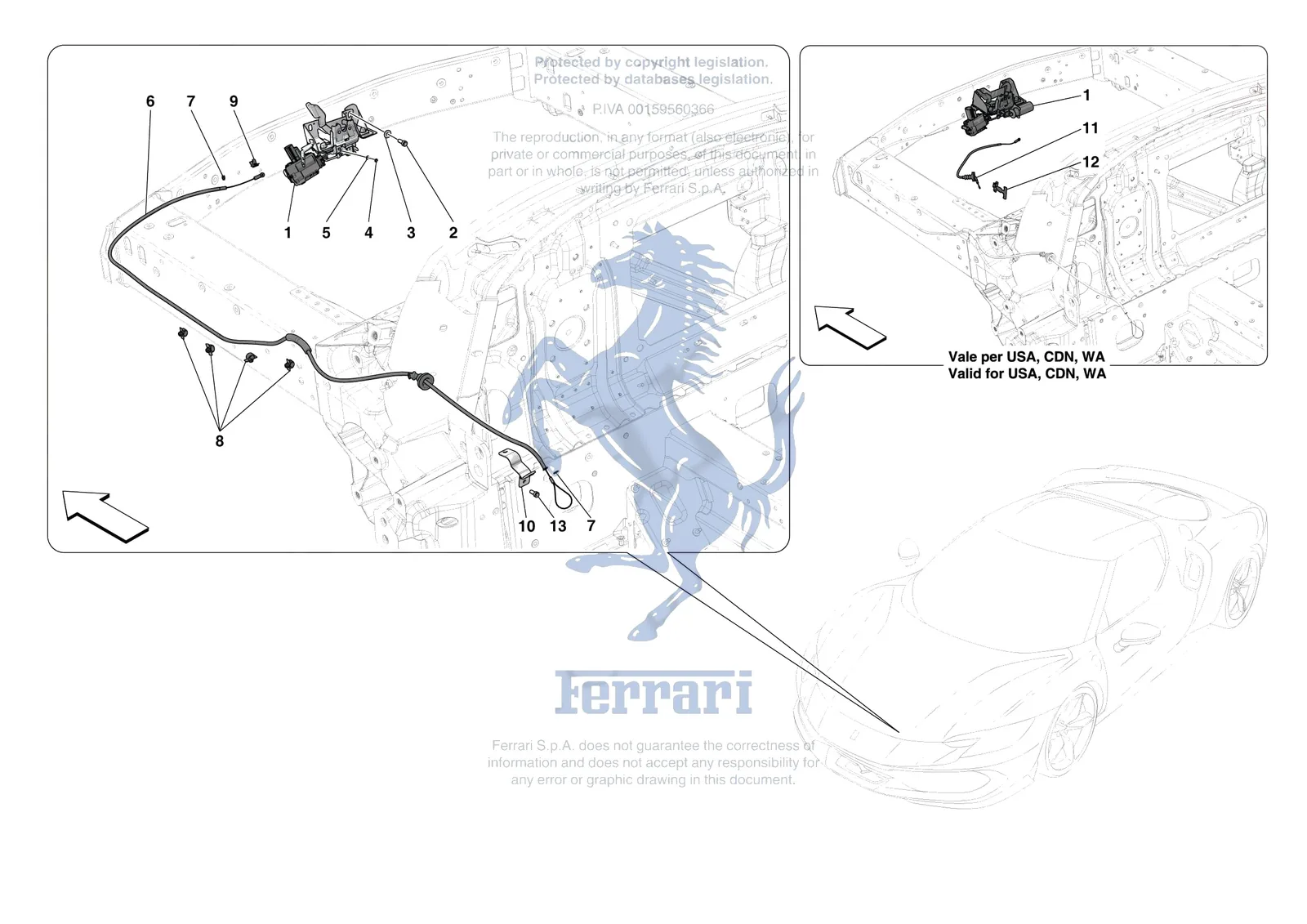

Ferrari 296 GTB — [VEHICLE TRIM] - E.34 - FRONT LID LOCK (diagram 0135)
Exploded view of the [vehicle trim] - e.34 - front lid lock on the Ferrari 296 GTB, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.34 - FRONT LID LOCK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0135.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 11087675 | Ferrari Circlip - 11087675 | Superseded | Order 11087676 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead | |
| 20035903 | Ferrari Door Lock Circlips - 20035903 | Superseded | Order 11087676 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 905852 | Ferrari Compl. Front Lid Lock - 905852 | $1,868.67 | Special order, ships in 7-14 days |
| 1 | 985416 | Ferrari Compl. Front Lid Lock - 985416 | $909.73 | Special order, ships in 7-14 days |
| 2 | 13027026 | Ferrari Screw M6 x 16 TCEI - 13027026 | $2.01 | Available, ships in 3-6 days |
| 3 | 11194674 | Ferrari Washer - 11194674 | $0.92 | Available, ships in 3-6 days |
| 4 | 11087476 | Ferrari Circlip - 11087476 | $11.35 | Available, ships in 3-6 days |
| 5 | 14496101 | Ferrari Washer - 14496101 | $0.12 | Available, ships in 3-6 days |
| 6 | 744463 | Ferrari Front Lid Lock Release Bowde - 744463 | $130.29 | Special order, ships in 7-14 days |
| 6 | 887139 | Ferrari Front Lid Lock Release Bowde - 887139 | $132.75 | Special order, ships in 7-14 days |
| 7 | 11087676 | Ferrari Circlip - 11087676 | $0.27 | Available, ships in 3-6 days |
| 8 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 9 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 9 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 10 | 845952 | Ferrari Bracket - 845952 | $20.62 | Special order, ships in 7-14 days |
| 10 | 887623 | Ferrari Bracket - 887623 | $22.85 | Special order, ships in 7-14 days |
| 11 | 905869 | Ferrari Child Safety Release Bowden - 905869 | $93.40 | Special order, ships in 7-14 days |
| 12 | 67053000 | Ferrari Boot Safety Handle - 67053000 | $66.35 | Special order, ships in 7-14 days |
| 13 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
