Ferrari 296 GTB — [VEHICLE TRIM] - E.36 - REAR LID TRIM (diagram 0137)

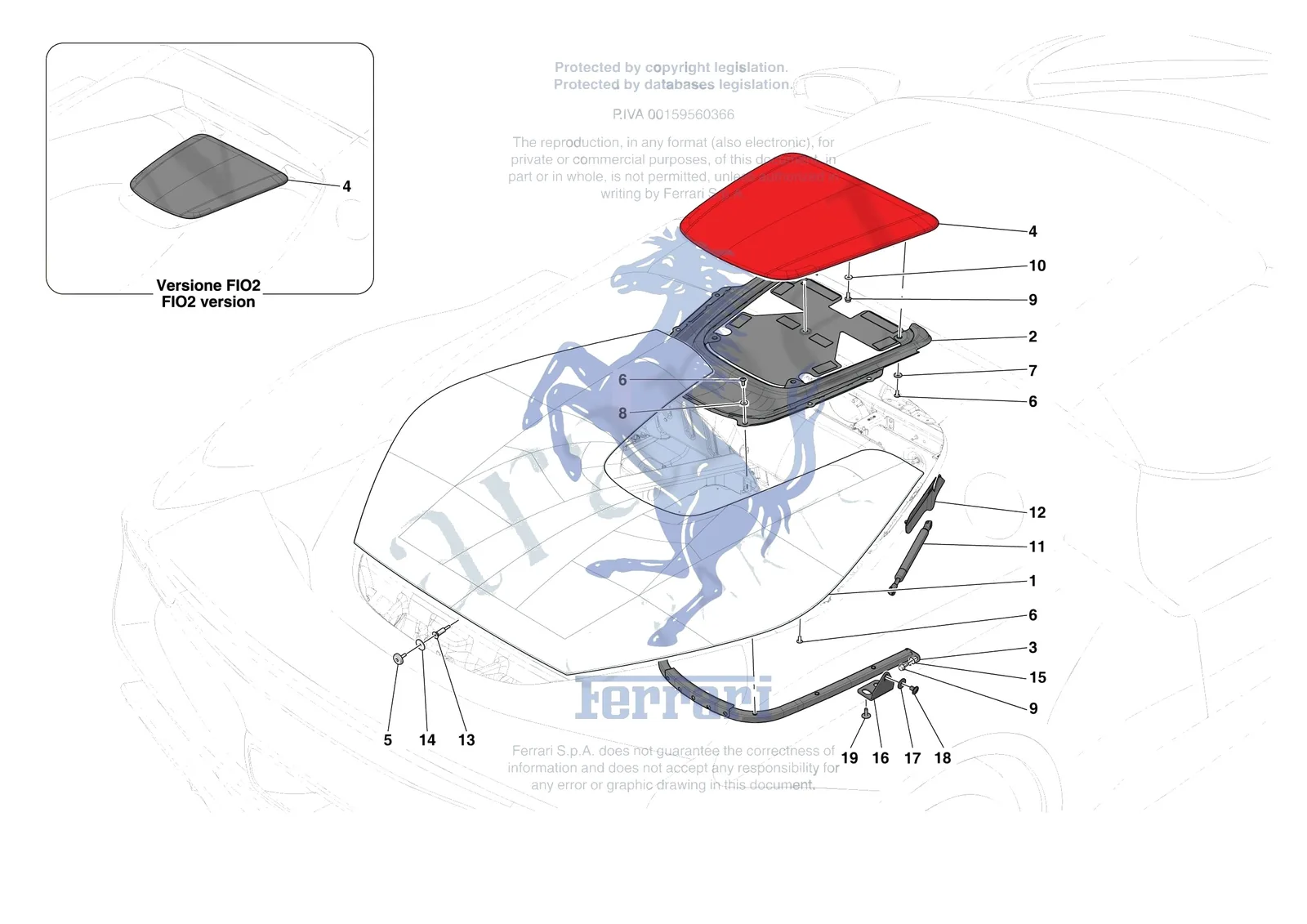

Exploded view of the [vehicle trim] - e.36 - rear lid trim on the Ferrari 296 GTB, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.36 - REAR LID TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0137.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 16286227 | Ferrari Screw - 16286227 | Superseded | Order 16286027 instead | |
| 881061 | Ferrari Screw M6x18 with Washer - 881061 | Superseded | Order 936581 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 14498804 | Ferrari Washer - 14498804 | Superseded | Order 14498824 instead | |
| 1 | 884481 | Ferrari Engine Compartment Lid Windo - 884481 | Superseded | Order 985945880 instead |
| 1 | 945880 | Ferrari Engine Compartment Lid Windo - 945880 | Superseded | Order 985945880 instead |
| 1 | 979013 | Ferrari Engine Compartment Lid Windo - 979013 | $3,515.70 | Special order, ships in 7-14 days |
| 1 | 985945880 | Ferrari Engine Compartment Lid Windo - 985945880 | $16,202.66 | Contact us to order |
| 2 | 70007660 | Ferrari COMPL. CENTRE INSERT GRILLE - 70007660 | Price on request | Contact us for price and availability |
| 2 | 979008 | Ferrari Compl. Centre Insert Grille - 979008 | $1,155.62 | Special order, ships in 7-14 days |
| 3 | 743661 | Ferrari Compl. Rear Grille Extrusion - 743661 | Superseded | Order 910414 instead |
| 3 | 910414 | Ferrari Compl. Rear Grille Extrusion - 910414 | $568.23 | Special order, ships in 7-14 days |
| 4 | 70007661 | Ferrari Compl. Engine Compartment Li - 70007661 | $37,524.38 | Contact us to order |
| 4 | 812832 | Ferrari Compl. Engine Compartment Li - 812832 | Superseded | Order 887656 instead |
| 4 | 887646 | Ferrari Compl. Engine Compartment Li - 887646 | $6,748.84 | Special order, ships in 7-14 days |
| 4 | 887656 | Ferrari Compl. Engine Compartment Li - 887656 | $6,690.30 | Special order, ships in 7-14 days |
| 4 | 893712 | Ferrari Compl. Engine Compartment Li - 893712 | Superseded | Order 887646 instead |
| 4 | 985952585 | Ferrari Compl. Engine Compartment Li - 985952585 | $1,844.08 | Special order, ships in 7-14 days |
| 5 | 872926 | Ferrari Striker Fastener Screw M5 - 872926 | $30.57 | Special order, ships in 7-14 days |
| 6 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 6 | 16286027 | Ferrari Screw 6x16 - 16286027 | $1.02 | Available, ships in 3-6 days |
| 7 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 8 | 12646678 | Ferrari Washer - 12646678 | $1.49 | Available, ships in 3-6 days |
| 9 | 915271 | Ferrari Screw - 915271 | $2.59 | Special order, ships in 7-14 days |
| 10 | 912044 | Ferrari Washer - 912044 | $1.82 | Special order, ships in 7-14 days |
| 10 | 12647678 | Ferrari Washer D1 6.15- - 12647678 | $0.84 | Special order, ships in 7-14 days |
| 11 | 788602 | Ferrari Spring - 788602 | $61.16 | Special order, ships in 7-14 days |
| 11 | 851067 | Ferrari Spring - 851067 | $67.73 | Special order, ships in 7-14 days |
| 12 | 793518 | Ferrari LH Hinge Cover - 793518 | $46.69 | Special order, ships in 7-14 days |
| 12 | 793519 | Ferrari RH Hinge Cover - 793519 | $46.69 | Special order, ships in 7-14 days |
| 13 | 85755000 | Ferrari Striker Plate - 85755000 | $68.83 | Special order, ships in 7-14 days |
| 14 | 12640624 | Ferrari Plain Washer 6mm - 12640624 | $0.31 | Available, ships in 3-6 days |
| 15 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 16 | 881861 | Ferrari Rear Lid Bracket - 881861 | $39.31 | Special order, ships in 7-14 days |
| 17 | 13577778 | Ferrari Washer - 13577778 | $0.57 | Special order, ships in 7-14 days |
| 18 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 19 | 936581 | Ferrari M6x18 Screw With Captive Washer - 936581 | $1.34 | Special order, ships in 7-14 days |
