Ferrari 296 GTB — [VEHICLE TRIM] - E.37 - REAR LID LOCK (diagram 0138)
Exploded view of the [vehicle trim] - e.37 - rear lid lock on the Ferrari 296 GTB, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

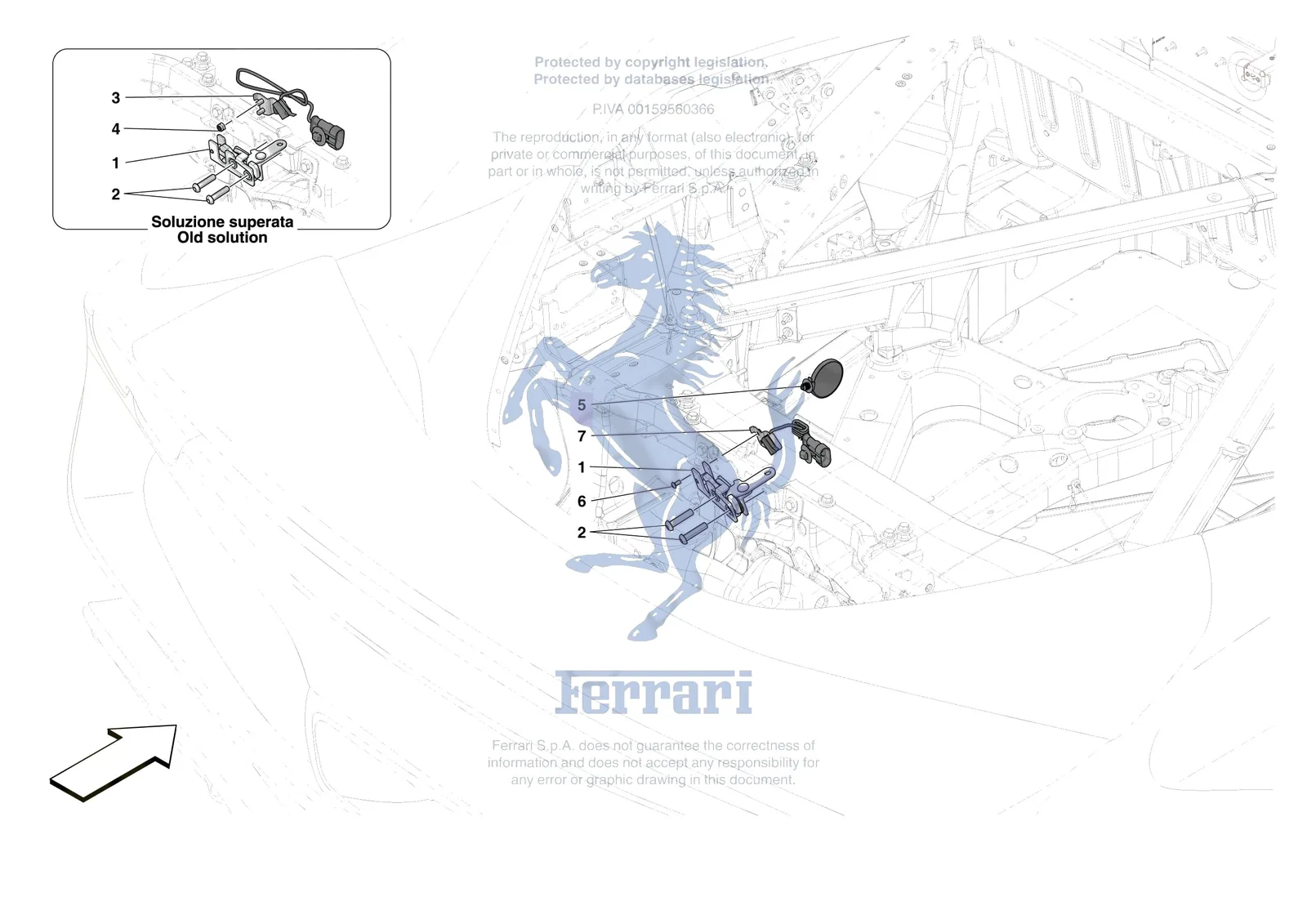

![Ferrari 296 GTB [VEHICLE TRIM] - E.37 - REAR LID LOCK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0138.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 818810 | Ferrari Serratura Traspar. Cofano M - 818810 | $295.03 | Special order, ships in 7-14 days |
| 2 | 872855 | Ferrari Vite M6X25 Tbei A Eslok - 872855 | $2.82 | Special order, ships in 7-14 days |
| 3 | 845945 | Ferrari Compl. Engine Lock Closure Ap M - 845945 | Price on request | Contact us for price and availability |
| 4 | 113647 | Ferrari Nyloc Nut - 113647 | $0.52 | Available, ships in 3-6 days |
| 5 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 6 | 88822200 | Ferrari Screw 4 x 10 - 88822200 | $1.30 | Special order, ships in 7-14 days |
| 6 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 7 | 952394 | Ferrari Compl. Engine Cover Lock Closure Ap Microswitch - 952394 | $206.52 | Special order, ships in 7-14 days |
