Ferrari 296 GTB — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)

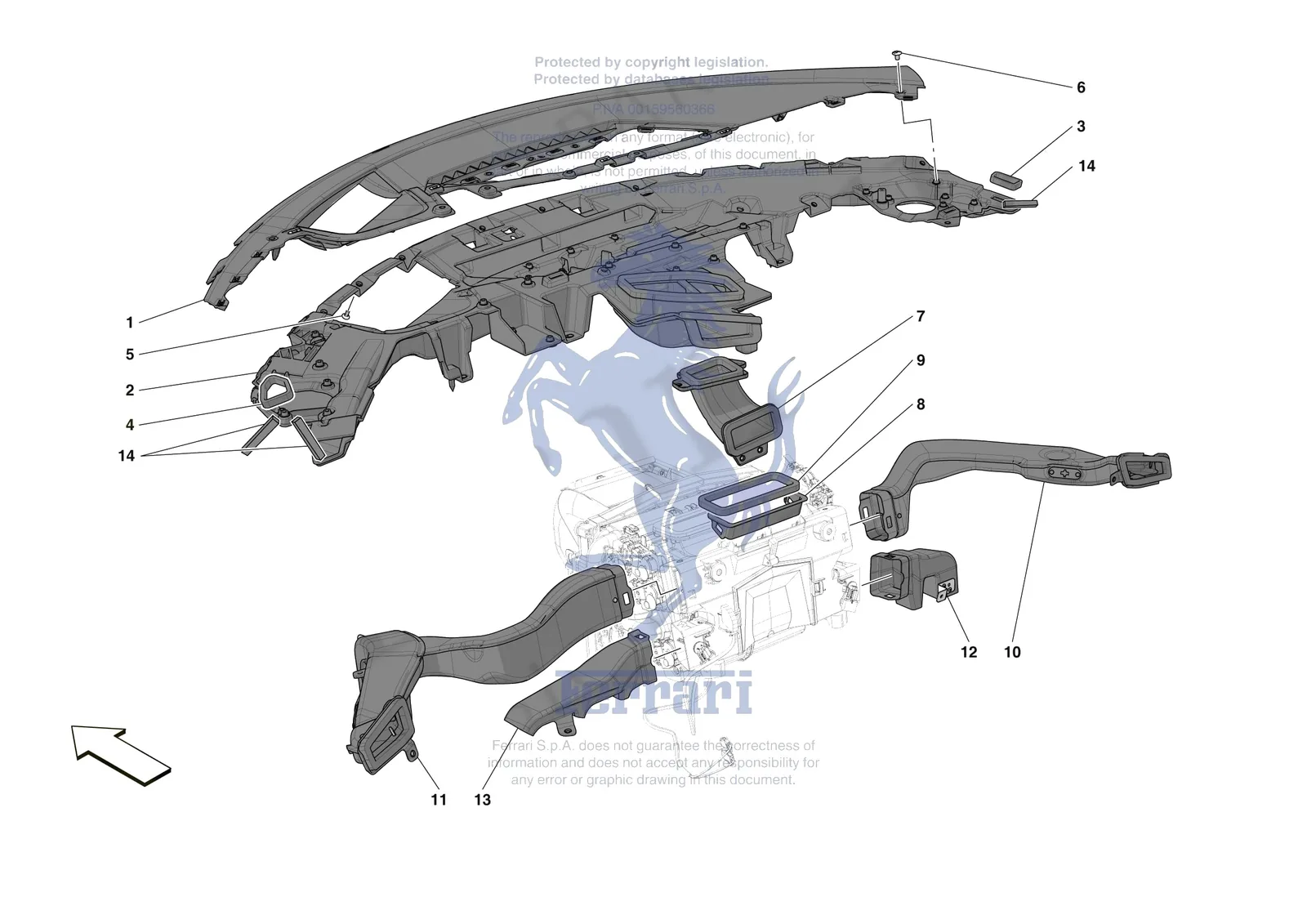

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari 296 GTB, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0153.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 55036604 | Ferrari Compl. Defroster Surround - 55036604 | $1,327.73 | Special order, ships in 7-14 days |
| 1 | 55036605 | Ferrari Compl. Defroster Surround - 55036605 | $1,327.73 | Special order, ships in 7-14 days |
| 1 | 70007708 | Ferrari COMPL. DEFROSTER SURROUND - 70007708 | Price on request | Contact us for price and availability |
| 1 | 70007709 | Ferrari COMPL. DEFROSTER SURROUND - 70007709 | Price on request | Contact us for price and availability |
| 1 | 743693 | Ferrari COMPL. DEFROSTER SURROUND - 743693 | Price on request | Contact us for price and availability |
| 1 | 747889 | Ferrari Compl. Defroster Surround - 747889 | $10,430.03 | Contact us to order |
| 1 | 916121 | Ferrari Compl. Defroster Surround - 916121 | $10,661.87 | Contact us to order |
| 1 | 916126 | Ferrari Compl. Defroster Surround - 916126 | Superseded | Order 55036605 instead |
| 1 | 970365 | Ferrari Compl. Defroster Surround - 970365 | Superseded | Order 55036604 instead |
| 2 | 970313 | Ferrari Compl. Defroster Surround Su - 970313 | $1,721.15 | Special order, ships in 7-14 days |
| 3 | 970331 | Ferrari Demister Gasket On RH Top Co - 970331 | $2.59 | Special order, ships in 7-14 days |
| 4 | 970175 | Ferrari Demister Gasket On LH Top Co - 970175 | $3.26 | Special order, ships in 7-14 days |
| 5 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 6 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 7 | 970254 | Ferrari Compl. Centre Underdash Duct - 970254 | $110.61 | Special order, ships in 7-14 days |
| 8 | 805508 | Ferrari Centre HVAC/Ventilation Connector - 805508 | $14.97 | Special order, ships in 7-14 days |
| 9 | 805509 | Ferrari Guarnizione Raccordohvac - 805509 | $15.93 | Special order, ships in 7-14 days |
| 10 | 970273 | Ferrari Compl. RH Air Duct - 970273 | $295.03 | Special order, ships in 7-14 days |
| 11 | 970362 | Ferrari Compl. LH Air Duct - 970362 | $368.79 | Special order, ships in 7-14 days |
| 12 | 741530 | Ferrari Passenger Footwell Duct - 741530 | $125.37 | Special order, ships in 7-14 days |
| 13 | 805432 | Ferrari Condotto Aria Piedi Guidator - 805432 | $88.49 | Special order, ships in 7-14 days |
| 14 | 944063 | Ferrari Rubber Shim - 944063 | $3.91 | Special order, ships in 7-14 days |
