Ferrari 296 GTB — [VEHICLE TRIM] - E.47.07 - DASHBOARD - GLOVE COMPARTMENT (diagram 0155)

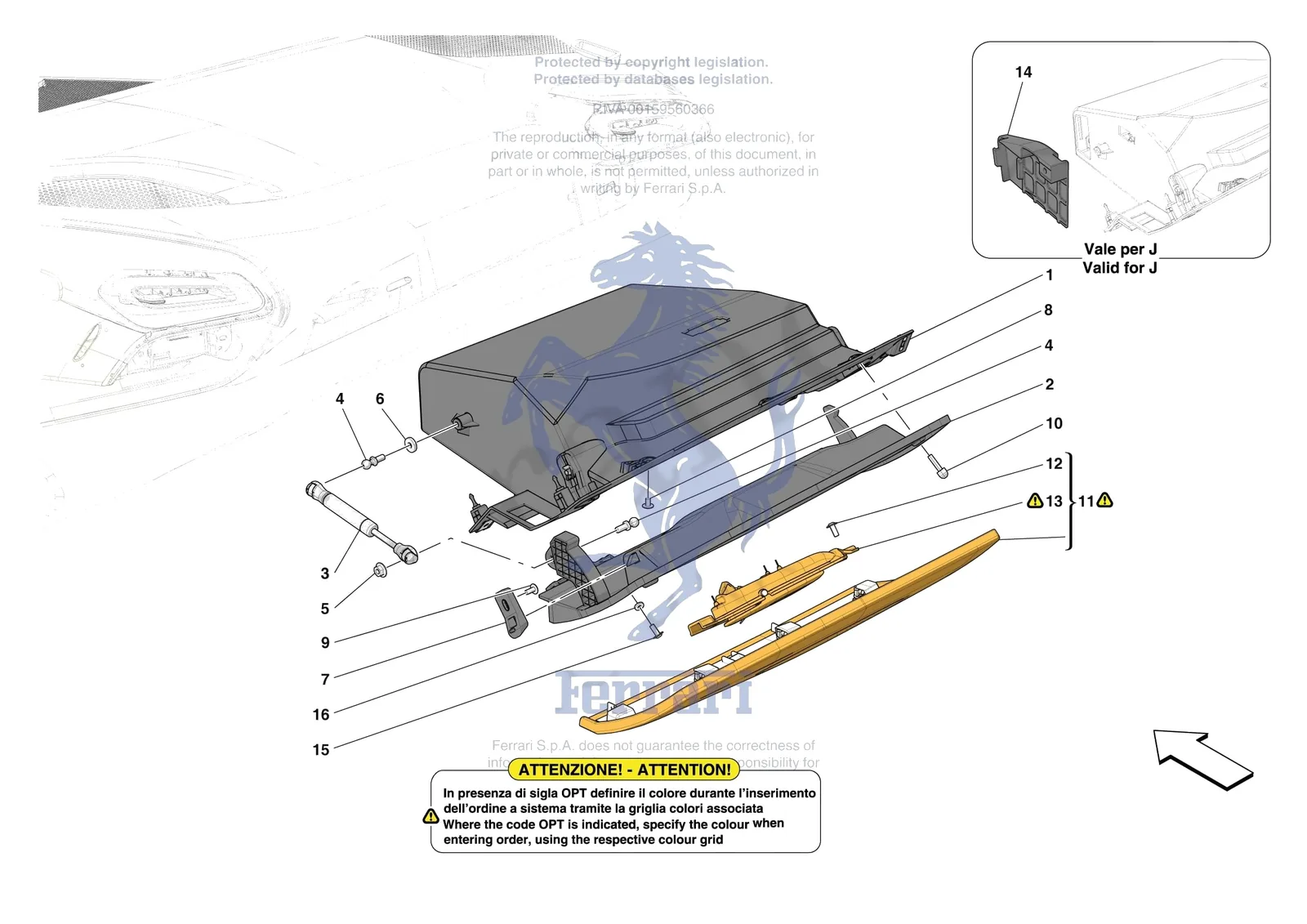

Exploded view of the [vehicle trim] - e.47.07 - dashboard - glove compartment on the Ferrari 296 GTB, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.47.07 - DASHBOARD - GLOVE COMPARTMENT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0155.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 841322 | Ferrari Compl. Glove Compartment - 841322 | $491.74 | Special order, ships in 7-14 days |
| 1 | 846606 | Ferrari Compl. Glove Compartment - 846606 | $614.67 | Special order, ships in 7-14 days |
| 1 | 847836 | Ferrari Compl. Glove Compartment - 847836 | $491.74 | Special order, ships in 7-14 days |
| 1 | 867834 | Ferrari Compl. Glove Compartment - 867834 | $614.67 | Special order, ships in 7-14 days |
| 2 | 778574 | Ferrari Compl. Glove Compartment Doo - 778574 | $442.56 | Special order, ships in 7-14 days |
| 2 | 970246 | Ferrari Compl. Glove Compartment Doo - 970246 | $491.74 | Special order, ships in 7-14 days |
| 3 | 982860 | Ferrari Glove Compartment Stabilus - 982860 | $89.58 | Special order, ships in 7-14 days |
| 4 | 864966 | Ferrari Ball Joint - 864966 | $8.82 | Special order, ships in 7-14 days |
| 5 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 6 | 12647878 | Ferrari Washer - 12647878 | $5.65 | Special order, ships in 7-14 days |
| 7 | 89257000 | Ferrari Lock Striker - 89257000 | $56.52 | Special order, ships in 7-14 days |
| 8 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 9 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 10 | 65361300 | Ferrari Pin - 65361300 | Superseded | Order 80810100 instead |
| 10 | 80810100 | Ferrari Rubber - 80810100 | $58.98 | Available, ships in 3-6 days |
| 11 | 778657 | Ferrari Compl. Glove Compartment Doo - 778657 | $4,297.04 | Special order, ships in 7-14 days |
| 11 | 781880 | Ferrari Compl. Glove Compartment Doo - 781880 | $3,891.93 | Special order, ships in 7-14 days |
| 11 | 832025 | Ferrari Compl. Glove Compartment Doo - 832025 | $4,226.80 | Special order, ships in 7-14 days |
| 11 | 970153 | Ferrari Compl. Glove Compartment Doo - 970153 | $4,306.42 | Special order, ships in 7-14 days |
| 11 | 816854 | Ferrari COMPL. GLOVE COMPARTMENT DOOR - 816854 | Price on request | Contact us for price and availability |
| 11 | 832033 | Ferrari COMPL. GLOVE COMPARTMENT DOOR - 832033 | $4,268.95 | Special order, ships in 7-14 days |
| 13 | 778580 | Ferrari Glove Box Compartment Lid Ha - 778580 | $319.62 | Special order, ships in 7-14 days |
| 13 | 970242 | Ferrari Glove Box Compartment Lid Ha - 970242 | $319.62 | Special order, ships in 7-14 days |
| 14 | 867876 | Ferrari Card Reader Mount - 867876 | $211.43 | Special order, ships in 7-14 days |
| 14 | 971900 | Ferrari Card Reader Mount - 971900 | $211.43 | Special order, ships in 7-14 days |
| 15 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 16 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
