Ferrari 296 GTB — [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS (diagram 0157)

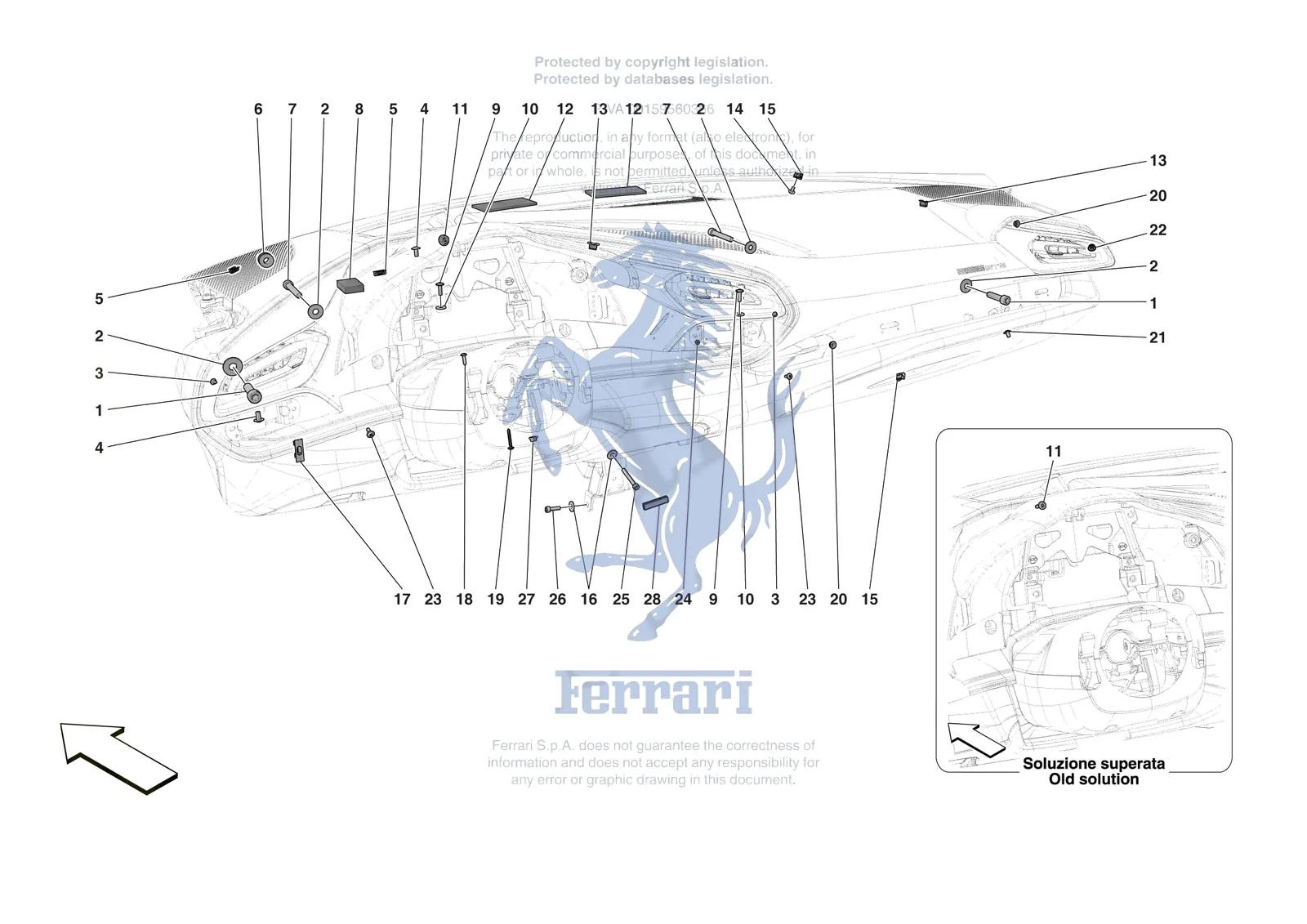

Exploded view of the [vehicle trim] - e.47.09 - dashboard - fasteners on the Ferrari 296 GTB, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0157.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 88958200 | Ferrari Screw M3 x 6 - 88958200 | Superseded | Order 811421 instead | |
| 1 | 898398 | Ferrari Screw - 898398 | $11.77 | Special order, ships in 7-14 days |
| 2 | 12626221 | Ferrari Washer - 12626221 | Superseded | Order 12626224 instead |
| 2 | 12626224 | Ferrari Washer - 12626224 | $0.38 | Available, ships in 3-6 days |
| 3 | 811421 | Ferrari Screw M3 x 6 - 811421 | $0.82 | Special order, ships in 7-14 days |
| 4 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 5 | 835458 | Ferrari Raymond Clip - 835458 | $0.82 | Special order, ships in 7-14 days |
| 6 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 7 | 898133 | Ferrari Allen Head Bolt M10X1.25X 75 Esloc - 898133 | $13.53 | Special order, ships in 7-14 days |
| 8 | 827520 | Ferrari Dashboard Mounting Spacer - 827520 | $2.59 | Special order, ships in 7-14 days |
| 9 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 10 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
| 11 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 11 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 11 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 12 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
| 13 | 967402 | Ferrari Metal Clip 46 X 18 - 967402 | $6.96 | Special order, ships in 7-14 days |
| 14 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 15 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 16 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 17 | 68700200 | Ferrari Fixing Clip - 68700200 | $10.68 | Special order, ships in 7-14 days |
| 18 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 18 | 15688801 | Ferrari Screw M3.5 x 13 - 15688801 | Superseded | Order 63343400 instead |
| 19 | 15689201 | Ferrari Screw M3.5 x 25 - 15689201 | $1.92 | Available, ships in 3-6 days |
| 20 | 14058311 | Ferrari Flanged Nut M5 x 5 - 14058311 | $0.46 | Available, ships in 3-6 days |
| 20 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 21 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 23 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 23 | 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days |
| 24 | 16101777 | Ferrari Nut - 16101777 | $0.31 | Available, ships in 3-6 days |
| 25 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 25 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 26 | 14305324 | Ferrari Screw M6 x 20mm - 14305324 | $0.17 | Available, ships in 3-6 days |
| 28 | 67681200 | Ferrari GASKET - 67681200 | $5.86 | Special order, ships in 7-14 days |
