Ferrari 296 GTB — [VEHICLE TRIM] - E.48 - CENTRE TUNNEL AND CONSOLE (diagram 0158)
Exploded view of the [vehicle trim] - e.48 - centre tunnel and console on the Ferrari 296 GTB, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

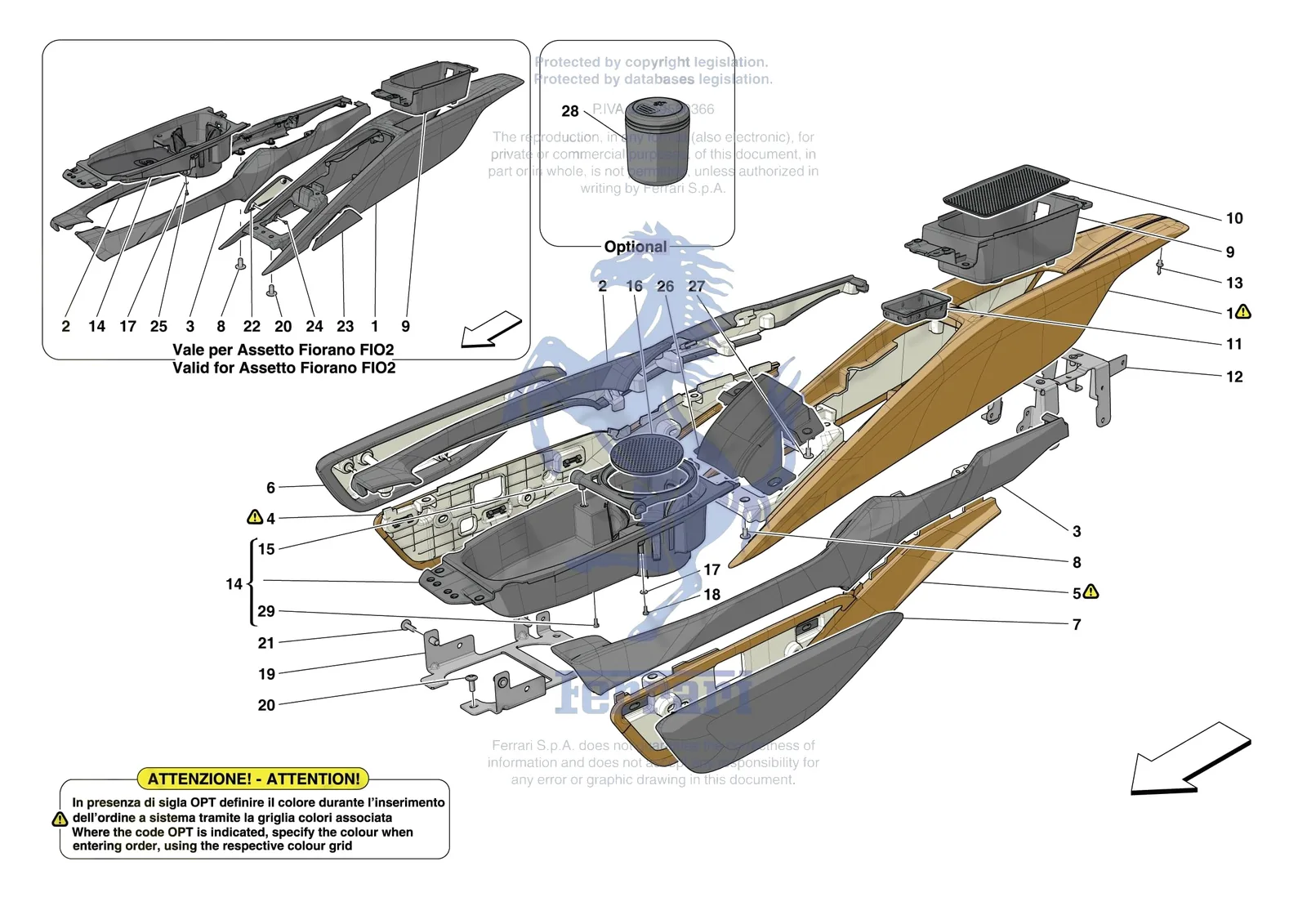

![Ferrari 296 GTB [VEHICLE TRIM] - E.48 - CENTRE TUNNEL AND CONSOLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0158.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15642501 | Ferrari Screw - 15642501 | Superseded | Order 15902601 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 2 | 947670 | Ferrari Compl. RH Upper Front Centre - 947670 | $1,180.21 | Special order, ships in 7-14 days |
| 3 | 947671 | Ferrari Compl. LH Upper Front Centre - 947671 | $1,180.21 | Special order, ships in 7-14 days |
| 4 | 947672 | Ferrari Compl. RH Lower Front Centre - 947672 | $737.61 | Special order, ships in 7-14 days |
| 5 | 947673 | Ferrari Compl. LH Lower Front Centre - 947673 | $737.61 | Special order, ships in 7-14 days |
| 6 | 947674 | Ferrari Compl. RH Cushion - 947674 | $688.45 | Special order, ships in 7-14 days |
| 7 | 947676 | Ferrari Compl. LH Cushion - 947676 | $688.45 | Special order, ships in 7-14 days |
| 20 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 22 | 947679 | Ferrari Compl. RH Fixing Plate - 947679 | $614.67 | Special order, ships in 7-14 days |
| 23 | 947680 | Ferrari Compl. LH Fixing Plate - 947680 | $614.67 | Special order, ships in 7-14 days |
| 24 | 15902601 | Ferrari Screw - 15902601 | $0.12 | Special order, ships in 7-14 days |
