Ferrari 296 GTB — [VEHICLE TRIM] - E.51.01 - FRONT SEATS - SEATS AND GUIDES (diagram 0161)

Exploded view of the [vehicle trim] - e.51.01 - front seats - seats and guides on the Ferrari 296 GTB, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

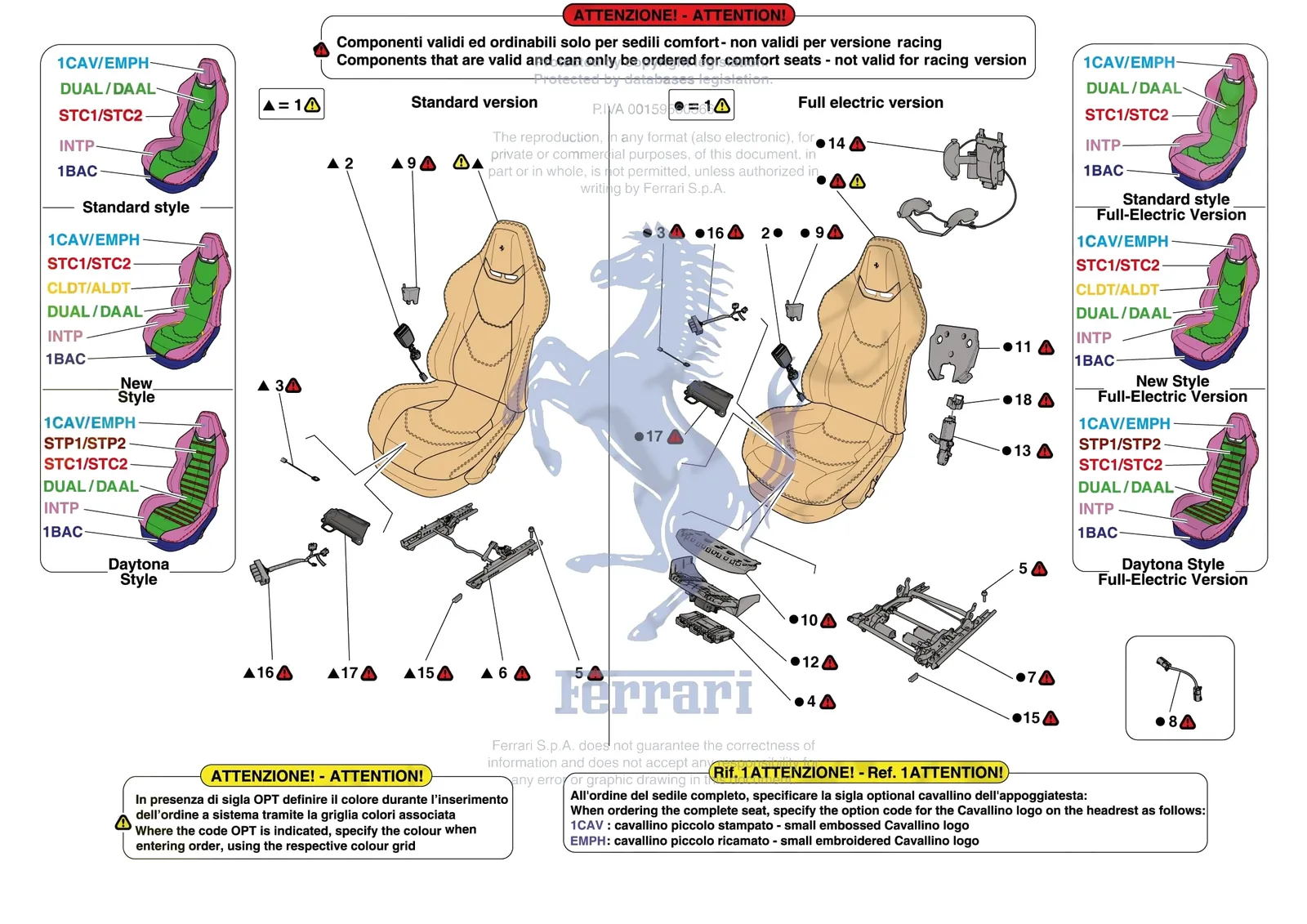

Ferrari 296 GTB [VEHICLE TRIM] - E.51.01 - FRONT SEATS - SEATS AND GUIDES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
824862Ferrari Sbr Mounting Plate - 824862SupersededOrder 872360 instead
824863Ferrari Sbr Mounting Plate - 824863$88.61Special order, ships in 7-14 days
1766564Ferrari Compl. LH Seat - 766564$47,309.02Contact us to order
1766606Ferrari Compl. LH Seat - 766606$41,683.39Contact us to order
1766607Ferrari Compl. LH Seat - 766607$42,208.43Contact us to order
1767024Ferrari Compl. LH Seat - 767024$44,154.50Contact us to order
1767130Ferrari Compl. LH Seat - 767130$55,631.39Contact us to order
1767180Ferrari COMPL. LH SEAT - 767180$43,541.57Contact us to order
1767182Ferrari Compl. LH Seat - 767182$46,892.47Contact us to order
1767184Ferrari COMPL. LH SEAT - 767184Price on requestContact us to order
1767185Ferrari Compl. LH Seat - 767185$46,892.47Contact us to order
1851404Ferrari COMPL. LH SEAT - 851404Price on requestContact us to order
1851406Ferrari COMPL. LH SEAT - 851406Price on requestContact us to order
1851418Ferrari COMPL. LH SEAT - 851418Price on requestContact us to order
1851419Ferrari COMPL. LH SEAT - 851419Price on requestContact us to order
1851426Ferrari COMPL. LH SEAT - 851426Price on requestContact us to order
1766619Ferrari Compl. RH Seat - 766619$42,208.43Contact us to order
1766678Ferrari Compl. RH Seat - 766678$41,977.88Contact us to order
1766682Ferrari Compl. RH Seat - 766682$44,154.50Contact us to order
1766810Ferrari Compl. RH Seat - 766810$46,892.47Contact us to order
1766826Ferrari Compl. RH Seat - 766826$44,154.50Contact us to order
1767099Ferrari Compl. RH Seat - 767099$55,631.39Contact us to order
1767129Ferrari COMPL. RH SEAT - 767129Price on requestContact us to order
1767186Ferrari COMPL. RH SEAT - 767186Price on requestContact us to order
1767187Ferrari Compl. RH Seat - 767187$47,309.02Contact us to order
1851417Ferrari COMPL. RH SEAT - 851417Price on requestContact us to order
1851422Ferrari COMPL. RH SEAT - 851422Price on requestContact us to order
1851423Ferrari COMPL. RH SEAT - 851423Price on requestContact us to order
1851424Ferrari COMPL. RH SEAT - 851424Price on requestContact us to order
1851427Ferrari COMPL. RH SEAT - 851427Price on requestContact us to order
1851403Ferrari LH Seat - 851403$42,208.43Contact us to order
1851420Ferrari LH Seat - 851420$42,208.43Contact us to order
1851421Ferrari LH Seat - 851421$42,208.43Contact us to order
1851428Ferrari LH Seat - 851428$42,208.43Contact us to order
1851402Ferrari RH Seat - 851402$42,208.43Contact us to order
1851408Ferrari RH Seat - 851408$42,208.43Contact us to order
1851425Ferrari RH Seat - 851425$42,208.43Contact us to order
1851429Ferrari RH Seat - 851429$42,208.43Contact us to order
2917519Ferrari Buckle Section - 917519$368.79Special order, ships in 7-14 days
2917520Ferrari Buckle Section - 917520$368.79Special order, ships in 7-14 days
3776805Ferrari SBR SENSOR - 776805$43.68Special order, ships in 7-14 days
3776808Ferrari SBR SENSOR - 776808$43.68Special order, ships in 7-14 days
3873751Ferrari Sbr Sensor - 873751$43.68Special order, ships in 7-14 days
4773883Ferrari Nag/Nap Ecu - 773883$1,967.03Special order, ships in 7-14 days
4773890Ferrari Nag/Nap Ecu - 773890$1,967.03Special order, ships in 7-14 days
582140000Ferrari SCREW - 82140000$6.54Available, ships in 3-6 days
6773891Ferrari Under Base Element - 773891$6,783.96Special order, ships in 7-14 days
6773892Ferrari Under Base Element - 773892$6,783.96Special order, ships in 7-14 days
7824833Ferrari UNDER BASE ELEMENT - 824833$8,228.82Special order, ships in 7-14 days
8824834Ferrari Wiring Harness - 824834$344.21Special order, ships in 7-14 days
9826972Ferrari INHIBITOR KILLER MICROSWITCH - 826972$110.61Special order, ships in 7-14 days
10826966Ferrari MOBILE NASETTO PLATE - 826966$130.29Special order, ships in 7-14 days
11826963Ferrari LUMBAR SUPPORT - 826963$130.29Special order, ships in 7-14 days
12826964Ferrari NASETTO MECHANISM/ECU SHIELD - 826964$2,060.69Special order, ships in 7-14 days
13897774Ferrari ADJUSTMENT MOTOR - 897774$442.56Special order, ships in 7-14 days
14826950Ferrari LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT - 826950$2,060.69Special order, ships in 7-14 days
15773898Ferrari Guide Rail Travel Limiter - 773898$184.38Special order, ships in 7-14 days
15773900Ferrari Guide Rail Travel Limiter - 773900$110.61Special order, ships in 7-14 days
16824838Ferrari LH WIRING HARNESS - 824838$1,849.95Special order, ships in 7-14 days
16824839Ferrari LH Wiring Harness - 824839$1,745.74Special order, ships in 7-14 days
16824840Ferrari LH Wiring Harness - 824840$1,745.74Special order, ships in 7-14 days
16824849Ferrari LH Wiring Harness - 824849$1,745.74Special order, ships in 7-14 days
16824850Ferrari LH Wiring Harness - 824850$1,745.74Special order, ships in 7-14 days
16826938Ferrari LH Wiring Harness - 826938$663.86Special order, ships in 7-14 days
16824835Ferrari RH WIRING HARNESS - 824835$885.15Special order, ships in 7-14 days
16824836Ferrari RH Wiring Harness - 824836$1,745.74Special order, ships in 7-14 days
16824843Ferrari RH Wiring Harness - 824843$1,745.74Special order, ships in 7-14 days
16824848Ferrari RH Wiring Harness - 824848$1,745.74Special order, ships in 7-14 days
16824852Ferrari RH Wiring Harness - 824852$1,745.74Special order, ships in 7-14 days
16826940Ferrari RH Wiring Harness - 826940$663.86Special order, ships in 7-14 days
17872359Ferrari Sbr Mounting Plate - 872359$66.35Special order, ships in 7-14 days
17872360Ferrari Sbr Mounting Plate - 872360$66.35Special order, ships in 7-14 days
18897779Ferrari ADJUSTMENT MOTOR MOUNTING COLLAR - 897779$66.35Special order, ships in 7-14 days
