Ferrari 296 GTB — [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES (diagram 0165)

Exploded view of the [vehicle trim] - e.53 - other interior trim accessories on the Ferrari 296 GTB, with 59 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

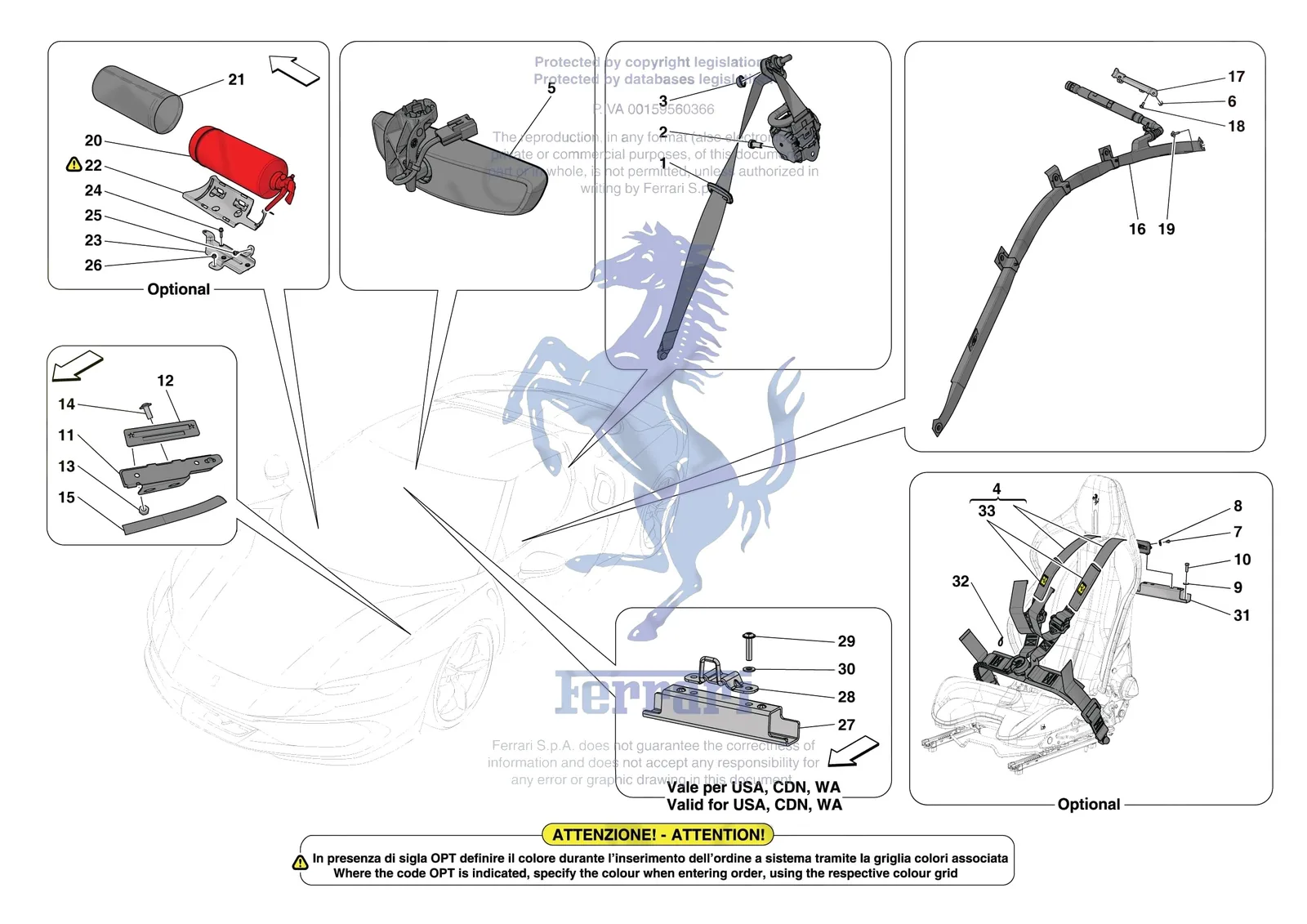

Ferrari 296 GTB [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
82654500Ferrari 2KG Fire Extinguisher - 82654500SupersededOrder 922429 instead
83490400Ferrari 2KG Fire Extinguisher - 83490400SupersededOrder 922429 instead
780208Ferrari Extinguisher Trim Kit - 780208SupersededOrder 895261 instead
780225Ferrari Extinguisher Trim Kit - 780225SupersededOrder 895256 instead
802133Ferrari Extinguisher Trim Kit - 802133SupersededOrder 895442 instead
802134Ferrari Extinguisher Trim Kit - 802134SupersededOrder 895444 instead
15642501Ferrari Screw - 15642501SupersededOrder 15902601 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
155060610Ferrari LH THREE POINT SEAT BELT - 55060610Price on requestContact us for price and availability
155060612Ferrari LH THREE POINT SEAT BELT - 55060612Price on requestContact us for price and availability
155060613Ferrari RH THREE POINT SEAT BELT - 55060613Price on requestContact us for price and availability
155060614Ferrari RH THREE POINT SEAT BELT - 55060614Price on requestContact us for price and availability
282447100Ferrari Screw - 82447100$3.68Available, ships in 3-6 days
383717300Ferrari SCREW HEAD COVER - 83717300$10.25Special order, ships in 7-14 days
4832443Ferrari Compl. LH 4-Point Seat Harne - 832443$3,236.25Special order, ships in 7-14 days
4832445Ferrari Compl. RH 4-Point Seat Harne - 832445$3,236.25Special order, ships in 7-14 days
5842213Ferrari Compl. Internal Rear View Mi - 842213$4,781.26Special order, ships in 7-14 days
5842214Ferrari Compl. Internal Rear View Mi - 842214$4,987.33Special order, ships in 7-14 days
5842215Ferrari Compl. Internal Rear View Mi - 842215$4,987.33Special order, ships in 7-14 days
5842211Ferrari Compl. Internal Rear View Mirror - 842211$3,617.68Special order, ships in 7-14 days
5842212Ferrari Compl. Internal Rear View Mirror - 842212$4,987.33Special order, ships in 7-14 days
5823949Ferrari Interior Rear View Mirror Complete - 823949$1,901.45Special order, ships in 7-14 days
5823993Ferrari Interior Rear View Mirror Complete - 823993$568.23Special order, ships in 7-14 days
5823994Ferrari Interior Rear View Mirror Complete - 823994$1,901.45Special order, ships in 7-14 days
5824000Ferrari Interior Rear View Mirror Complete - 824000$1,901.45Special order, ships in 7-14 days
5824001Ferrari Interior Rear View Mirror Complete - 824001$1,901.45Special order, ships in 7-14 days
610725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
715902601Ferrari Screw - 15902601$0.12Special order, ships in 7-14 days
814497704Ferrari Washer - 14497704$1.30Special order, ships in 7-14 days
912646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
1016043674Ferrari Screw M8 x 25 - 16043674$2.82Special order, ships in 7-14 days
11834415Ferrari Compl. Id Plate Bracket - 834415$88.49Special order, ships in 7-14 days
1310794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
1485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
16795763Ferrari LH Airbag - 795763$1,278.55Special order, ships in 7-14 days
16795765Ferrari RH Airbag - 795765$1,278.55Special order, ships in 7-14 days
17976796Ferrari LH Airbag Mounting Bracket - 976796$73.73Special order, ships in 7-14 days
17976795Ferrari RH Airbag Mounting Bracket - 976795$68.83Special order, ships in 7-14 days
1813833221Ferrari Screw - 13833221$2.82Special order, ships in 7-14 days
19918451Ferrari SCREW - 918451$1.53Special order, ships in 7-14 days
20874687Ferrari 2Kg Fire Extinguisher - 874687$2,702.34Special order, ships in 7-14 days
20922429Ferrari 2KG FIRE EXTINGUISHER - 922429$1,081.84Special order, ships in 7-14 days
22895256Ferrari Extinguisher Trim Kit - 895256$2,522.02Special order, ships in 7-14 days
22895261Ferrari Extinguisher Trim Kit - 895261$2,458.79Special order, ships in 7-14 days
22895442Ferrari Extinguisher Trim Kit - 895442$2,060.69Special order, ships in 7-14 days
22895444Ferrari Extinguisher Trim Kit - 895444$2,060.69Special order, ships in 7-14 days
23981469Ferrari Compl. Fire Extinguisher Fas - 981469$122.92Special order, ships in 7-14 days
23981598Ferrari Compl. Fire Extinguisher Fas - 981598$142.58Special order, ships in 7-14 days
24231620Ferrari/Maserati Screw - 231620$0.58In stock
2565864100Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100$2.82Available, ships in 3-6 days
2614059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
27845391Ferrari Compl. Top Tether Extruded E - 845391$233.56Special order, ships in 7-14 days
28917020Ferrari Top Tether Fastener Bracket - 917020$108.16Special order, ships in 7-14 days
29878133Ferrari Screw - 878133$34.94Special order, ships in 7-14 days
3014496527Ferrari Washer - 14496527$2.38Available, ships in 3-6 days
31812960Ferrari Dashboard Extruded Element For - 812960$236.02Special order, ships in 7-14 days
32145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
33949710Ferrari RH-LH Shoulder Cover Kit - 949710$417.97Special order, ships in 7-14 days
