Ferrari 296 GTB — [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS (diagram 0184)
Exploded view of the [electrical system] - f.09 - lighting systems on the Ferrari 296 GTB, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

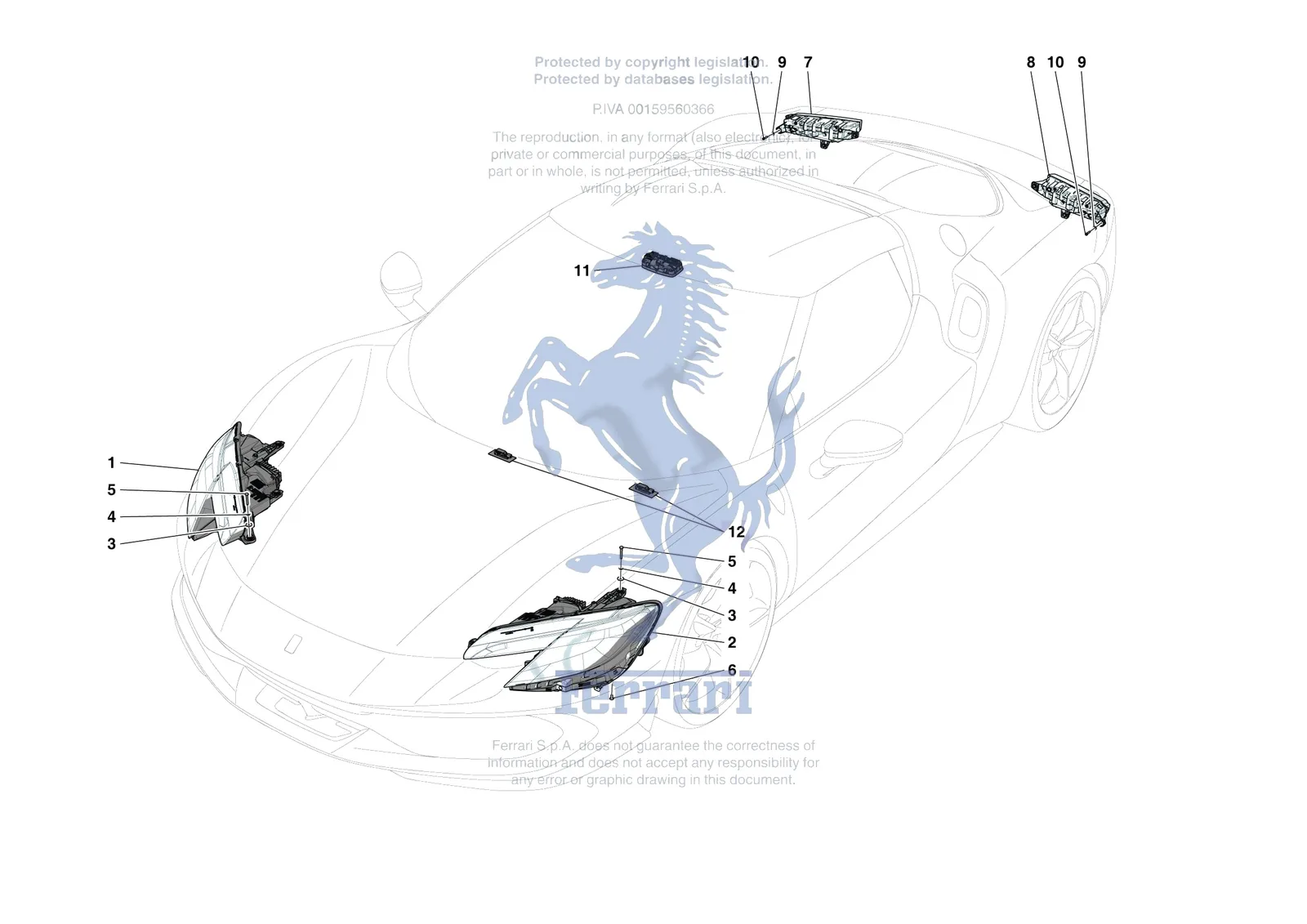

![Ferrari 296 GTB [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0184.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10903221 | Ferrari Bolt - 10903221 | Superseded | Order 10903224 instead | |
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 812845 | Ferrari RH Headlamp - 812845 | $6,598.44 | Special order, ships in 7-14 days |
| 1 | 814354 | Ferrari RH Headlamp - 814354 | $6,279.97 | Special order, ships in 7-14 days |
| 1 | 814634 | Ferrari RH Headlamp - 814634 | $6,598.44 | Special order, ships in 7-14 days |
| 1 | 814904 | Ferrari RH Headlamp - 814904 | $6,598.44 | Special order, ships in 7-14 days |
| 1 | 815661 | Ferrari RH Headlamp - 815661 | $6,279.97 | Special order, ships in 7-14 days |
| 1 | 981633 | Ferrari RH Headlamp - 981633 | $5,976.06 | Special order, ships in 7-14 days |
| 2 | 812842 | Ferrari LH Headlamp - 812842 | $6,598.44 | Special order, ships in 7-14 days |
| 2 | 814346 | Ferrari LH Headlamp - 814346 | $6,279.97 | Special order, ships in 7-14 days |
| 2 | 814650 | Ferrari LH Headlamp - 814650 | $6,598.44 | Special order, ships in 7-14 days |
| 2 | 814903 | Ferrari LH Headlamp - 814903 | $6,598.44 | Special order, ships in 7-14 days |
| 2 | 815604 | Ferrari LH Headlamp - 815604 | $6,279.97 | Special order, ships in 7-14 days |
| 2 | 981614 | Ferrari LH Headlamp - 981614 | $5,976.06 | Special order, ships in 7-14 days |
| 3 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 4 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 5 | 10903224 | Ferrari Screw M6 x 40 - 10903224 | $0.50 | Available, ships in 3-6 days |
| 6 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 7 | 814951 | Ferrari RH Tail Light - 814951 | $1,682.89 | Special order, ships in 7-14 days |
| 7 | 960504 | Ferrari RH Tail Light - 960504 | $1,551.75 | Special order, ships in 7-14 days |
| 8 | 814953 | Ferrari LH Tail Light - 814953 | $1,682.89 | Special order, ships in 7-14 days |
| 8 | 960506 | Ferrari LH Tail Light - 960506 | $1,551.75 | Special order, ships in 7-14 days |
| 9 | 12646624 | Ferrari Washer 6.15-15x1.5 - 12646624 | $0.40 | Available, ships in 3-6 days |
| 10 | 14305534 | Ferrari Screw 6X30 - 14305534 | $4.56 | Special order, ships in 7-14 days |
| 11 | 744262 | Ferrari Plafoniera Padiglione - 744262 | $1,770.31 | Special order, ships in 7-14 days |
| 12 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
