Ferrari 296 GTB — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari 296 GTB, with 71 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

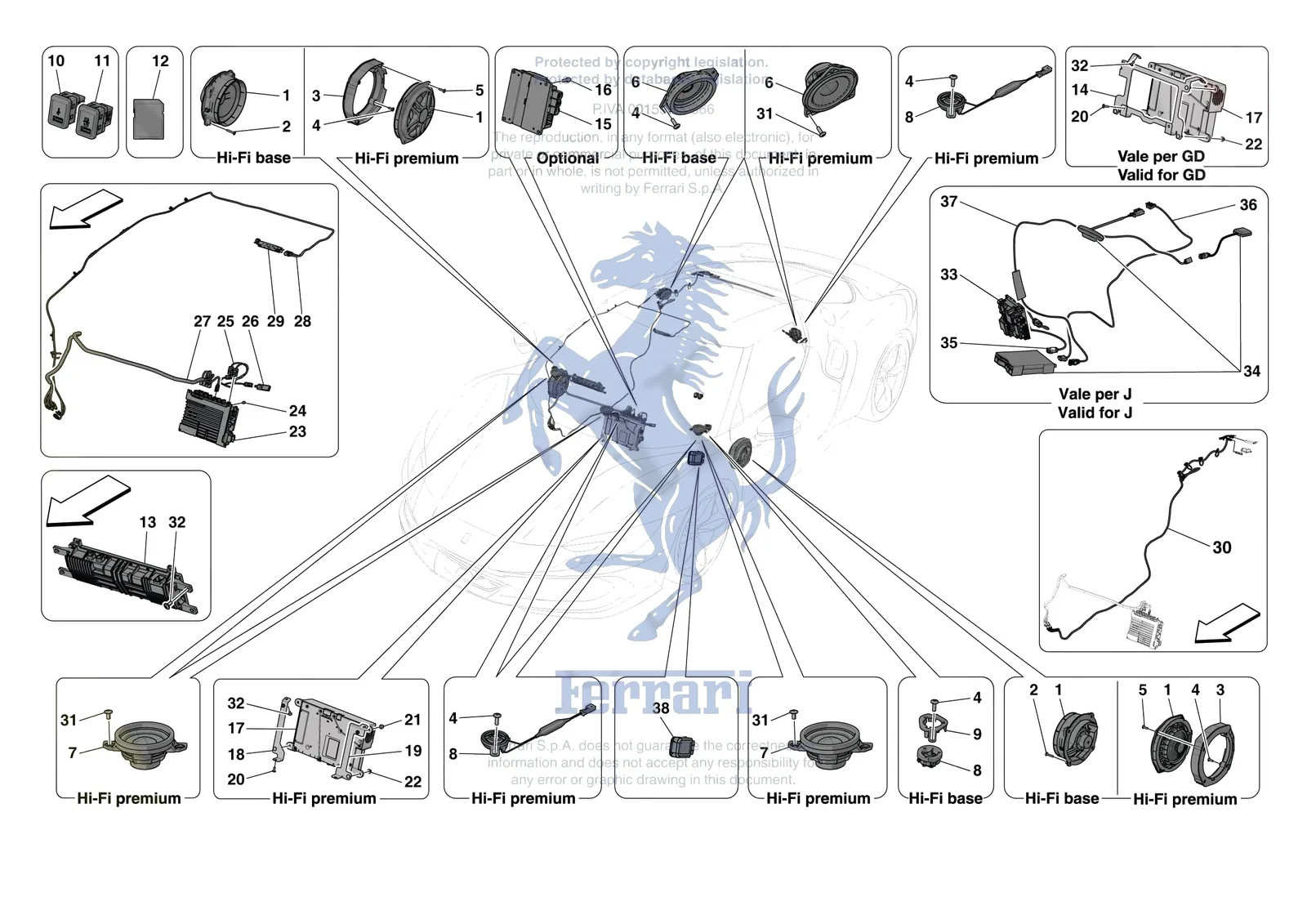

Ferrari 296 GTB [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
14303324Ferrari/Maserati Screw - 14303324$0.29In stock
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
285834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
3260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
3260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
585692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
6269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
6321880Ferrari Twiddler - 321880$327.81Special order, ships in 7-14 days
7321889Ferrari Speaker - 321889$305.96Special order, ships in 7-14 days
8251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
8321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
988202500Ferrari Tweeter Support - 88202500$4.39Special order, ships in 7-14 days
10303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
11848476Ferrari Presa Usb Smartphone Project - 848476$211.43Special order, ships in 7-14 days
1270006011Ferrari Sd Card Navigation Maps - 70006011$1,256.70Special order, ships in 7-14 days
13866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
14778658Ferrari Compl. Amplifier Bracket - 778658$189.31Special order, ships in 7-14 days
15875005Ferrari USB Splitter - Apple Car Play Version - 875005$1,598.19Contact us to order
1614303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
17936132Ferrari 12-Channel Amplifier - 936132$8,097.68Special order, ships in 7-14 days
18970218Ferrari Compl. RH Amplifier Bracket - 970218$46.69Special order, ships in 7-14 days
19970226Ferrari Compl. LH Amplifier Bracket - 970226$46.69Special order, ships in 7-14 days
2085833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
2116296927Ferrari Screw - 16296927$0.98Available, ships in 3-6 days
2214059221Ferrari Nut - 14059221$1.04Special order, ships in 7-14 days
23770644Ferrari Nit - 770644SupersededOrder 870214 instead
23779086Ferrari Nit - 779086$15,239.95Contact us to order
23779088Ferrari Nit - 779088$15,602.91Contact us to order
23779089Ferrari Nit - 779089$17,038.40Contact us to order
23870202Ferrari Nit - 870202$15,743.41Contact us to order
23870211Ferrari Nit - 870211$17,602.74Contact us to order
23870213Ferrari Nit - 870213$14,965.95Contact us to order
23870214Ferrari Nit - 870214$15,743.41Contact us to order
23870215Ferrari Nit - 870215$15,743.41Contact us to order
23870216Ferrari Nit - 870216$15,743.41Contact us to order
23965605Ferrari Nit - 965605SupersededOrder 870202 instead
23779091Ferrari Nit Imx6 Liv. D2 Nar W/O M - 779091$17,347.49Contact us to order
2414304124Ferrari Screw TCEI M5 x 12 - 14304124$0.31Special order, ships in 7-14 days
25768959Ferrari Compl. Wifi-Bt Cable - 768959$228.64Special order, ships in 7-14 days
26843076Ferrari Antenna Bt-Wifi Dual Band - 843076$85.22Special order, ships in 7-14 days
27818640Ferrari Dashboard Antenna Cable - 818640$713.04Special order, ships in 7-14 days
27839110Ferrari Dashboard Antenna Cable - 839110$467.15Special order, ships in 7-14 days
27905715Ferrari Dashboard Antenna Cable - 905715$663.86Special order, ships in 7-14 days
27951192Ferrari Dashboard Antenna Cable - 951192$614.67Special order, ships in 7-14 days
28765977Ferrari Fm2 Amplifier Cable - 765977$199.14Special order, ships in 7-14 days
28839109Ferrari Fm2 Amplifier Cable - 839109$236.02Special order, ships in 7-14 days
28746395Ferrari Fm2-Dab2 Antenna Cable - 746395$344.21Special order, ships in 7-14 days
28804700Ferrari Fm2/Dab Antenna Cable - 804700$737.61Special order, ships in 7-14 days
28951193Ferrari Fm2/Dab Antenna Cable - 951193$319.62Special order, ships in 7-14 days
29771350Ferrari Fm2/Dab Amplifier - 771350$344.21Special order, ships in 7-14 days
29771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
29771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
30905713Ferrari Passenger Compartment Antenn - 905713$663.86Special order, ships in 7-14 days
3185692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
3285692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
33951766Ferrari 4-Way Usb Hub For Dsrc Jrc - 951766$1,598.19Special order, ships in 7-14 days
34928349Ferrari Compl. Drsc-Vics Kit - 928349$14,542.12Special order, ships in 7-14 days
35928354Ferrari Dsrc/Hub Cable - 928354$130.29Special order, ships in 7-14 days
36958191Ferrari Dsrc 5.8Ghz Advance Antenna - 958191$181.93Special order, ships in 7-14 days
37958192Ferrari Dsrc Beacon Antenna Cable - 958192$66.35Special order, ships in 7-14 days
38951166Ferrari Dongle - 951166SupersededOrder 951168 instead
38951167Ferrari Dongle - 951167$2,060.69Special order, ships in 7-14 days
38951168Ferrari MYFERRARI CONNECT ECU - 951168$1,920.19Special order, ships in 7-14 days
38951169Ferrari MYFERRARI CONNECT ECU - 951169$2,060.69Special order, ships in 7-14 days
