Ferrari 296 GTB — [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES (diagram 0189)

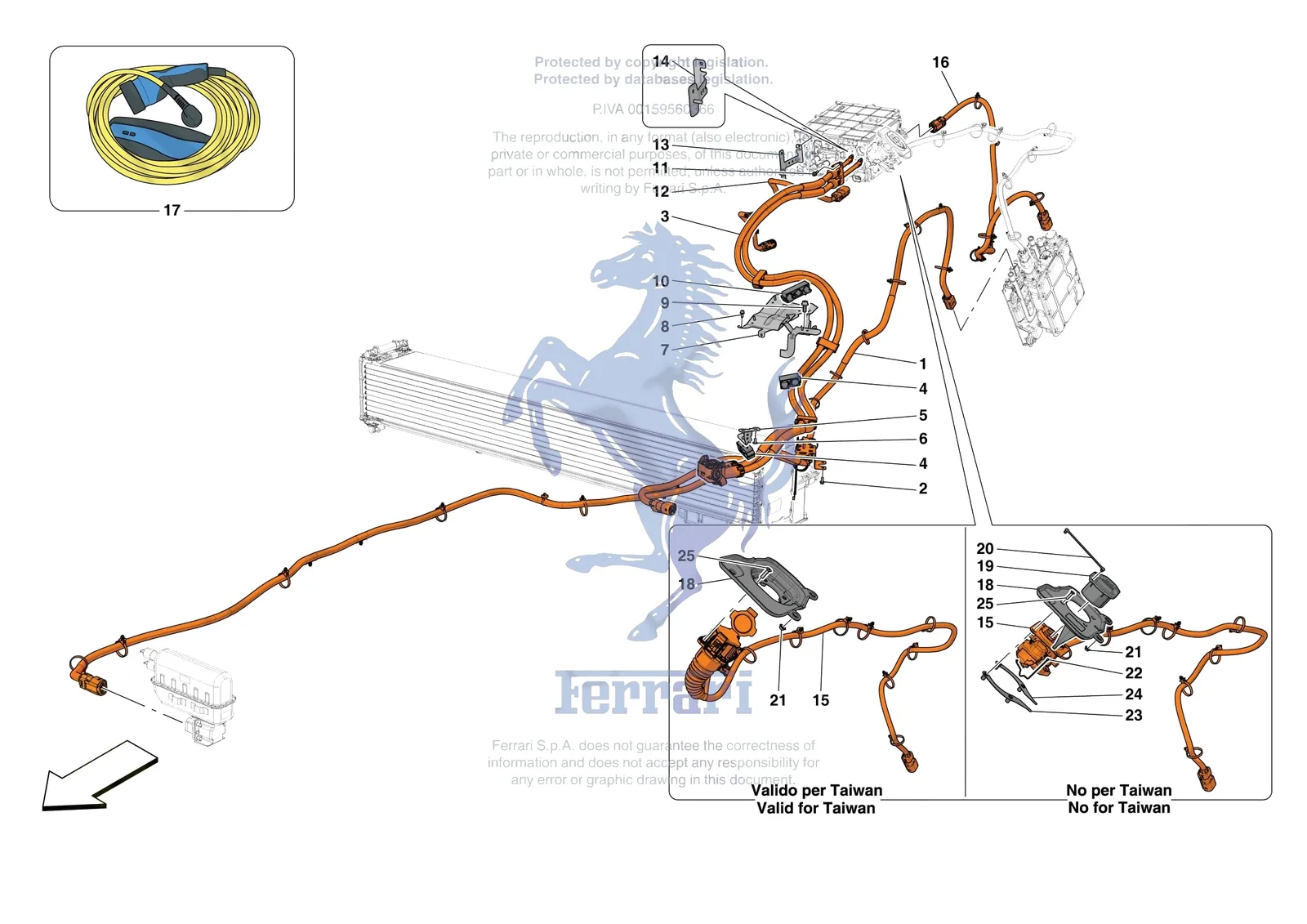

Exploded view of the [electrical system] - f.14 - high voltage wiring harnesses on the Ferrari 296 GTB, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
917256Ferrari Gogna 2 Vani Con Rinforzo Cn - 917256SupersededOrder 961295 instead
14440827Ferrari Screw (ferrari) - 14440827Price on requestContact us for price and availability
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
14440834Ferrari/Maserati Screw - 14440834$1.10In stock
1832663Ferrari Y Node - 832663$1,967.03Special order, ships in 7-14 days
216281824Ferrari Screw - 16281824$0.82Available, ships in 3-6 days
3985085Ferrari Hvc6 Hvb-P2 Inverter Cable - 985085$1,873.35Special order, ships in 7-14 days
4961295Ferrari Gogna 2 Vani Con Rinforzo Cn - 961295$10.91Special order, ships in 7-14 days
5791886Ferrari Hvc6 Cable On Hvb - 791886$41.76Special order, ships in 7-14 days
685692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
7798500Ferrari Hvc6-Hvc7 Bracket On Transmi - 798500$245.85Special order, ships in 7-14 days
8323665Ferrari Allen Head Bolt with Washer M6X14 - 323665$0.63Special order, ships in 7-14 days
982140000Ferrari SCREW - 82140000$6.54Available, ships in 3-6 days
10961316Ferrari Clip - 961316$14.84Available, ships in 3-6 days
11323668Ferrari Screw - 323668$0.65Special order, ships in 7-14 days
12742156Ferrari Cavo Hvc9 Inv.P2-Compressore - 742156$688.45Special order, ships in 7-14 days
13791897Ferrari Bracket Fastening Hvc7 Onto - 791897$44.24Special order, ships in 7-14 days
14791896Ferrari Bracket Fastening Hvc6 Onto - 791896$39.31Special order, ships in 7-14 days
15833307Ferrari Hvc10 Obc-Charge Socket Cabl - 833307$1,696.56Special order, ships in 7-14 days
15833308Ferrari Hvc10 Obc-Charge Socket Cabl - 833308$1,896.77Special order, ships in 7-14 days
15832666Ferrari HVC10 OBC-Charge Socket Cable - 832666$1,770.31Special order, ships in 7-14 days
16742150Ferrari HVC8 OBC-P2 Inverter Cable - 742150$835.97Special order, ships in 7-14 days
17811457Ferrari HVB Battery Charger - 811457$1,147.41Special order, ships in 7-14 days
17830475Ferrari HVB Battery Charger - 830475$1,873.35Special order, ships in 7-14 days
17879949Ferrari HVB Battery Charger - 879949$1,049.07Special order, ships in 7-14 days
17879950Ferrari HVB Battery Charger - 879950$1,212.98Special order, ships in 7-14 days
17879951Ferrari HVB Battery Charger - 879951$1,147.41Special order, ships in 7-14 days
17905975Ferrari HVB Battery Charger - 905975$1,606.40Special order, ships in 7-14 days
17924665Ferrari HVB Battery Charger - 924665$1,049.07Special order, ships in 7-14 days
17966429Ferrari HVB Battery Charger - 966429$1,049.07Special order, ships in 7-14 days
17966430Ferrari HVB Battery Charger - 966430$1,212.98Special order, ships in 7-14 days
17924664Ferrari Mrk HVB Battery Charger - UK - 924664$1,049.07Available, ships in 3-6 days
18887230Ferrari Charging Socket Adapter - 887230$83.57Special order, ships in 7-14 days
18985249Ferrari Charging Socket Adapter - 985249$68.83Special order, ships in 7-14 days
18985251Ferrari Charging Socket Adapter - 985251$68.83Special order, ships in 7-14 days
19890449Ferrari Tappo Ferrari Presa Ric. Eur - 890449$110.61Special order, ships in 7-14 days
20905181Ferrari Charge Socket Cord - 905181$39.31Special order, ships in 7-14 days
2113046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
22956839Ferrari Emergency Charge Socket Actu - 956839$3.16Special order, ships in 7-14 days
23870754Ferrari COMPL. FRONT MOUNT OF CHARGE SOCKET - 870754$23.33Special order, ships in 7-14 days
24870729Ferrari COMPL. REAR MOUNT OF CHARGE SOCKET - 870729$23.33Special order, ships in 7-14 days
25269959Ferrari Screw - 269959$1.61In stock
2568927500Ferrari Screw - 68927500$0.50Special order, ships in 7-14 days
2585833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
