Ferrari 296 GTS — [ENGINE] - B.05 - PISTONS AND CONNECTING RODS (diagram 0008)

Exploded view of the [engine] - b.05 - pistons and connecting rods on the Ferrari 296 GTS, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

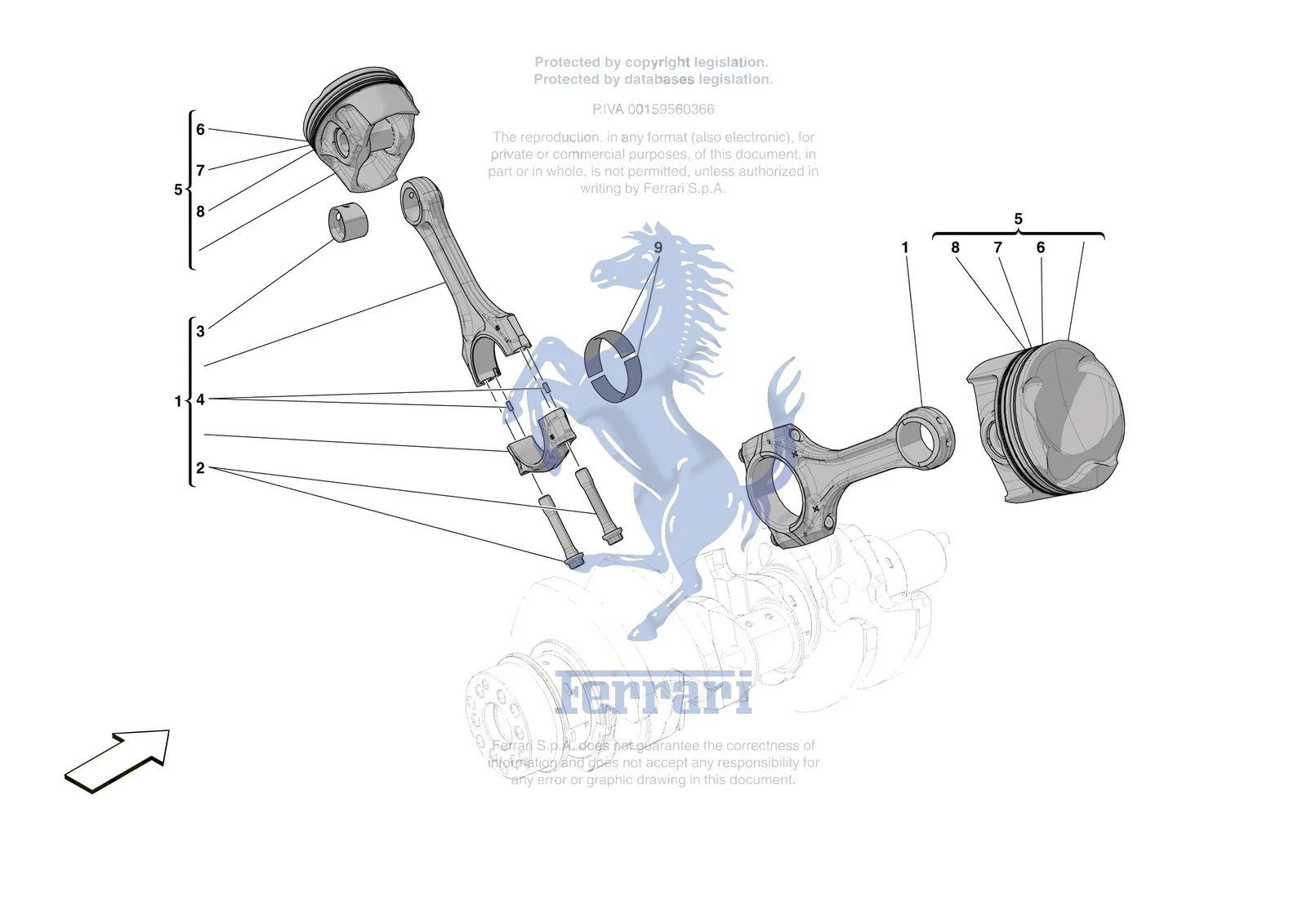

Ferrari 296 GTS [ENGINE] - B.05 - PISTONS AND CONNECTING RODS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1968186Ferrari Compl. Connecting Rod And Ca - 968186$311.42Special order, ships in 7-14 days
2281320Ferrari Con Rod Bolt - 281320$295.03Special order, ships in 7-14 days
3955507Ferrari Bush - 955507$81.11Special order, ships in 7-14 days
4292751Ferrari Alignment Pin - 292751$44.24Special order, ships in 7-14 days
5741196Ferrari Compl. LH Piston - 741196$983.50Special order, ships in 7-14 days
5741195Ferrari Compl. RH Piston - 741195$983.50Special order, ships in 7-14 days
6771340Ferrari Top Ring - 771340$122.92Special order, ships in 7-14 days
7771341Ferrari Second Ring - 771341$71.28Special order, ships in 7-14 days
8771342Ferrari Oil Control Ring - 771342$100.78Special order, ships in 7-14 days
9799086Ferrari Semicuscinetto Biella Crowni - 799086$44.24Special order, ships in 7-14 days
9799087Ferrari Semicuscinetto Biella Crowni - 799087$44.24Special order, ships in 7-14 days
9799088Ferrari Semicuscinetto Biella Crowni - 799088$44.24Special order, ships in 7-14 days
9954171Ferrari Semicuscinetto Biella Crowni - 954171$44.24Special order, ships in 7-14 days
9954172Ferrari Semicuscinetto Biella Crowni - 954172$44.24Special order, ships in 7-14 days
9954173Ferrari Semicuscinetto Biella Crowni - 954173$44.24Special order, ships in 7-14 days
