Ferrari 296 GTS — [ENGINE] - B.07 - TORSION DAMPER (diagram 0010)

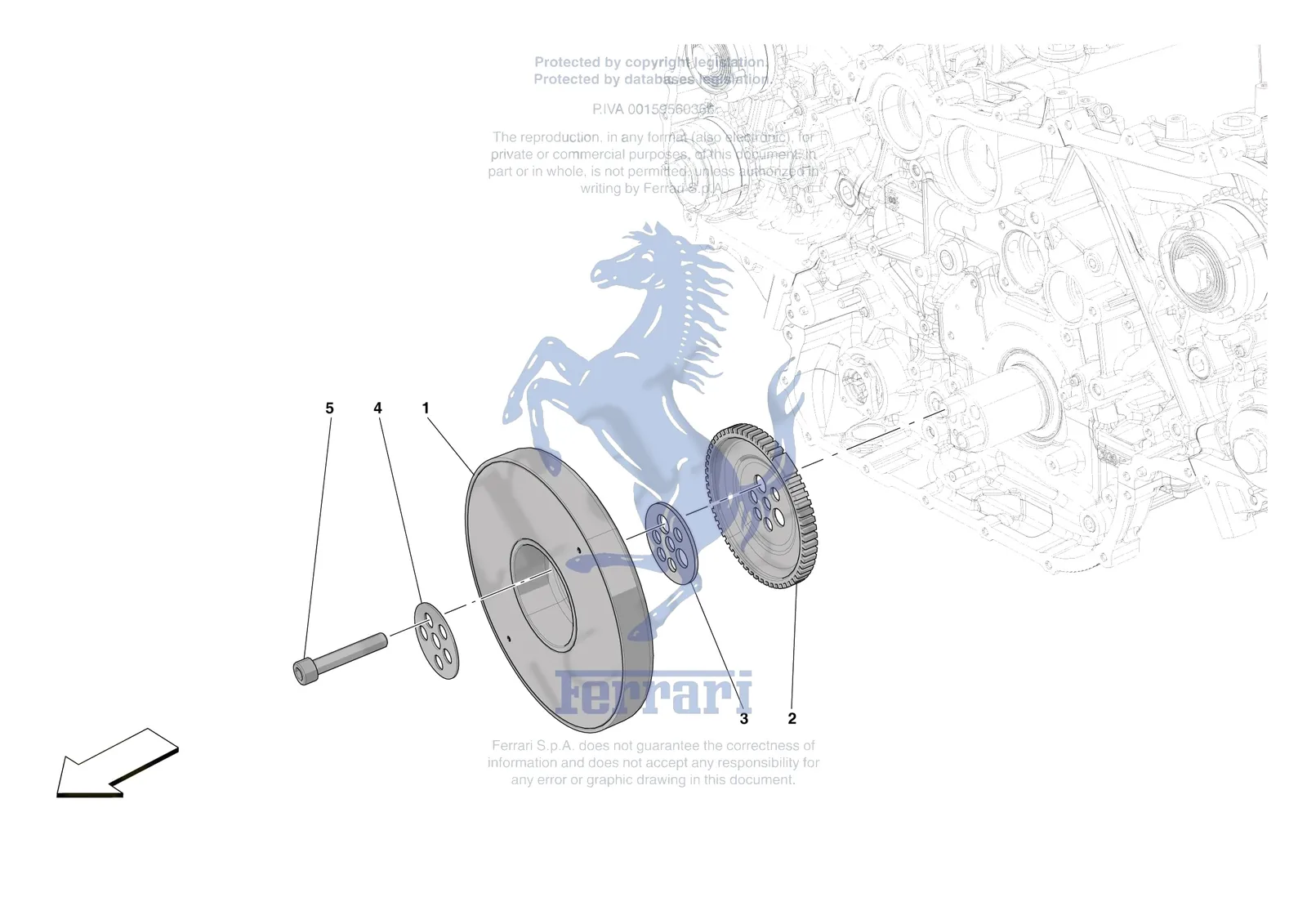

Exploded view of the [engine] - b.07 - torsion damper on the Ferrari 296 GTS, with 5 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ENGINE] - B.07 - TORSION DAMPER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0010.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 741440 | Ferrari Smorzatore Torsionale - 741440 | $2,922.46 | Special order, ships in 7-14 days |
| 2 | 958432 | Ferrari Front Tone Wheel - 958432 | $983.50 | Special order, ships in 7-14 days |
| 3 | 958435 | Ferrari Washer - 958435 | $107.06 | Special order, ships in 7-14 days |
| 4 | 803159 | Ferrari Washer - 803159 | $9.81 | Special order, ships in 7-14 days |
| 5 | 14308074 | Ferrari Screw - 14308074 | $4.12 | Available, ships in 3-6 days |
