Ferrari 296 GTS — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)
Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari 296 GTS, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

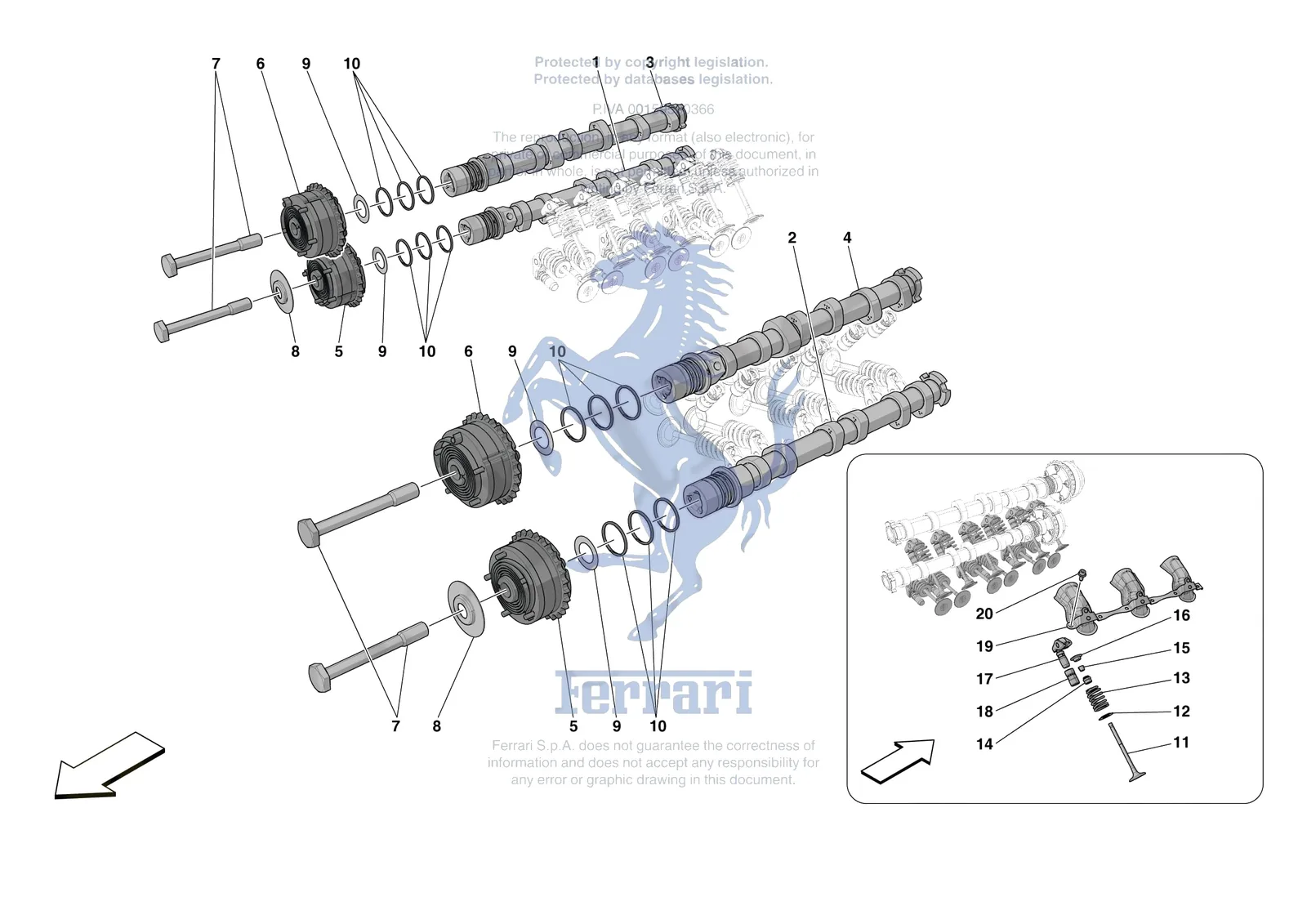

![Ferrari 296 GTS [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0013.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 877467 | Ferrari Compl. Finger-Tappet - 877467 | Superseded | Order 840559 instead | |
| 1 | 927969 | Ferrari RH Intake Camshaft - 927969 | $700.73 | Special order, ships in 7-14 days |
| 2 | 927970 | Ferrari LH Intake Camshaft - 927970 | $700.73 | Special order, ships in 7-14 days |
| 3 | 961460 | Ferrari RH Exhaust Camshaft - 961460 | $648.83 | Special order, ships in 7-14 days |
| 4 | 961461 | Ferrari LH Exhaust Camshaft - 961461 | $648.83 | Special order, ships in 7-14 days |
| 5 | 795894 | Ferrari Variable Valve Timing Adjuster - 795894 | $1,131.03 | Special order, ships in 7-14 days |
| 6 | 795895 | Ferrari Variable Valve Timing Adjuster - 795895 | $1,131.03 | Special order, ships in 7-14 days |
| 7 | 254892 | Ferrari Screw M14 x 1.5 - 254892 | $26.20 | Available, ships in 3-6 days |
| 8 | 296310 | Ferrari Spacer - 296310 | $36.86 | Special order, ships in 7-14 days |
| 9 | 240559 | Ferrari Diamond Washer - 240559 | $17.90 | Available, ships in 3-6 days |
| 10 | 246965 | Ferrari Seal Ring - 246965 | $18.42 | Available, ships in 3-6 days |
| 11 | 828769 | Ferrari Exhaust Valve - 828769 | $125.37 | Special order, ships in 7-14 days |
| 11 | 828771 | Ferrari Intake Valve - 828771 | $61.45 | Special order, ships in 7-14 days |
| 12 | 925693 | Ferrari Lower Valve Spring Cap - 925693 | $19.65 | Special order, ships in 7-14 days |
| 12 | 925694 | Ferrari Lower Valve Spring Cap - 925694 | $18.90 | Special order, ships in 7-14 days |
| 13 | 821149 | Ferrari Valve Return Spring - 821149 | $31.93 | Special order, ships in 7-14 days |
| 14 | 899547 | Ferrari Oil Seal For Valve Seal - 899547 | $7.84 | Special order, ships in 7-14 days |
| 15 | 179763 | Ferrari Valve Collets Per Half - 179763 | $1.40 | Available, ships in 3-6 days |
| 16 | 938039 | Ferrari Upper Valve Spring Cap - 938039 | $29.48 | Special order, ships in 7-14 days |
| 17 | 840559 | Ferrari Compl. Finger-Tappet - 840559 | $105.70 | Special order, ships in 7-14 days |
| 18 | 879354 | Ferrari Tappet Roller Bearing - 879354 | $58.98 | Special order, ships in 7-14 days |
| 19 | 55005786 | Ferrari LH Cylinder Bank Coil Shield - 55005786 | $368.79 | Special order, ships in 7-14 days |
| 19 | 745652 | Ferrari LH Cylinder Bank Coil Shield - 745652 | $368.79 | Special order, ships in 7-14 days |
| 19 | 55005787 | Ferrari RH Cylinder Bank Coil Shield - 55005787 | $368.79 | Special order, ships in 7-14 days |
| 19 | 745651 | Ferrari RH Cylinder Bank Coil Shield - 745651 | $368.79 | Special order, ships in 7-14 days |
| 20 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
