Ferrari 296 GTS — [ENGINE] - B.09 - TIMING SYSTEM DRIVE (diagram 0014)

Exploded view of the [engine] - b.09 - timing system drive on the Ferrari 296 GTS, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

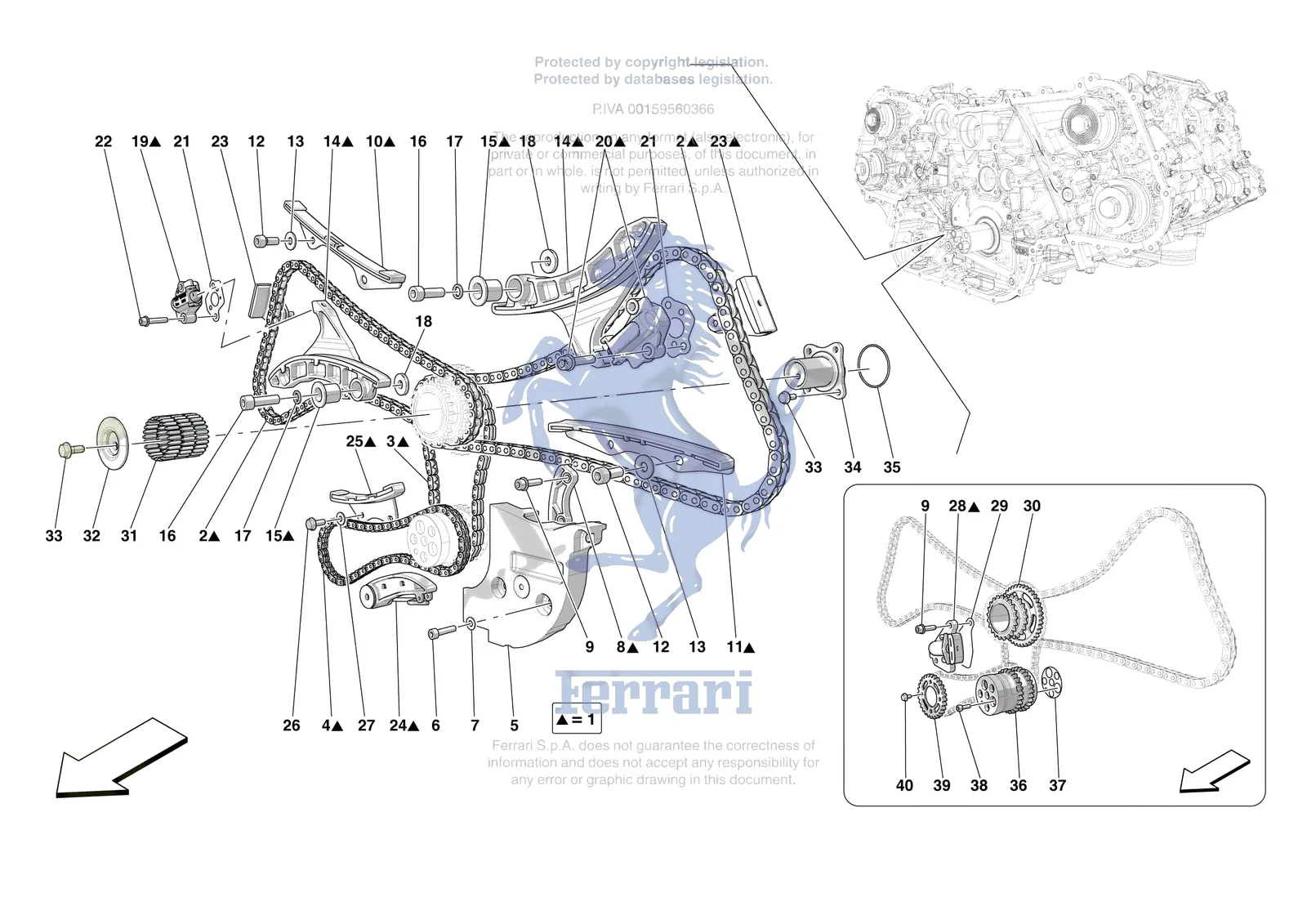

Ferrari 296 GTS [ENGINE] - B.09 - TIMING SYSTEM DRIVE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
982232Ferrari Fixed Shoe - 982232SupersededOrder 806402 instead
982230Ferrari Mobile Shoe - 982230SupersededOrder 876149 instead
287802Ferrari Shoulder - 287802$61.16Special order, ships in 7-14 days
155021858Ferrari Valve Timing And Pump Drive - 55021858SupersededOrder 55022441 instead
155022441Ferrari Valve Timing And Pump Drive - 55022441$3,505.55Special order, ships in 7-14 days
1903941Ferrari Valve Timing And Pump Drive - 903941SupersededOrder 55022441 instead
2876147Ferrari Valve Timing Chain - 876147$270.44Special order, ships in 7-14 days
3803163Ferrari Chain - 803163$319.62Special order, ships in 7-14 days
4803168Ferrari Pump Drive Chain - 803168$218.81Special order, ships in 7-14 days
5778322Ferrari Timing System Compartment Fi - 778322$145.03Special order, ships in 7-14 days
614304321Ferrari Screw M5 x 20 - 14304321$0.34Special order, ships in 7-14 days
711181579Ferrari Washer - 11181579$0.79Special order, ships in 7-14 days
8905013Ferrari Fixed Shoe - 905013$516.33Special order, ships in 7-14 days
9282396Ferrari Screw 6x22 - 282396$1.23Available, ships in 3-6 days
10803165Ferrari Fixed Shoe - 803165$145.03Special order, ships in 7-14 days
11806402Ferrari Fixed Shoe - 806402$145.03Special order, ships in 7-14 days
1214302821Ferrari Screw - 14302821$0.38Available, ships in 3-6 days
13163759Ferrari Washer - 163759$26.20Special order, ships in 7-14 days
14876149Ferrari Mobile Shoe - 876149$223.73Special order, ships in 7-14 days
15175303Ferrari Bush For Timing Guide - 175303$56.52Special order, ships in 7-14 days
1614306421Ferrari Screw 8x20 - 14306421$0.63Available, ships in 3-6 days
1614306424Ferrari Screw M8 x 25mm - 14306424SupersededOrder 14306421 instead
17284900Ferrari Washer - 284900$0.33Special order, ships in 7-14 days
18288341Ferrari Washer - 288341$5.86Special order, ships in 7-14 days
1955021860Ferrari Hydraulic Tensioner - 55021860$245.85Special order, ships in 7-14 days
19903948Ferrari Hydraulic Tensioner - 903948$83.57Special order, ships in 7-14 days
2055021861Ferrari Hydraulic Tensioner - 55021861$514.01Special order, ships in 7-14 days
20903967Ferrari Hydraulic Tensioner - 903967$236.02Special order, ships in 7-14 days
21958150Ferrari Gasket - 958150$8.72Special order, ships in 7-14 days
22282398Ferrari Screw 6x30 - 282398$1.04Available, ships in 3-6 days
23803167Ferrari Fixed Shoe - 803167$295.03Special order, ships in 7-14 days
24904999Ferrari Mobile Shoe - 904999$639.27Special order, ships in 7-14 days
25905015Ferrari Fixed Shoe - 905015$344.21Special order, ships in 7-14 days
26181336Ferrari Screw M6 X 16 - 181336$5.14Available, ships in 3-6 days
27276781Ferrari Washer - 276781$0.79Special order, ships in 7-14 days
28954458Ferrari Hydraulic Chain Tensioner - 954458$786.79Special order, ships in 7-14 days
29958152Ferrari Gasket - 958152$10.02Special order, ships in 7-14 days
30806470Ferrari Drive Gear - 806470$860.56Special order, ships in 7-14 days
31267808Ferrari Roller Bearing Cage - 267808$24.02Available, ships in 3-6 days
32304699Ferrari Shoulder - 304699$56.52Special order, ships in 7-14 days
33284898Ferrari Screw M6 x 16 - 284898$6.31Special order, ships in 7-14 days
34806533Ferrari Mounting - 806533$467.15Special order, ships in 7-14 days
35154191Ferrari O-Ring - 154191$1.42In stock
36839197Ferrari Shaft Gear - 839197$811.38Special order, ships in 7-14 days
37807703Ferrari Washer - 807703$78.66Special order, ships in 7-14 days
38245915Ferrari Screw - 245915$2.59Special order, ships in 7-14 days
39806536Ferrari Pump Drive Gear - 806536$319.62Special order, ships in 7-14 days
40255780Ferrari Screw 5x9 - 255780$2.59Special order, ships in 7-14 days
