Ferrari 296 GTS — [ENGINE] - B.17 - INJECTOR PIPES (diagram 0022)

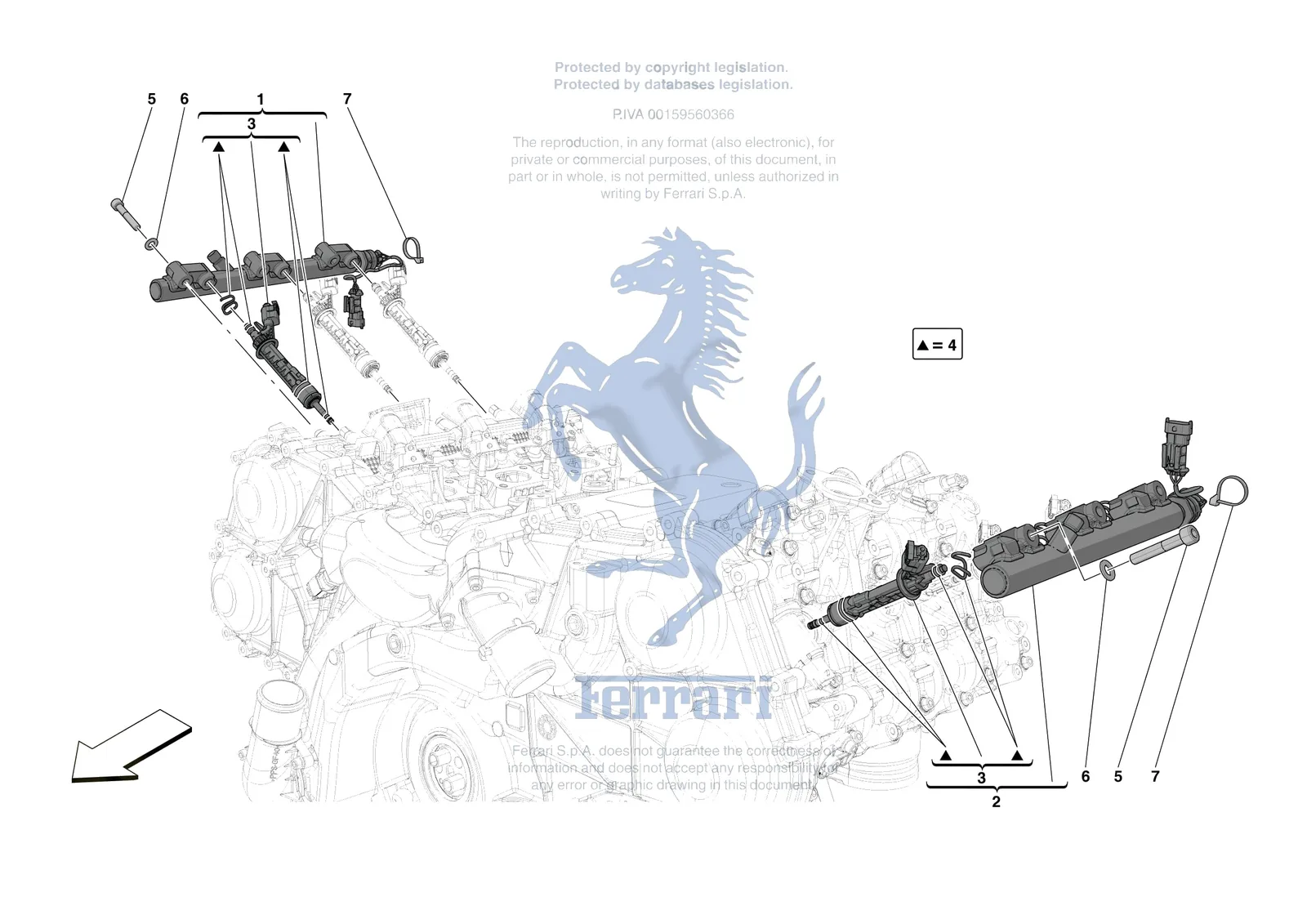

Exploded view of the [engine] - b.17 - injector pipes on the Ferrari 296 GTS, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ENGINE] - B.17 - INJECTOR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0022.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 70005234 | Ferrari Ferrari Seal Kit - Injectors - 70005234 | $188.20 | Special order, ships in 7-14 days | |
| 285494 | Ferrari Screw 8x50 - 285494 | $1.99 | Available, ships in 3-6 days | |
| 1 | 953325 | Ferrari RH Fuel Pipe Compl. With Inj - 953325 | $3,842.75 | Special order, ships in 7-14 days |
| 1 | 55018920 | Ferrari RH Fuel Pipe Compl. with Injectors - 55018920 | $2,964.61 | Special order, ships in 7-14 days |
| 2 | 55018923 | Ferrari LH Fuel Pipe Compl. With Inj - 55018923 | $2,964.61 | Special order, ships in 7-14 days |
| 2 | 953347 | Ferrari LH Fuel Pipe Compl. With Inj - 953347 | $3,842.75 | Special order, ships in 7-14 days |
| 3 | 827711 | Ferrari Electro-Injector - 827711 | $262.24 | Special order, ships in 7-14 days |
| 4 | 70007597 | Ferrari Ferrari Seal Kit - Injectors - 70007597 | $132.75 | Special order, ships in 7-14 days |
| 5 | 14306824 | Ferrari Bolt M8 x 45 TCEI - 14306824 | $1.04 | Available, ships in 3-6 days |
| 6 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 7 | 206739 | Ferrari Tear Clip - 206739 | $16.37 | Available, ships in 3-6 days |
