Ferrari 296 GTS — [ENGINE] - B.29 - AC COMPRESSOR (diagram 0034)

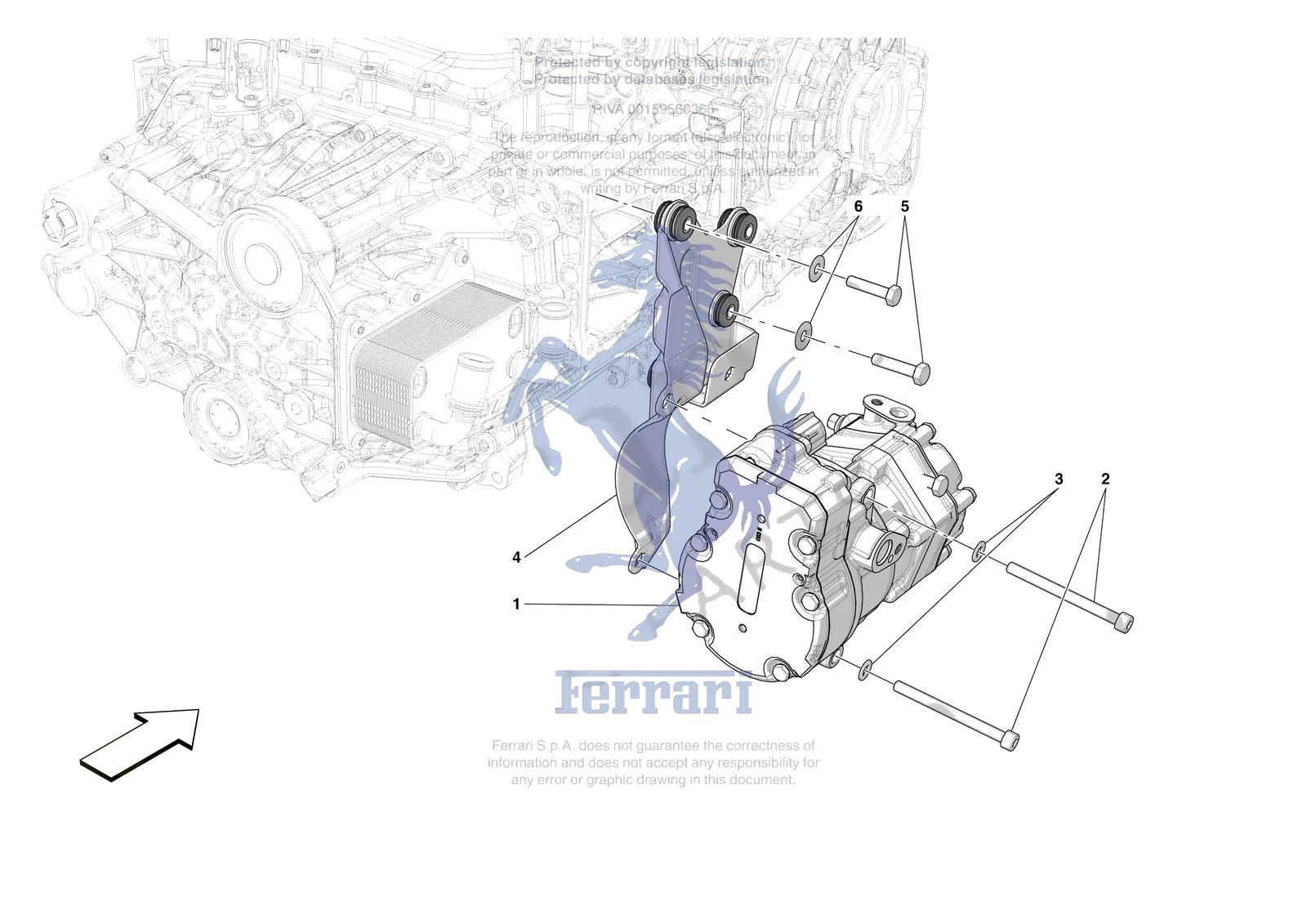

Exploded view of the [engine] - b.29 - ac compressor on the Ferrari 296 GTS, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ENGINE] - B.29 - AC COMPRESSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0034.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 803367 | Ferrari Compressore Elett. A/C Mahle - 803367 | $4,508.58 | Special order, ships in 7-14 days |
| 2 | 14307124 | Ferrari Screw M8 x 90 - 14307124 | $1.30 | Available, ships in 3-6 days |
| 3 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 4 | 910446 | Ferrari Compressor Mounting Bracket - 910446 | $811.38 | Special order, ships in 7-14 days |
| 5 | 16043934 | Ferrari Screw M8 x 35 - 16043934 | $0.54 | Available, ships in 3-6 days |
| 6 | 12625224 | Ferrari Washer - 12625224 | $0.13 | Available, ships in 3-6 days |
