Ferrari 296 GTS — [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS (diagram 0040)

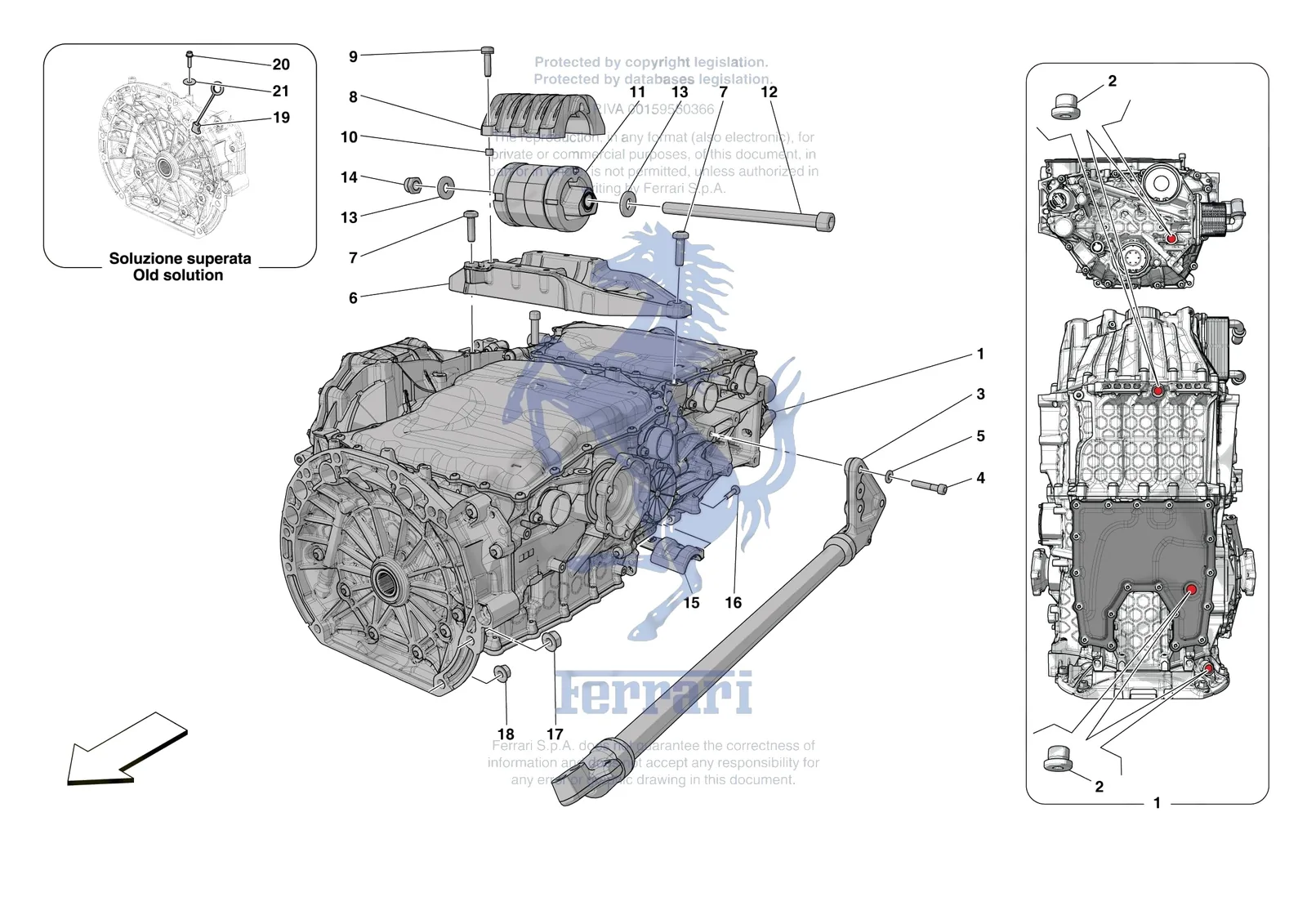

Exploded view of the [gearbox] - c.01.01 - gearbox and fasteners on the Ferrari 296 GTS, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0040.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 762911 | Ferrari Cambio Gtc 498 Motore Post - 762911 | $65,269.33 | Contact us to order |
| 1 | 893170 | Ferrari Cambio Gtc 498 Motore Post - 893170 | Superseded | Order 762911 instead |
| 2 | 913205 | Ferrari Oil Plug Compl. With Washer - 913205 | $115.54 | Special order, ships in 7-14 days |
| 3 | 830226 | Ferrari Compl. LH Spar - 830226 | $1,401.51 | Special order, ships in 7-14 days |
| 4 | 14306734 | Ferrari Screw - 14306734 | $2.13 | Special order, ships in 7-14 days |
| 5 | 858419 | Ferrari Washer - 858419 | $0.50 | Special order, ships in 7-14 days |
| 6 | 965162 | Ferrari Supporto Inf. Cambio - 965162 | $713.04 | Special order, ships in 7-14 days |
| 7 | 763347 | Ferrari Vite Tb Cava Torx M10X1.25X3 - 763347 | $10.02 | Special order, ships in 7-14 days |
| 8 | 259441 | Ferrari Bushing Cover Collar - 259441 | $295.03 | Special order, ships in 7-14 days |
| 9 | 292738 | Ferrari Vite Vtc Torx Rond. M8X30 - 292738 | $16.58 | Special order, ships in 7-14 days |
| 10 | 102032 | Ferrari Dowel Bolt - 102032 | $7.63 | Available, ships in 3-6 days |
| 11 | 964915 | Ferrari Tampone Sostegno Cambio - 964915 | $762.20 | Special order, ships in 7-14 days |
| 12 | 921971 | Ferrari Allen Head Bolt M14X1.5X210 - 921971 | $30.57 | Special order, ships in 7-14 days |
| 13 | 12644924 | Ferrari Washer - 12644924 | $3.47 | Available, ships in 3-6 days |
| 14 | 851485 | Ferrari Self-Locking Nut - 851485 | $3.91 | Special order, ships in 7-14 days |
| 15 | 977463 | Ferrari Retention Bracket - 977463 | $270.44 | Special order, ships in 7-14 days |
| 16 | 247857 | Ferrari Screw 8x35 - 247857 | $4.12 | Available, ships in 3-6 days |
| 17 | 868602 | Ferrari Nut - 868602 | $16.81 | Special order, ships in 7-14 days |
| 18 | 14059421 | Ferrari Flanged Nut 10x1.25 - 14059421 | $0.92 | Available, ships in 3-6 days |
| 19 | 950959 | Ferrari Plug - 950959 | $14.51 | Special order, ships in 7-14 days |
| 20 | 282392 | Ferrari Screw 6x14 - 282392 | $0.96 | Available, ships in 3-6 days |
| 21 | 12648978 | Ferrari Washer - 12648978 | $1.04 | Available, ships in 3-6 days |
