Ferrari 296 GTS — [GEARBOX] - C.01.02 - GEARBOX REPAIR KIT (diagram 0041)

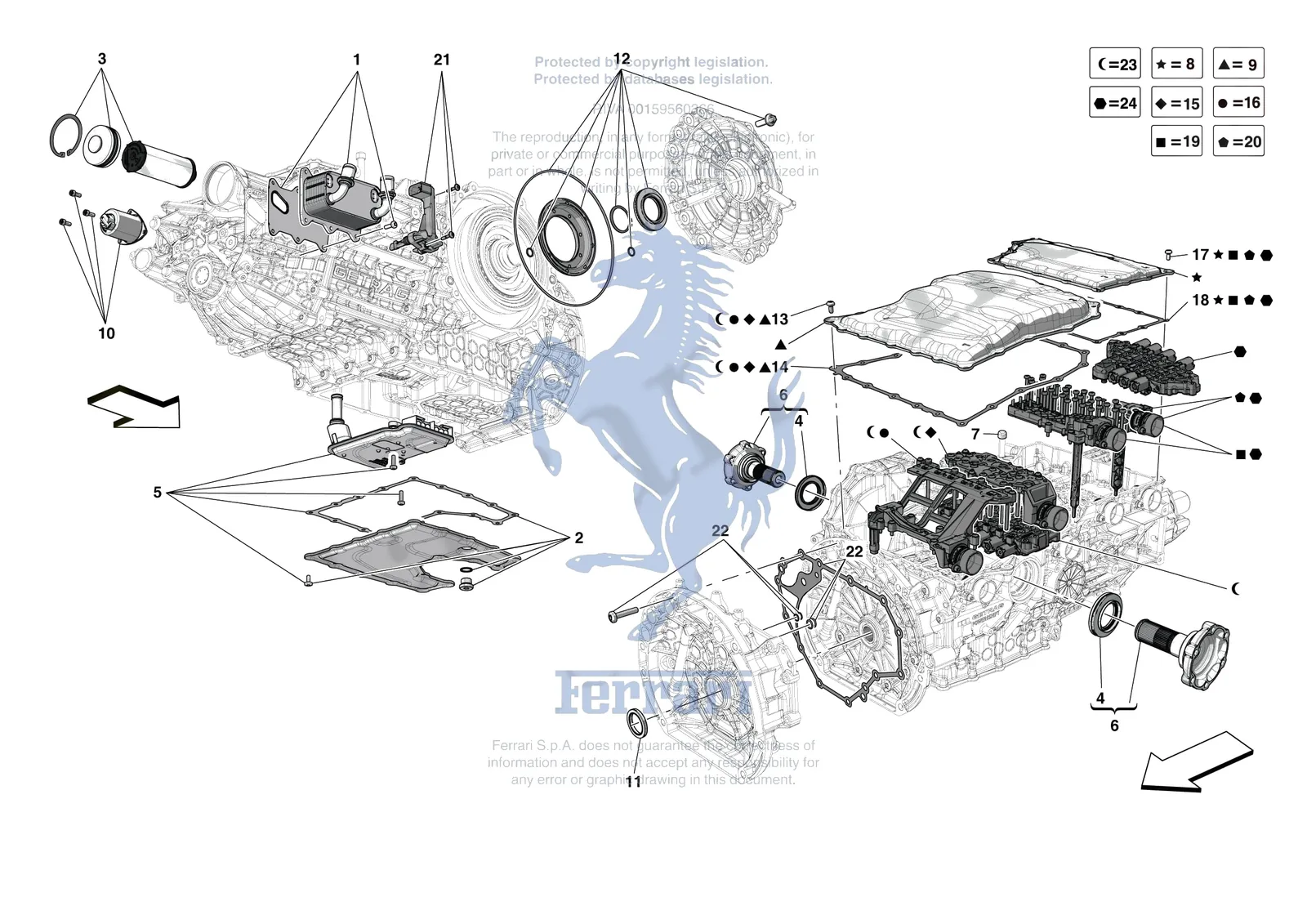

Exploded view of the [gearbox] - c.01.02 - gearbox repair kit on the Ferrari 296 GTS, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [GEARBOX] - C.01.02 - GEARBOX REPAIR KIT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0041.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 748503 | Ferrari M0133266 Heat Exchanger Draf - 748503 | $1,531.26 | Special order, ships in 7-14 days |
| 2 | 748516 | Ferrari M0133917 Oil Pan Draft - 748516 | $908.37 | Special order, ships in 7-14 days |
| 3 | 748537 | Ferrari M0133918 Pressure Filter Dra - 748537 | $1,901.45 | Special order, ships in 7-14 days |
| 4 | 749374 | Ferrari M0133919 Rwdr Seal Hinge Fla - 749374 | $108.98 | Special order, ships in 7-14 days |
| 5 | 749386 | Ferrari M0133920 Suction Filter Modu - 749386 | $882.41 | Special order, ships in 7-14 days |
| 6 | 749582 | Ferrari M0133921 Hinge Flange Draft - 749582 | $1,712.94 | Special order, ships in 7-14 days |
| 7 | 748510 | Ferrari M0133549 Air Separator Cap D - 748510 | $44.10 | Special order, ships in 7-14 days |
| 8 | 749388 | Ferrari M0133927 Sam Cover Draft - 749388 | $700.73 | Special order, ships in 7-14 days |
| 9 | 749398 | Ferrari M0133928 Ccm Cover Draf - 749398 | $882.41 | Special order, ships in 7-14 days |
| 10 | 749434 | Ferrari M0133929 Park Lock Solenoid - 749434 | $778.59 | Special order, ships in 7-14 days |
| 11 | 749543 | Ferrari M0133933 Rwdr Seal Input Sha - 749543 | $211.98 | Special order, ships in 7-14 days |
| 12 | 749440 | Ferrari M0144371 Ediff Piston Draft - 749440 | $960.27 | Special order, ships in 7-14 days |
| 15 | 55024221 | Ferrari Sensor Kit For Ccm Electroni - 55024221 | $7,076.81 | Special order, ships in 7-14 days |
| 16 | 55024222 | Ferrari Valve Kit For Ccm Electronic - 55024222 | $5,133.95 | Special order, ships in 7-14 days |
| 19 | 55024223 | Ferrari Sam Electronic Module Even - 55024223 | $6,372.33 | Special order, ships in 7-14 days |
| 20 | 55024227 | Ferrari Sam Electronic Module Odd - 55024227 | $6,080.67 | Special order, ships in 7-14 days |
| 21 | 748513 | Ferrari ELECTRONIC REVERSE MODULE - 748513 | $2,002.15 | Special order, ships in 7-14 days |
| 22 | 55051042 | Ferrari CONNECTOR CASING GASKET AND FASTENER KIT - 55051042 | $2,709.35 | Special order, ships in 7-14 days |
| 23 | 55024217 | Ferrari Ccm Clutch Control Module - 55024217 | $15,532.92 | Special order, ships in 7-14 days |
| 24 | 55024220 | Ferrari Sam kit - 55024220 | $15,953.13 | Special order, ships in 7-14 days |
