Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL (diagram 0050)

Exploded view of the [mechanical system] - d.03 - engine injection control on the Ferrari 296 GTS, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

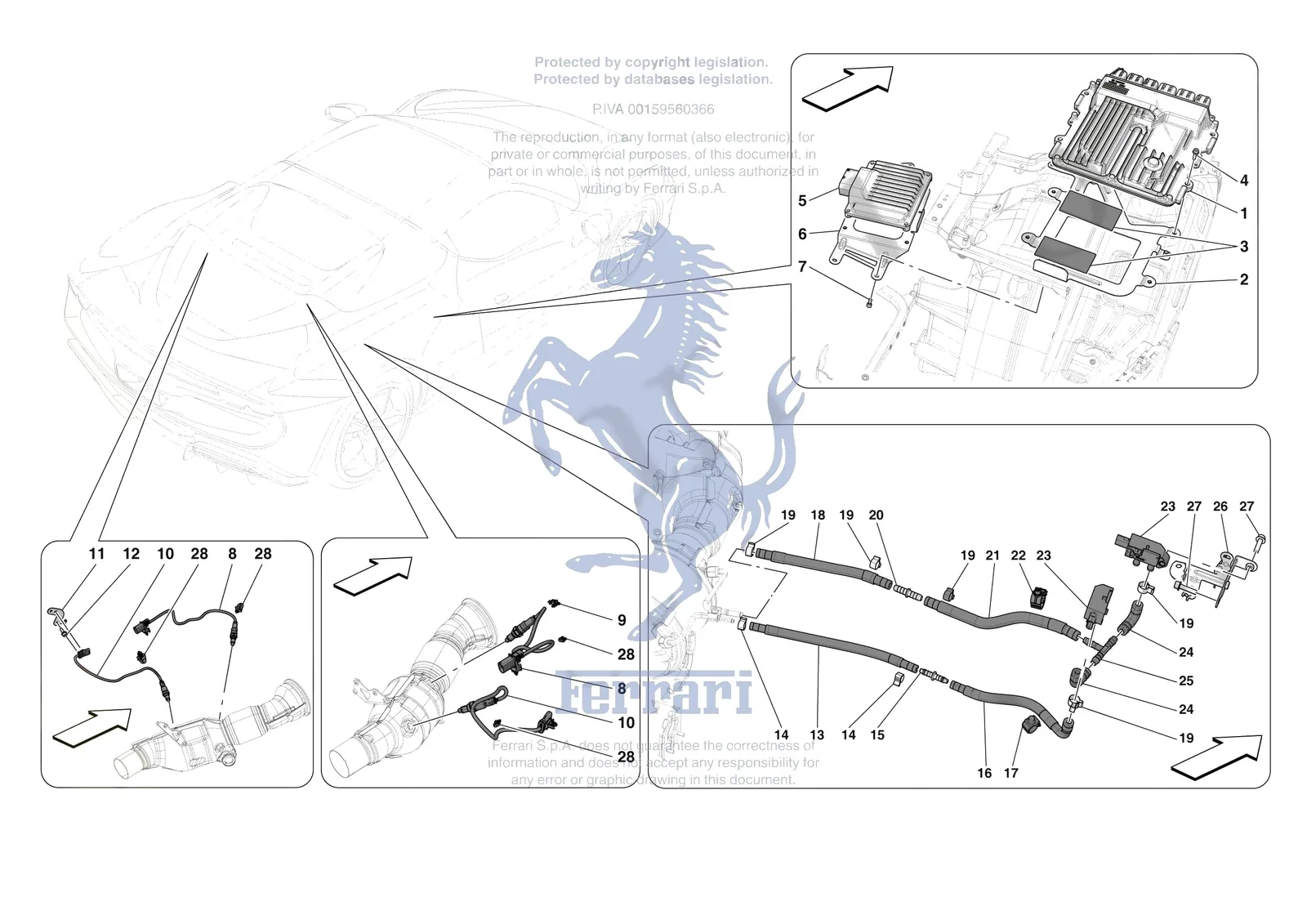

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
749477Ferrari ECU Ion Fornitura Cpl Eisb 1 - 749477SupersededOrder 952897 instead
771583Ferrari Ionising Knock Sensor Contro - 771583SupersededOrder 952897 instead
782371Ferrari Ionising Knock Sensor Contro - 782371SupersededOrder 952897 instead
917531Ferrari Rubber Pipe With Sheath - 917531SupersededOrder 869391 instead
917574Ferrari Rubber Pipe With Sheath - 917574SupersededOrder 869408 instead
917756Ferrari Rubber Pipe With Sheath - 917756SupersededOrder 869409 instead
917816Ferrari Rubber Pipe With Sheath - 917816SupersededOrder 869411 instead
340699Ferrari T Union - 340699SupersededOrder 913829 instead
1935117Ferrari Centralina Accensione Mg1 Cp - 935117$2,749.16Special order, ships in 7-14 days
2890026Ferrari ECU Bracket - 890026$174.55Special order, ships in 7-14 days
3179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
4797726Ferrari Screw - 797726$1.05Special order, ships in 7-14 days
5952897Ferrari Ionising Knock Sensor Control - 952897$2,400.25Special order, ships in 7-14 days
6967599Ferrari Ionising ECU Bracket - 967599$115.54Special order, ships in 7-14 days
7256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
8787778Ferrari Front Oxygen Sensor - 787778$262.24Available, ships in 3-6 days
984093700Ferrari Clip - 84093700$2.82Special order, ships in 7-14 days
10787780Ferrari Rear Oxygen Sensor - 787780$240.39Available, ships in 3-6 days
11767629Ferrari Oxygen Sensor Bracket - 767629$216.35Special order, ships in 7-14 days
12797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
13869409Ferrari Rubber Pipe With Sheath - 869409$98.32Special order, ships in 7-14 days
1413125270Ferrari Collare A Nastro Fiss.Manic. - 13125270$3.68Special order, ships in 7-14 days
15917648Ferrari 2 Vie Norma D6 - 917648$5.65Special order, ships in 7-14 days
16869391Ferrari Rubber Pipe With Sheath - 869391$90.95Special order, ships in 7-14 days
17206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
18869411Ferrari Rubber Pipe With Sheath - 869411$98.32Special order, ships in 7-14 days
1913125470Ferrari Collar - 13125470SupersededOrder 13126970 instead
20917646Ferrari 2 Vie Norma D8 - 917646$7.84Special order, ships in 7-14 days
21869408Ferrari Rubber Pipe With Sheath - 869408$73.73Special order, ships in 7-14 days
22259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
23340691Ferrari Pressure Sensor - 340691$196.67Special order, ships in 7-14 days
24806791Ferrari Tubo Gomma D.7-14 90 - 806791$34.40Special order, ships in 7-14 days
25913829Ferrari Three Way - 913829$10.06Special order, ships in 7-14 days
26775250Ferrari LH Pressure Sensor Bracket - 775250$54.07Special order, ships in 7-14 days
26832219Ferrari RH Pressure Sensor Bracket - 832219$54.07Special order, ships in 7-14 days
27231620Ferrari/Maserati Screw - 231620$0.58In stock
28217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
