Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

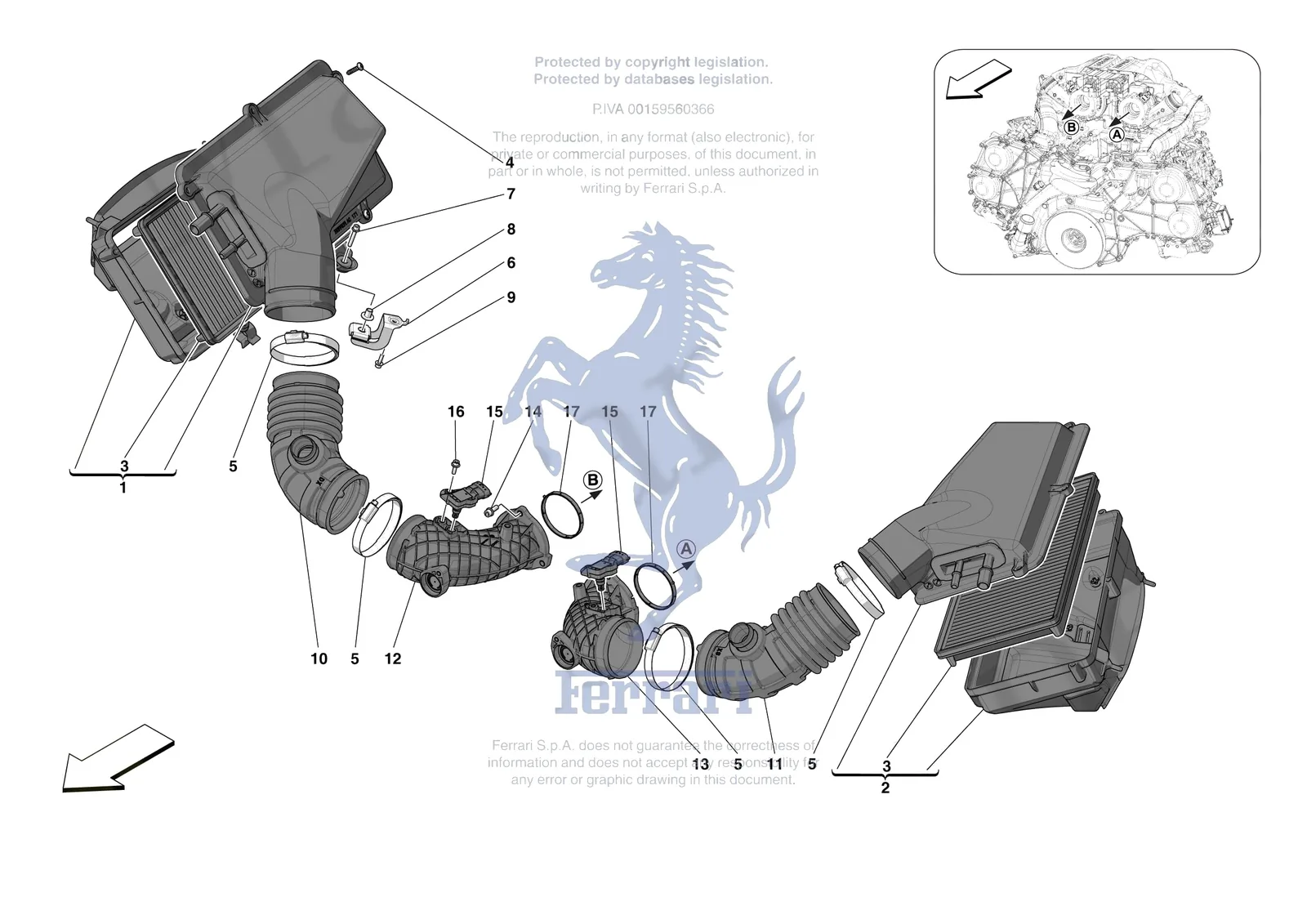

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari 296 GTS, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 856171 | Ferrari Condotto Aspirazione Turbo D - 856171 | Superseded | Order 799437 instead | |
| 856167 | Ferrari Condotto Aspirazione Turbo S - 856167 | Superseded | Order 799436 instead | |
| 1 | 900190 | Ferrari Compl. RH Air Filter Box - 900190 | $1,622.78 | Special order, ships in 7-14 days |
| 1 | 900192 | Ferrari Compl. RH Air Filter Box - 900192 | $2,037.27 | Special order, ships in 7-14 days |
| 2 | 900188 | Ferrari Compl. LH Air Filter Box - 900188 | $1,622.78 | Special order, ships in 7-14 days |
| 2 | 900191 | Ferrari Compl. LH Air Filter Box - 900191 | $2,037.27 | Special order, ships in 7-14 days |
| 3 | 741701 | Ferrari Air Filter - 741701 | $91.35 | Available, ships in 3-6 days |
| 3 | 768721 | Ferrari Air Filter - 768721 | $456.89 | Available, ships in 3-6 days |
| 4 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 5 | 323688 | Ferrari Ring Clamp - 323688 | $8.93 | Special order, ships in 7-14 days |
| 5 | 900284 | Ferrari Screw Collar - 900284 | $11.56 | Special order, ships in 7-14 days |
| 6 | 793183 | Ferrari Lower Fastener Bracket - 793183 | $103.25 | Special order, ships in 7-14 days |
| 7 | 797730 | Ferrari Screw - 797730 | $1.17 | Special order, ships in 7-14 days |
| 8 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 9 | 790361 | Ferrari Screw M5 x 16 - 790361 | $2.59 | Special order, ships in 7-14 days |
| 10 | 951712 | Ferrari RH Air Intake Hose - 951712 | $191.76 | Special order, ships in 7-14 days |
| 11 | 783272 | Ferrari LH Air Intake Hose - 783272 | $179.46 | Special order, ships in 7-14 days |
| 12 | 799437 | Ferrari Condotto Aspirazione Turbo D - 799437 | $127.82 | Special order, ships in 7-14 days |
| 13 | 799436 | Ferrari Condotto Aspirazione Turbo S - 799436 | $122.92 | Special order, ships in 7-14 days |
| 14 | 282394 | Ferrari Screw - 282394 | $1.48 | Special order, ships in 7-14 days |
| 15 | 859736 | Ferrari Sensore Di Pressione E Tempe - 859736 | $83.03 | Special order, ships in 7-14 days |
| 16 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 17 | 786532 | Ferrari Guarnizione Tenuta Flangia - 786532 | $12.65 | Special order, ships in 7-14 days |
