Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER (diagram 0052)

Exploded view of the [mechanical system] - d.04.02 - intercooler on the Ferrari 296 GTS, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

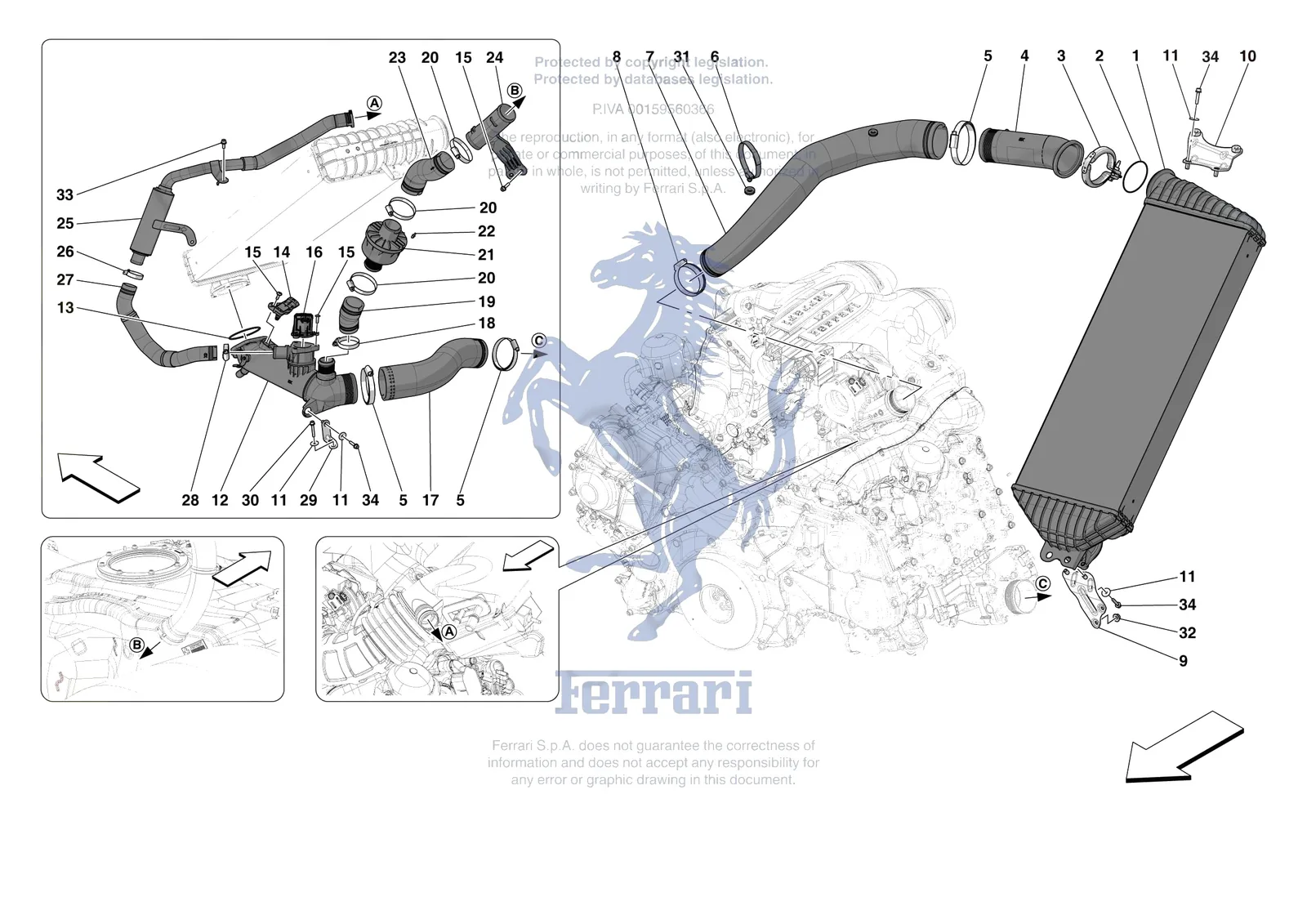

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
777773Ferrari LH Hose - 777773SupersededOrder 941399 instead
777775Ferrari LH Intercooler Rigid Pipe - 777775$108.16Special order, ships in 7-14 days
262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
1874363Ferrari LH Intercooler - 874363$2,510.30Special order, ships in 7-14 days
1874364Ferrari RH Intercooler - 874364$2,510.30Special order, ships in 7-14 days
2914435Ferrari O-Ring - 914435$3.47Special order, ships in 7-14 days
3910534Ferrari Intercooler V-Clamp - 910534$132.75Special order, ships in 7-14 days
4941361Ferrari LH Intercooler Rigid Pipe - 941361$95.87Special order, ships in 7-14 days
4777776Ferrari RH Intercooler Rigid Pipe - 777776$100.78Special order, ships in 7-14 days
5297576Ferrari Collar - 297576$12.44Special order, ships in 7-14 days
6814993Ferrari Collar - 814993$89.58Special order, ships in 7-14 days
7941399Ferrari LH Hose - 941399$1,450.67Special order, ships in 7-14 days
7777774Ferrari RH Hose - 777774$1,401.51Special order, ships in 7-14 days
8297572Ferrari Collar - 297572$10.68Special order, ships in 7-14 days
9914140Ferrari LH Intercooler Lower Bracket - 914140$68.83Special order, ships in 7-14 days
9914144Ferrari RH Intercooler Lower Bracket - 914144$68.83Special order, ships in 7-14 days
10811614Ferrari LH Intercooler Upper Bracket - 811614$113.08Special order, ships in 7-14 days
10811654Ferrari RH Intercooler Upper Bracket - 811654$113.08Special order, ships in 7-14 days
11789073Ferrari Washer - 789073$0.59Special order, ships in 7-14 days
12844545Ferrari LH Pipe Connector Barrel - 844545$417.97Special order, ships in 7-14 days
12844546Ferrari RH Pipe Connector Barrel - 844546$368.79Special order, ships in 7-14 days
13889223Ferrari O-Ring - 889223$3.26Special order, ships in 7-14 days
14835465Ferrari Pressure And Temperature Sen - 835465$83.03Special order, ships in 7-14 days
1585833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
16315495Ferrari Dump-Valve - 315495$295.03Available, ships in 3-6 days
17771901Ferrari LH Hose - 771901$149.96Special order, ships in 7-14 days
17771902Ferrari RH Hose - 771902$149.96Special order, ships in 7-14 days
18296781Ferrari Hose Clamp - 296781$5.59In stock
19920644Ferrari Sound Generator Hose - 920644$78.66Special order, ships in 7-14 days
20296783Ferrari Screw Collar 40-60mm - 296783$20.09Available, ships in 3-6 days
21310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
22314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
23920645Ferrari Fastener Sleeve - 920645$73.73Special order, ships in 7-14 days
24746942Ferrari Sound Generator Bracket - 746942$71.28Special order, ships in 7-14 days
25847290Ferrari LH Rigid Dump Valve Pipe - 847290$1,450.67Special order, ships in 7-14 days
25847291Ferrari RH Rigid Dump Valve Pipe - 847291$1,450.67Special order, ships in 7-14 days
26262112Ferrari Collar - 262112SupersededOrder 262111 instead
27847276Ferrari LH Dump Valve Hose - 847276$140.13Special order, ships in 7-14 days
27847277Ferrari RH Dump Valve Hose - 847277$140.13Special order, ships in 7-14 days
28178053Ferrari Clip - 178053$2.64In stock
28296779Ferrari Hose Clamp 20 to 32mm - 296779SupersededOrder 178053 instead
29771777Ferrari LH Pipe Connector Barrel Bra - 771777$39.31Special order, ships in 7-14 days
29771778Ferrari RH Pipe Connector Barrel Bra - 771778$39.31Special order, ships in 7-14 days
30797731Ferrari Screw - 797731$1.11Special order, ships in 7-14 days
31914352Ferrari Rubber Pad - 914352$7.40Special order, ships in 7-14 days
3214039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
33797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
34797729Ferrari Screw - 797729$1.61Special order, ships in 7-14 days
