Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

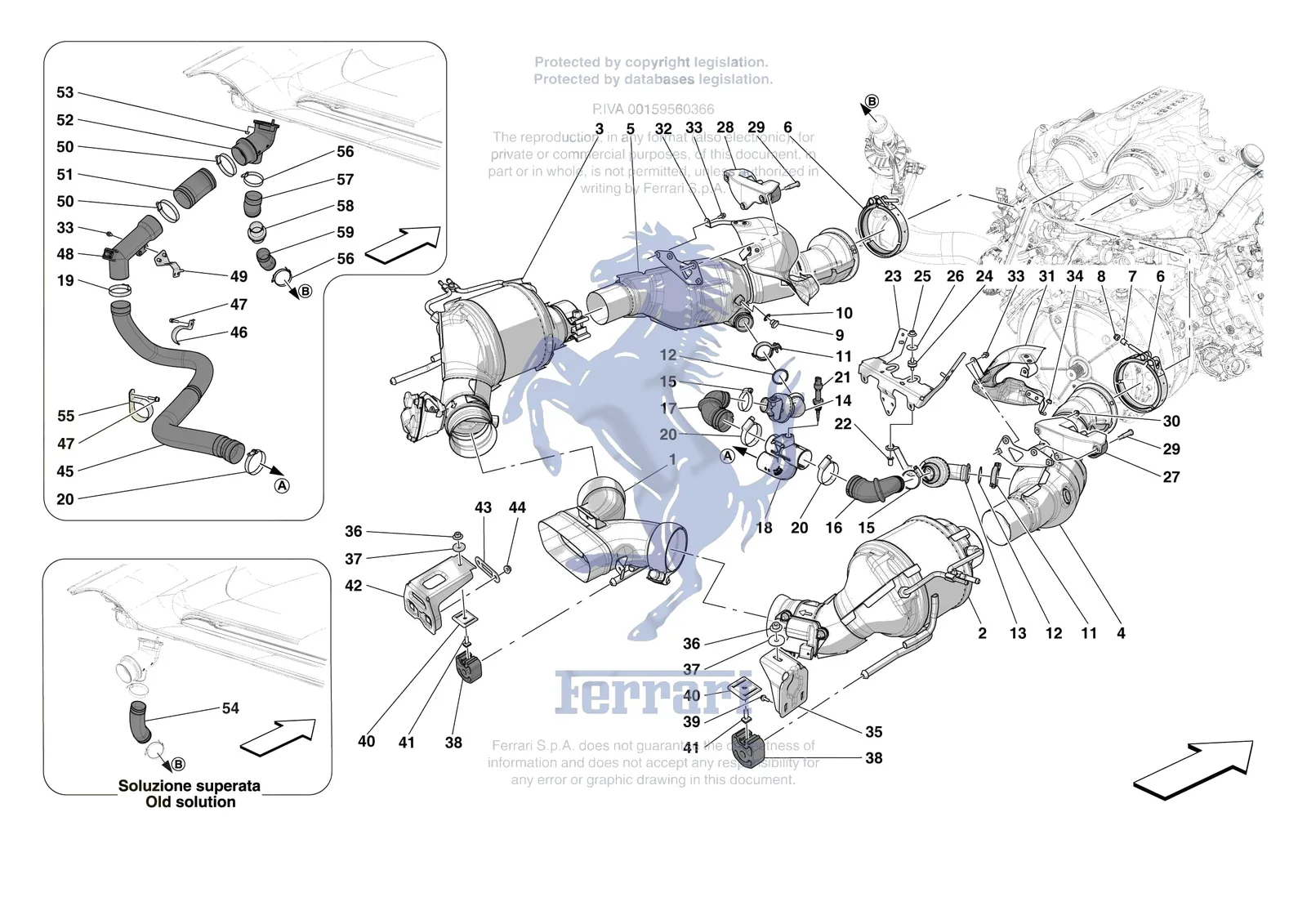

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari 296 GTS, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10861470Ferrari Collar - 10861470SupersededOrder 262383 instead
10861570Ferrari Collar - 10861570SupersededOrder 262383 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
1769752Ferrari Tailpipe - 769752$1,092.79Special order, ships in 7-14 days
2876357Ferrari Compl. RH GPF - 876357$20,204.92Contact us to order
3876361Ferrari Compl. LH GPF - 876361$20,204.92Contact us to order
4814772Ferrari Compl. RH. Pre-Cat - 814772$22,645.66Contact us to order
5814926Ferrari Compl. LH. Pre-Cat - 814926$22,734.62Contact us to order
6290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
7292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
8292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
9110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
1010298460Ferrari Washer - 10298460$1.10In stock
11855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
12898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
13745957Ferrari RH Resonator - 745957$1,401.51Special order, ships in 7-14 days
14745958Ferrari LH Resonator - 745958$1,401.51Special order, ships in 7-14 days
15296780Ferrari Hose Clamp 25 to 40mm - 296780$17.02Special order, ships in 7-14 days
16890701Ferrari RH Hot Pipe Hose - 890701$103.25Special order, ships in 7-14 days
17890830Ferrari LH Hot Pipe Hose - 890830$103.25Special order, ships in 7-14 days
18888606Ferrari 3-Way Connector - 888606$162.25Special order, ships in 7-14 days
19262116Ferrari Collar - 262116$6.10Available, ships in 3-6 days
20296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
21890950Ferrari Measured Air Temperature Sen - 890950$177.00Special order, ships in 7-14 days
22248153Ferrari Rivet - 248153$2.82Available, ships in 3-6 days
23905806Ferrari Bracket - 905806$186.84Special order, ships in 7-14 days
24225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
2514059221Ferrari Nut - 14059221$1.04Special order, ships in 7-14 days
2612647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
27801190Ferrari Compl. RH Pre-Cat Mounting B - 801190$368.79Special order, ships in 7-14 days
28801200Ferrari Compl. LH Pre-Cat Mounting B - 801200$368.79Special order, ships in 7-14 days
29934525Ferrari Threaded Pin - 934525$12.02Special order, ships in 7-14 days
3014059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
31818503Ferrari RH Pre-Cat Heat Shield - 818503$614.67Special order, ships in 7-14 days
32818490Ferrari LH Pre-Cat Heat Shield - 818490$614.67Special order, ships in 7-14 days
33797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
3414059190Ferrari Nut - 14059190$0.54Special order, ships in 7-14 days
35783566Ferrari Gpf Mounting Bracket - 783566$98.32Special order, ships in 7-14 days
3614039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
3712648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
38239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
39256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
40240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
41250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
42783565Ferrari Tailpipe Fastener Bracket - 783565$95.87Special order, ships in 7-14 days
43784547Ferrari Fastener Plate - 784547$15.22Special order, ships in 7-14 days
4414059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
45821928Ferrari Coiled Pipe - 821928$614.67Special order, ships in 7-14 days
46880303Ferrari Bracket - RH Coiled Pipe - 880303$44.24Special order, ships in 7-14 days
47797726Ferrari Screw - 797726$1.05Special order, ships in 7-14 days
48824897Ferrari Rigid Hot Pipe - 824897$78.66Special order, ships in 7-14 days
49834616Ferrari Bracket - 834616$39.31Special order, ships in 7-14 days
50262383Ferrari Collar - 262383$6.10Available, ships in 3-6 days
51827166Ferrari Hose - 827166$167.17Special order, ships in 7-14 days
52825404Ferrari Horn - 825404$319.62Special order, ships in 7-14 days
5314040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
54833470Ferrari Hose - 833470$216.35Special order, ships in 7-14 days
55920159Ferrari Bracket - 920159$29.48Special order, ships in 7-14 days
56262114Ferrari Collar - 262114$2.38Available, ships in 3-6 days
57819346Ferrari Hose - 819346$201.59Special order, ships in 7-14 days
58786536Ferrari Membrane Holder Pipe - 786536$145.03Special order, ships in 7-14 days
59818449Ferrari Hose - 818449$201.59Special order, ships in 7-14 days

All 296 GTS diagrams
