Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK (diagram 0058)

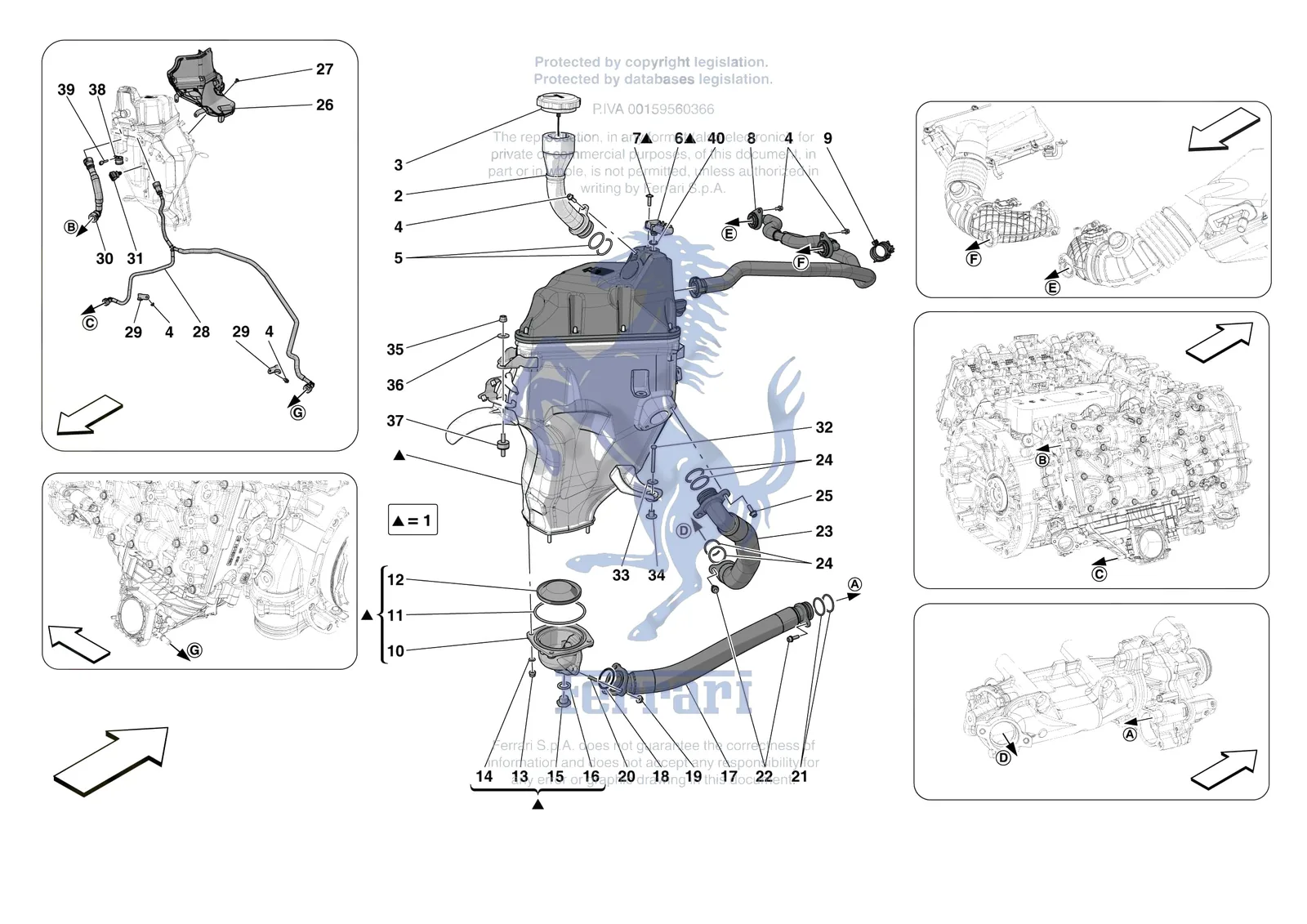

Exploded view of the [mechanical system] - d.09 - engine oil radiator and tank on the Ferrari 296 GTS, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
800479Ferrari Compl. Oil Tank - 800479SupersededOrder 742173 instead
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
55039704Ferrari SCREW - 55039704SupersededOrder 776839 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
869355Ferrari Tubo Riempimento - 869355Price on requestContact us for price and availability
943172Ferrari Tubo Riempimento - 943172$344.21Special order, ships in 7-14 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
10257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
1742173Ferrari Compl. Oil Tank - 742173$3,809.97Special order, ships in 7-14 days
1982955Ferrari Compl. Oil Tank - 982955$3,760.79Special order, ships in 7-14 days
2802684Ferrari Tubo Riempimento - 802684$368.79Special order, ships in 7-14 days
3904489Ferrari Tappo Cpl Di Asta - 904489$590.08Special order, ships in 7-14 days
3904499Ferrari Tappo Cpl Di Asta - 904499$713.04Special order, ships in 7-14 days
4797265Ferrari Screw - 797265$1.69Special order, ships in 7-14 days
5104212Ferrari O-Ring - 104212$1.10In stock
6783569Ferrari Oil Tank Cap - 783569$93.40Special order, ships in 7-14 days
6871810Ferrari Sensore Pressione Vapori Blo - 871810$240.39Special order, ships in 7-14 days
7797723Ferrari Screw - 797723$0.86Special order, ships in 7-14 days
785833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
8952054Ferrari Compl. Intake Pipe - 952054$688.45Special order, ships in 7-14 days
9189710Ferrari Clip - 189710$0.59Available, ships in 3-6 days
10909581Ferrari Oil Pickup - 909581$442.56Special order, ships in 7-14 days
11865758Ferrari O-Ring - 865758$28.39Special order, ships in 7-14 days
12100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
13102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1412601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
1510300711Ferrari Threaded Drain Plug - 10300711$4.59In stock
1610261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
17845767Ferrari Tubo Mandata Olio - 845767$983.50Special order, ships in 7-14 days
18862084Ferrari Gasket - 862084$7.84Available, ships in 3-6 days
1912578011Ferrari Flanged Nyloc Nut - 12578011$0.31Available, ships in 3-6 days
2011001124Ferrari Stud Bolt - 11001124$137.67Available, ships in 3-6 days
21103021Ferrari O Ring-103021$3.51In stock
22231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
22231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
23746453Ferrari Tubo Ritorno Olio - 746453$934.32Special order, ships in 7-14 days
24139934Ferrari Radiator Tank Pipe to Oil Tank O-Ring - 139934$2.15In stock
25256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
26777796Ferrari Oil Tank Heat Shield - 777796$835.97Special order, ships in 7-14 days
2785692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
28772341Ferrari Tubo Da Serb. Olio A Polmone - 772341$467.15Special order, ships in 7-14 days
29868624Ferrari Bracket - 868624$5.14Special order, ships in 7-14 days
30743029Ferrari Pipe From RH Head Tank - 743029$295.03Special order, ships in 7-14 days
3110884087Ferrari Clip - 10884087$0.54Special order, ships in 7-14 days
32776839Ferrari Screw - 776839$1.49Special order, ships in 7-14 days
33789073Ferrari Washer - 789073$0.59Special order, ships in 7-14 days
34149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
3612643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
37267798Ferrari Plug - 267798$15.47Special order, ships in 7-14 days
38309169Ferrari Bracket With Sheath - 309169$29.48Special order, ships in 7-14 days
39797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
40900041Ferrari O-Ring - 900041$20.51Special order, ships in 7-14 days
