Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.11 - FUEL TANK (diagram 0060)

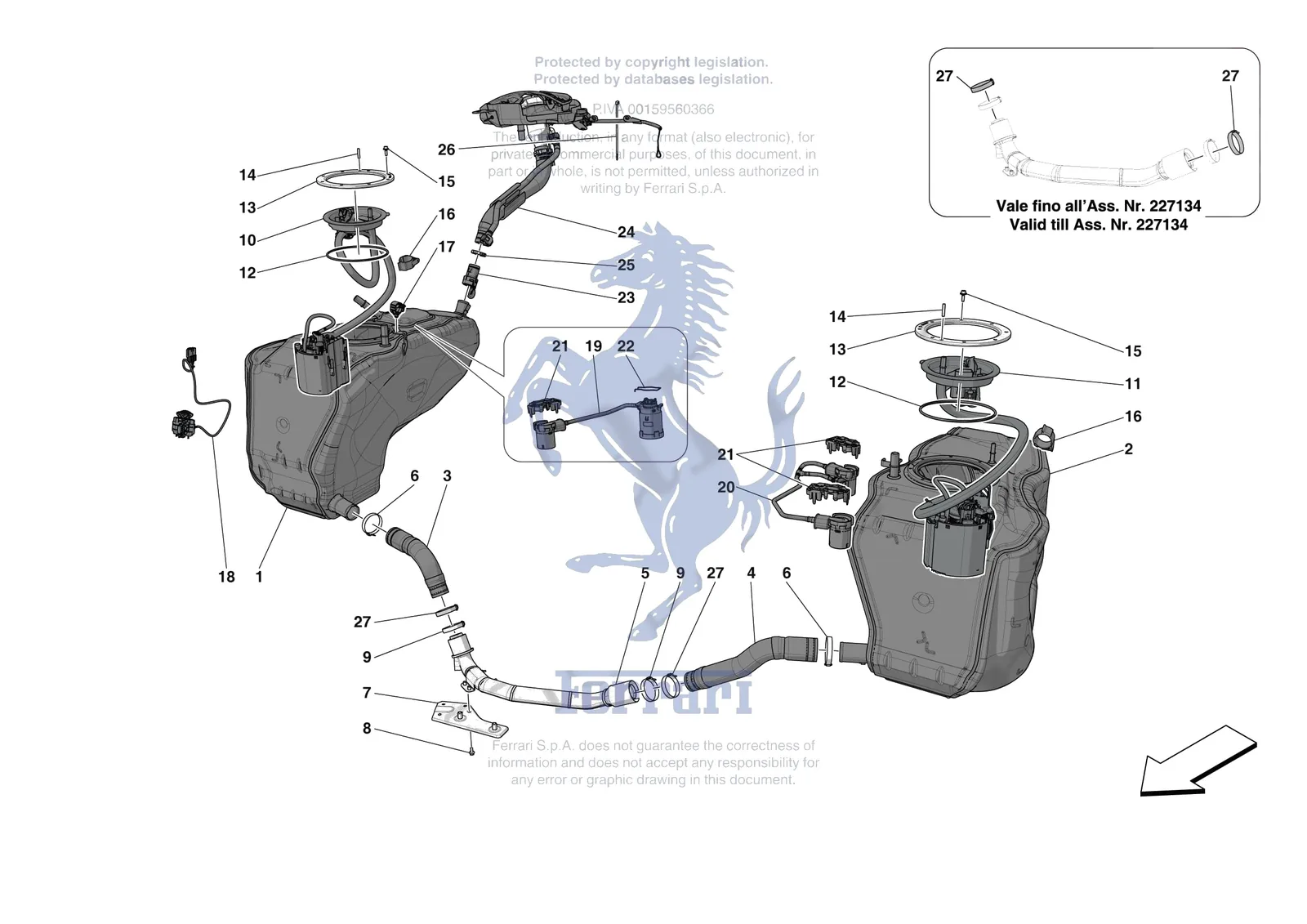

Exploded view of the [mechanical system] - d.11 - fuel tank on the Ferrari 296 GTS, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [MECHANICAL SYSTEM] - D.11 - FUEL TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0060.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 170127 | Ferrari Clip - 170127 | Superseded | Order 10718670 instead | |
| 850136 | Ferrari Cpl Fuel Pump E Flangia - 850136 | $1,998.24 | Special order, ships in 7-14 days | |
| 957847 | Ferrari Cpl Fuel Pump E Flangia - 957847 | Price on request | Contact us for price and availability | |
| 850148 | Ferrari Fuel Pump E Sens. Press Cp - 850148 | $2,206.39 | Special order, ships in 7-14 days | |
| 957848 | Ferrari Fuel Pump E Sens. Press Cp - 957848 | Price on request | Contact us for price and availability | |
| 181929 | Ferrari On-Off Valve - 181929 | $440.56 | Special order, ships in 7-14 days | |
| 1 | 780722 | Ferrari RH Fuel Tank With Caps And P - 780722 | $6,922.12 | Contact us to order |
| 2 | 940193 | Ferrari LH FUEL TANK - 940193 | Price on request | Contact us to order |
| 2 | 948368 | Ferrari LH Fuel Tank With Caps And P - 948368 | $7,933.76 | Contact us to order |
| 3 | 983355 | Ferrari RH Hose - 983355 | $295.03 | Special order, ships in 7-14 days |
| 4 | 983175 | Ferrari LH Hose - 983175 | $319.62 | Special order, ships in 7-14 days |
| 5 | 960934 | Ferrari Compl. Fuel Tank Connector Pipe - 960934 | $440.57 | Available, ships in 3-6 days |
| 5 | 988896 | Ferrari Compl. Fuel Tank Connector Pipe - 988896 | Price on request | Special order, ships in 7-14 days |
| 5 | 847117 | Ferrari Fuel Tank Connector Pipe - 847117 | $417.97 | Special order, ships in 7-14 days |
| 6 | 262116 | Ferrari Collar - 262116 | $6.10 | Available, ships in 3-6 days |
| 7 | 840354 | Ferrari Tank Pipe Mounting Bracket - 840354 | $83.57 | Special order, ships in 7-14 days |
| 8 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 9 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 10 | 838726 | Ferrari Fuel Pump E Sens. Press Cp - 838726 | $2,855.83 | Special order, ships in 7-14 days |
| 11 | 838682 | Ferrari Cpl Fuel Pump E Flangia - 838682 | $2,764.25 | Special order, ships in 7-14 days |
| 12 | 899649 | Ferrari O-Ring - 899649 | $32.76 | Special order, ships in 7-14 days |
| 13 | 753437 | Ferrari Flange Fastener Ring - 753437 | $1,617.32 | Special order, ships in 7-14 days |
| 14 | 11001124 | Ferrari Stud Bolt - 11001124 | $137.67 | Available, ships in 3-6 days |
| 15 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 16 | 254078 | Ferrari Clip - 254078 | $3.68 | Special order, ships in 7-14 days |
| 17 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 18 | 864964 | Ferrari Compl. Corner Adapter - 864964 | $1,008.09 | Special order, ships in 7-14 days |
| 19 | 801035 | Ferrari RH Fuel Tank Internal Valve - 801035 | $663.86 | Special order, ships in 7-14 days |
| 20 | 784217 | Ferrari LH Fuel Tank Internal Valve - 784217 | $417.97 | Special order, ships in 7-14 days |
| 21 | 856964 | Ferrari Pipe Valve Mount - 856964 | $15.22 | Special order, ships in 7-14 days |
| 22 | 954080 | Ferrari Hook-Up Wire - 954080 | $36.86 | Special order, ships in 7-14 days |
| 23 | 237407 | Ferrari On-Off Valve - 237407 | $56.52 | Special order, ships in 7-14 days |
| 24 | 55024680 | Ferrari Compl. Fuel Filler Neck - 55024680 | $2,543.09 | Special order, ships in 7-14 days |
| 24 | 744683 | Ferrari Compl. Fuel Filler Neck - 744683 | Superseded | Order 55024680 instead |
| 24 | 894278 | Ferrari Compl. Fuel Filler Neck - 894278 | Price on request | Contact us for price and availability |
| 24 | 894321 | Ferrari Compl. Fuel Filler Neck - 894321 | Superseded | Order 55024680 instead |
| 25 | 10718670 | Ferrari Collar - 10718670 | $2.59 | Available, ships in 3-6 days |
| 26 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 27 | 10815787 | Ferrari Clamp - 10815787 | $0.31 | Available, ships in 3-6 days |
