Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE (diagram 0067)

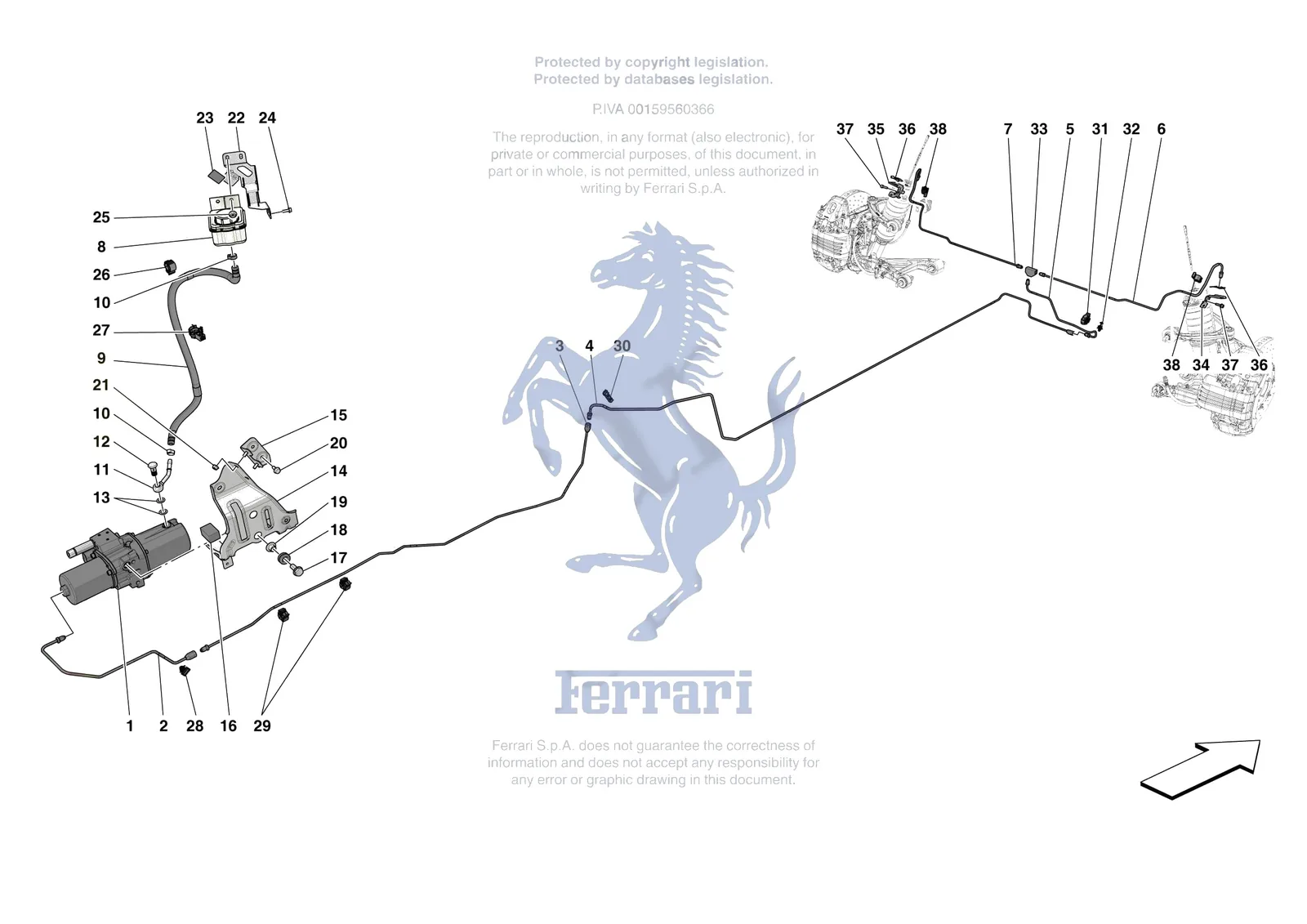

Exploded view of the [mechanical system] - d.18 - lifting the vehicle on the Ferrari 296 GTS, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0067.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 313722 | Ferrari Electric Pump - 313722 | Superseded | Order 844052 instead | |
| 793080 | Ferrari LH Lift System Hose Bracket - 793080 | $36.86 | Special order, ships in 7-14 days | |
| 749633 | Ferrari Lift System Pipe From Discon - 749633 | Superseded | Order 840588 instead | |
| 793079 | Ferrari RH Lift System Hose Bracket - 793079 | Superseded | Order 900096 instead | |
| 16286227 | Ferrari Screw - 16286227 | Superseded | Order 16286027 instead | |
| 255049 | Ferrari Screw 10x1.5x32 - 255049 | Superseded | Order 304224 instead | |
| 965928 | Ferrari Underbody Lift System Pipe - 965928 | Superseded | Order 840587 instead | |
| 1 | 844052 | Ferrari Electric Pump - 844052 | $5,673.99 | Special order, ships in 7-14 days |
| 2 | 749634 | Ferrari Lift System Pipe From Pump T - 749634 | $90.95 | Special order, ships in 7-14 days |
| 3 | 840588 | Ferrari Lift System Pipe From Discon - 840588 | $142.58 | Special order, ships in 7-14 days |
| 4 | 840587 | Ferrari Underbody Lift System Pipe - 840587 | $181.93 | Special order, ships in 7-14 days |
| 5 | 818435 | Ferrari Lift System Pipe From Discon - 818435 | $93.40 | Special order, ships in 7-14 days |
| 6 | 981007 | Ferrari Lift System Pipe From Block - 981007 | $135.20 | Special order, ships in 7-14 days |
| 7 | 981008 | Ferrari Lift System Pipe From Block - 981008 | $135.20 | Special order, ships in 7-14 days |
| 8 | 258573 | Ferrari Reservoir - 258573 | $86.04 | Special order, ships in 7-14 days |
| 9 | 905982 | Ferrari Hose - 905982 | $319.62 | Special order, ships in 7-14 days |
| 10 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 11 | 916497 | Ferrari Lift System Rigid Filler Pip - 916497 | $201.59 | Special order, ships in 7-14 days |
| 12 | 259642 | Ferrari Banjo Bolt Pipe Union - 259642 | $31.93 | Special order, ships in 7-14 days |
| 13 | 260155 | Ferrari Gasket D12- 18X1.5 - 260155 | $7.84 | Special order, ships in 7-14 days |
| 14 | 965937 | Ferrari Lift Pump Mounting Bracket - 965937 | $194.22 | Special order, ships in 7-14 days |
| 15 | 925640 | Ferrari Lifter Bracket - 925640 | $46.69 | Special order, ships in 7-14 days |
| 16 | 308995 | Ferrari Plug - 308995 | $4.39 | Special order, ships in 7-14 days |
| 17 | 304224 | Ferrari Screw 10x1.5x28 - 304224 | $30.57 | Special order, ships in 7-14 days |
| 18 | 255047 | Ferrari Grommet - 255047 | $7.40 | Available, ships in 3-6 days |
| 19 | 255048 | Ferrari Grommet Shim - 255048 | $5.65 | Special order, ships in 7-14 days |
| 20 | 16286027 | Ferrari Screw 6x16 - 16286027 | $1.02 | Available, ships in 3-6 days |
| 21 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 22 | 864176 | Ferrari Bracket - 864176 | $117.99 | Special order, ships in 7-14 days |
| 23 | 292835 | Ferrari Plug - 292835 | $1.86 | Special order, ships in 7-14 days |
| 24 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 25 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 26 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 27 | 266156 | Ferrari Clip - 266156 | $1.28 | Special order, ships in 7-14 days |
| 28 | 256962 | Ferrari Clip D. 4.7X1 - 256962 | $1.36 | Special order, ships in 7-14 days |
| 29 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 30 | 959208 | Ferrari Clip - 959208 | $3.03 | Special order, ships in 7-14 days |
| 31 | 234285 | Ferrari Clip - 234285 | $1.40 | Available, ships in 3-6 days |
| 32 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 33 | 292189 | Ferrari Lift System Distributor Block - 292189 | $169.62 | Special order, ships in 7-14 days |
| 34 | 900096 | Ferrari RH Lift System Hose Bracket - 900096 | $56.52 | Special order, ships in 7-14 days |
| 35 | 900097 | Ferrari LH Lift System Hose Bracket - 900097 | $51.62 | Special order, ships in 7-14 days |
| 36 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 37 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 38 | 303873 | Ferrari Clip D.6 - 303873 | $3.47 | Available, ships in 3-6 days |
