Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.23.02 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- (diagram 0073)

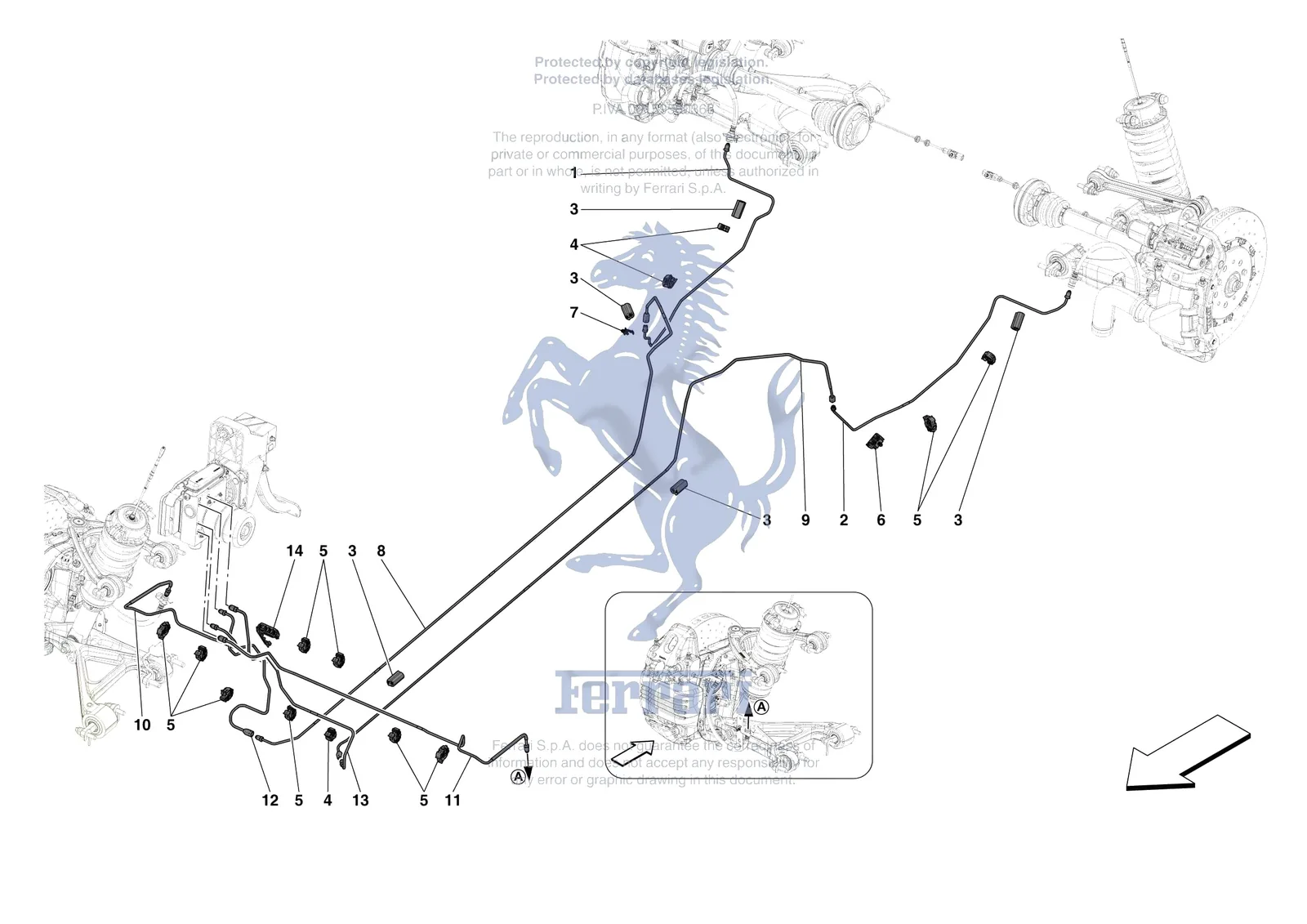

Exploded view of the [mechanical system] - d.23.02 - hydraulic brake control pipes -applicable for rhd- on the Ferrari 296 GTS, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.23.02 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1828976Ferrari Rear RH Brake Pipe - 828976$98.32Special order, ships in 7-14 days
2840590Ferrari Rear LH Brake Pipe - 840590$93.40Special order, ships in 7-14 days
3262737Ferrari Rubber Retainer - 262737$10.06Special order, ships in 7-14 days
4234284Ferrari Clip - 234284$1.23Available, ships in 3-6 days
5234285Ferrari Clip - 234285$1.40Available, ships in 3-6 days
6312163Ferrari Clip - 312163$1.99Special order, ships in 7-14 days
7291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
8939955Ferrari Underbody Rear RH Brake Pipe - 939955$140.13Special order, ships in 7-14 days
9840589Ferrari Underbody Rear LH Brake Pipe - 840589$135.20Special order, ships in 7-14 days
10979435Ferrari Front RH Brake Pipe - 979435$122.92Special order, ships in 7-14 days
11979681Ferrari Front LH Brake Pipe - 979681$125.37Special order, ships in 7-14 days
12979479Ferrari Rear RH Brake Pipe To Discon - 979479$95.87Special order, ships in 7-14 days
13979620Ferrari Rear LH Brake Pipe To Discon - 979620$95.87Special order, ships in 7-14 days
14234286Ferrari Clip - 234286$3.03Available, ships in 3-6 days

All 296 GTS diagrams
