Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS (diagram 0075)

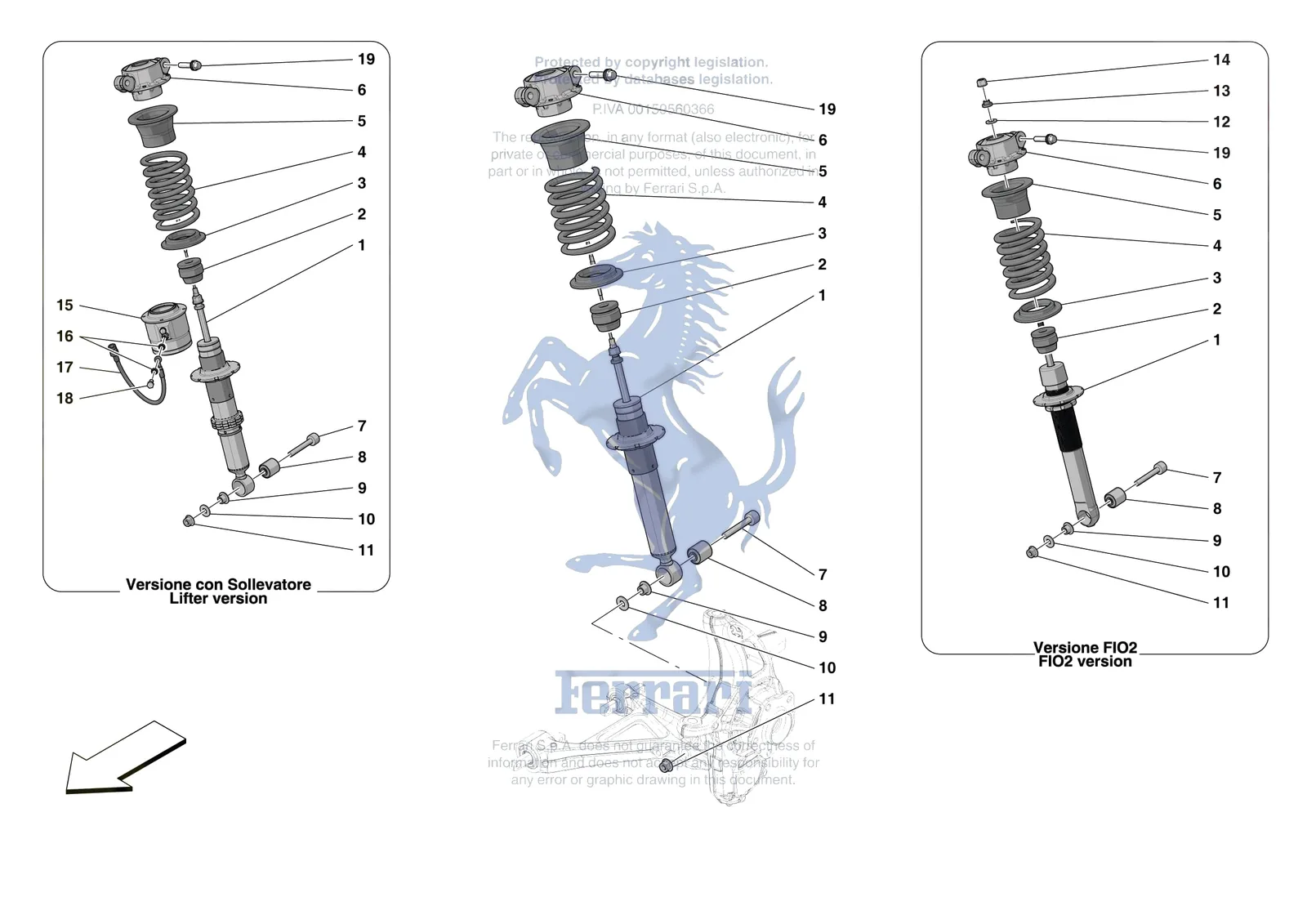

Exploded view of the [mechanical system] - d.25.01 - front suspension - shock absorbers on the Ferrari 296 GTS, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0075.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 891385 | Ferrari Front Shock Absorber - 891385 | Superseded | Order 942052 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 1 | 823604 | Ferrari Front Shock Absorber - 823604 | $2,575.87 | Special order, ships in 7-14 days |
| 1 | 863696 | Ferrari Front Shock Absorber - 863696 | $3,259.67 | Special order, ships in 7-14 days |
| 1 | 942052 | Ferrari Front Shock Absorber - 942052 | $5,210.32 | Special order, ships in 7-14 days |
| 2 | 281221 | Ferrari Endstop Bush - 281221 | $61.45 | Special order, ships in 7-14 days |
| 3 | 293648 | Ferrari Lower Spring Spacer D.78-1 - 293648 | $15.28 | Special order, ships in 7-14 days |
| 3 | 188996 | Ferrari Spring Support Pad - 188996 | $23.57 | Available, ships in 3-6 days |
| 4 | 810742 | Ferrari Front Suspension Spring - 810742 | $270.44 | Special order, ships in 7-14 days |
| 4 | 811425 | Ferrari Front Suspension Spring - 811425 | $223.73 | Special order, ships in 7-14 days |
| 4 | 814318 | Ferrari Molla Sosp Ant Titanio K=66N - 814318 | Superseded | Order 992167 instead |
| 4 | 992167 | Ferrari Molla Sosp Ant Titanio K=66N - 992167 | $6,901.04 | Special order, ships in 7-14 days |
| 5 | 293621 | Ferrari Spring Support Pad - 293621 | $28.39 | Available, ships in 3-6 days |
| 5 | 293649 | Ferrari Upper Spring Spacer Rubber - 293649 | $26.20 | Special order, ships in 7-14 days |
| 6 | 340250 | Ferrari Compl. Shock Absorber Retainer Cap - 340250 | $393.38 | Special order, ships in 7-14 days |
| 7 | 237297 | Ferrari Screw TCEI M12 x 1.25 x 8 - 237297 | $58.98 | Special order, ships in 7-14 days |
| 8 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 9 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 10 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 11 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 12 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 13 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 14 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 15 | 300214 | Ferrari Actuator Complete - 300214 | $2,162.69 | Special order, ships in 7-14 days |
| 16 | 259638 | Ferrari Gasket 8.7-14 - 259638 | $21.60 | Special order, ships in 7-14 days |
| 17 | 277168 | Ferrari Actuator Pipe - 277168 | $240.94 | Special order, ships in 7-14 days |
| 18 | 261587 | Ferrari Union - 261587 | $49.14 | Special order, ships in 7-14 days |
| 19 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
