Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

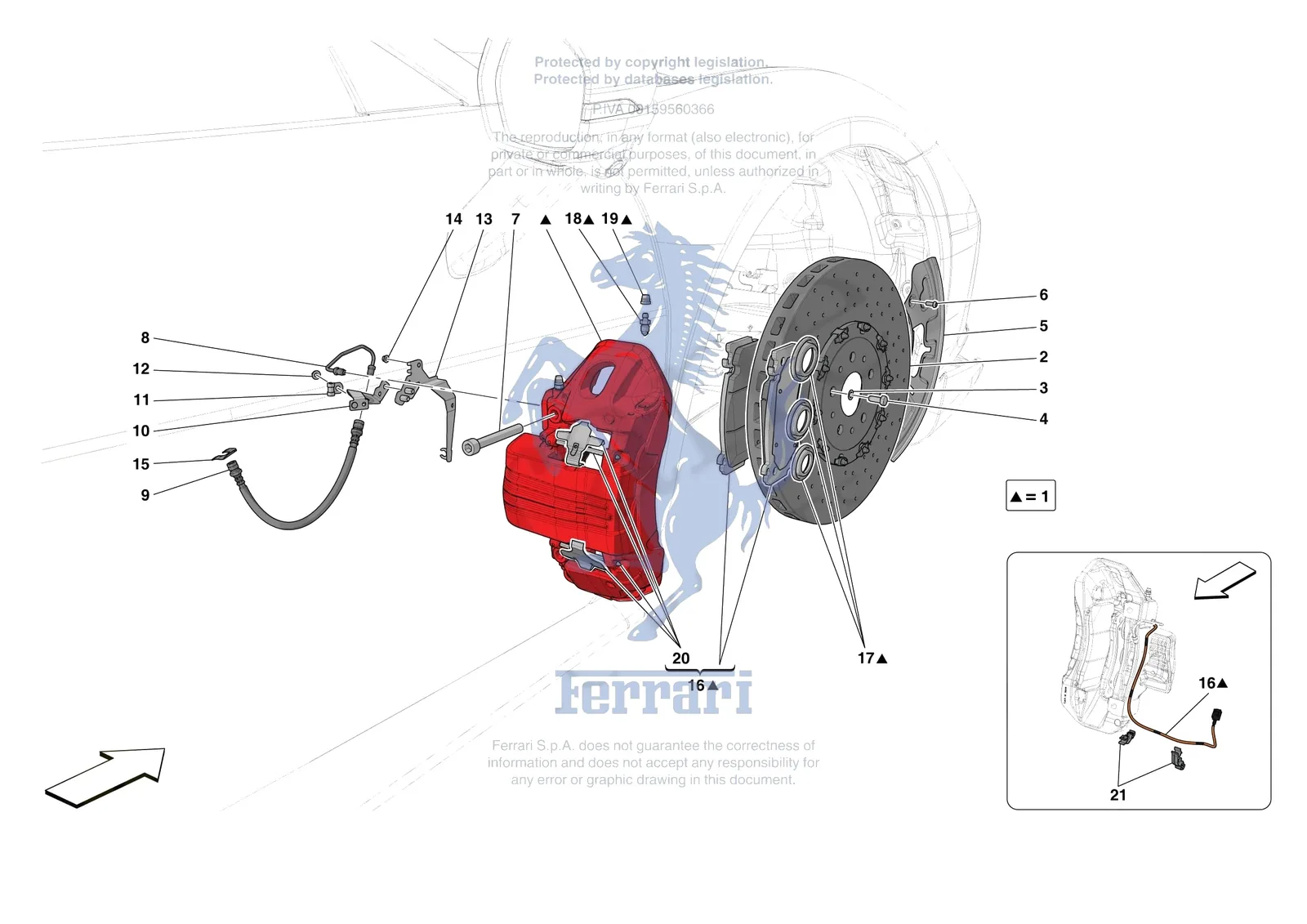

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari 296 GTS, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0077.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 14048115 | Ferrari Nut - 14048115 | Superseded | Order 14058411 instead | |
| 14048611 | Ferrari Nut - 14048611 | Superseded | Order 14058411 instead | |
| 14048615 | Ferrari Nut - 14048615 | Superseded | Order 14058411 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 1 | 776902 | Ferrari Compl. LH Front Calliper - 776902 | $8,188.73 | Special order, ships in 7-14 days |
| 1 | 776904 | Ferrari Compl. LH Front Calliper - 776904 | $8,324.05 | Special order, ships in 7-14 days |
| 1 | 776906 | Ferrari Compl. LH Front Calliper - 776906 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776908 | Ferrari Compl. LH Front Calliper - 776908 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776910 | Ferrari Compl. LH Front Calliper - 776910 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776912 | Ferrari Compl. LH Front Calliper - 776912 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776914 | Ferrari Compl. LH Front Calliper - 776914 | $9,121.27 | Special order, ships in 7-14 days |
| 1 | 776916 | Ferrari Compl. LH Front Calliper - 776916 | $8,080.50 | Special order, ships in 7-14 days |
| 1 | 776918 | Ferrari Compl. LH Front Calliper - 776918 | $9,121.27 | Special order, ships in 7-14 days |
| 1 | 776903 | Ferrari Compl. RH Front Calliper - 776903 | $8,188.73 | Special order, ships in 7-14 days |
| 1 | 776905 | Ferrari Compl. RH Front Calliper - 776905 | $8,324.05 | Special order, ships in 7-14 days |
| 1 | 776907 | Ferrari Compl. RH Front Calliper - 776907 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776909 | Ferrari Compl. RH Front Calliper - 776909 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776911 | Ferrari Compl. RH Front Calliper - 776911 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776913 | Ferrari Compl. RH Front Calliper - 776913 | $8,550.93 | Special order, ships in 7-14 days |
| 1 | 776915 | Ferrari Compl. RH Front Calliper - 776915 | $9,121.27 | Special order, ships in 7-14 days |
| 1 | 776917 | Ferrari Compl. RH Front Calliper - 776917 | $8,080.50 | Special order, ships in 7-14 days |
| 1 | 776919 | Ferrari Compl. RH Front Calliper - 776919 | $9,121.27 | Special order, ships in 7-14 days |
| 1 | 859588 | Ferrari COMPLETE L.H. FRONT CALIPER - 859588 | Price on request | Contact us for price and availability |
| 1 | 859985 | Ferrari COMPLETE L.H. FRONT CALIPER - 859985 | Price on request | Contact us for price and availability |
| 1 | 859987 | Ferrari COMPLETE L.H. FRONT CALIPER - 859987 | Price on request | Contact us for price and availability |
| 1 | 859989 | Ferrari COMPLETE L.H. FRONT CALIPER - 859989 | Price on request | Contact us for price and availability |
| 1 | 859991 | Ferrari COMPLETE L.H. FRONT CALIPER - 859991 | Price on request | Contact us for price and availability |
| 1 | 859993 | Ferrari COMPLETE L.H. FRONT CALIPER - 859993 | Price on request | Contact us for price and availability |
| 1 | 859997 | Ferrari COMPLETE L.H. FRONT CALIPER - 859997 | Price on request | Contact us for price and availability |
| 1 | 859999 | Ferrari COMPLETE L.H. FRONT CALIPER - 859999 | Price on request | Contact us for price and availability |
| 1 | 860001 | Ferrari Complete L.H. Front Caliper - 860001 | $9,371.06 | Special order, ships in 7-14 days |
| 1 | 859589 | Ferrari COMPLETE RH FRONT CALIPER - 859589 | Price on request | Contact us for price and availability |
| 1 | 860003 | Ferrari COMPLETE RH FRONT CALIPER - 860003 | Price on request | Contact us for price and availability |
| 1 | 860005 | Ferrari COMPLETE RH FRONT CALIPER - 860005 | Price on request | Contact us for price and availability |
| 1 | 860007 | Ferrari COMPLETE RH FRONT CALIPER - 860007 | Price on request | Contact us for price and availability |
| 1 | 860075 | Ferrari COMPLETE RH FRONT CALIPER - 860075 | Price on request | Contact us for price and availability |
| 1 | 860090 | Ferrari COMPLETE RH FRONT CALIPER - 860090 | Price on request | Contact us for price and availability |
| 1 | 860095 | Ferrari COMPLETE RH FRONT CALIPER - 860095 | Price on request | Contact us for price and availability |
| 1 | 860097 | Ferrari Complete RH Front Caliper - 860097 | $8,913.12 | Special order, ships in 7-14 days |
| 1 | 860099 | Ferrari Complete RH Front Caliper - 860099 | $9,094.20 | Special order, ships in 7-14 days |
| 2 | 776901 | Ferrari Front Brake Disc - 776901 | $9,200.11 | Available, ships in 3-6 days |
| 2 | 859585 | Ferrari Front Brake Disc - 859585 | $9,743.91 | Special order, ships in 7-14 days |
| 2 | 771436 | Ferrari FRONT BRAKE DISC 398X38 - 771436 | Superseded | Order 776901 instead |
| 3 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 4 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 5 | 321235 | Ferrari Front LH Disc Shield - 321235 | $81.11 | Special order, ships in 7-14 days |
| 5 | 321236 | Ferrari Front RH Disc Shield - 321236 | $81.11 | Special order, ships in 7-14 days |
| 6 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 7 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 8 | 910493 | Ferrari Tubo Freno Da Pinza A Flex.D - 910493 | $44.24 | Special order, ships in 7-14 days |
| 8 | 910492 | Ferrari Tubo Freno Da Pinza A Flex.S - 910492 | $44.24 | Special order, ships in 7-14 days |
| 9 | 777000 | Ferrari Brake Hose L.376 mm - 777000 | $103.25 | Available, ships in 3-6 days |
| 10 | 910495 | Ferrari LH Front Brake Bracket - 910495 | $41.76 | Special order, ships in 7-14 days |
| 10 | 910497 | Ferrari RH Front Brake Bracket - 910497 | $41.76 | Special order, ships in 7-14 days |
| 11 | 10440890 | Ferrari P Clip Bracket With Sheath - 10440890 | $1.04 | Available, ships in 3-6 days |
| 12 | 14058411 | Ferrari Flanged Nut M6 x 6mm - 14058411 | $0.38 | Available, ships in 3-6 days |
| 13 | 839203 | Ferrari LH Front Brake Hose Bracket - 839203 | $95.87 | Special order, ships in 7-14 days |
| 13 | 839204 | Ferrari RH Front Brake Hose Bracket - 839204 | $95.87 | Special order, ships in 7-14 days |
| 14 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 15 | 326837 | Ferrari Clip - 326837 | $4.77 | Available, ships in 3-6 days |
| 16 | 70005267 | Ferrari Front Brake Pad + Wear Sensor + Spring Kit - 70005267 | $4,701.38 | Special order, ships in 7-14 days |
| 16 | 70004529 | Ferrari Front Brake Pad Set with Spring - 70004529 | Superseded | Order 70005267 instead |
| 16 | 851790 | Ferrari Front Pad Set With Spring - 851790 | $5,363.84 | Special order, ships in 7-14 days |
| 17 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 18 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 19 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
| 20 | 70004533 | Ferrari Spring And Pin Kit - 70004533 | $238.47 | Special order, ships in 7-14 days |
| 21 | 310962 | Ferrari Clip - 310962 | $9.62 | Special order, ships in 7-14 days |
