Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS (diagram 0083)

Exploded view of the [mechanical system] - d.29 - complete wheels on the Ferrari 296 GTS, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

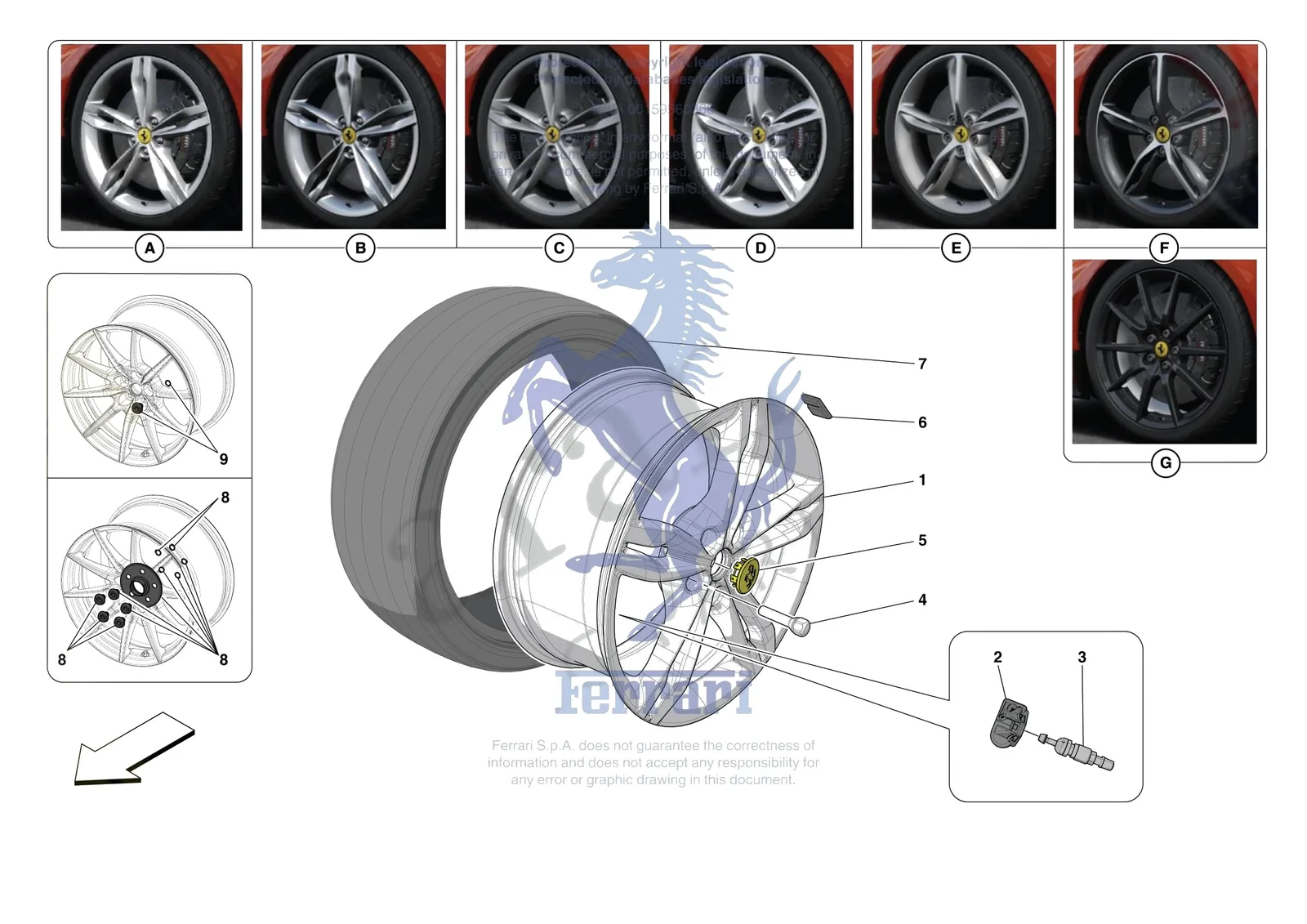

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
70004402Ferrari Kit Sostit. Sede Colonn. Cer - 70004402$571.13Special order, ships in 7-14 days
70004351Ferrari Kit Sostit.Parti In All. Cer - 70004351SupersededOrder 70005123 instead
108947Ferrari Push In Hub Cap - 108947SupersededOrder 55059092 instead
226245Ferrari Push In Hub Cap - 226245SupersededOrder 55059092 instead
192724Ferrari Wheel Bolt - 192724SupersededOrder 55031812 instead
247702Ferrari Wheel Bolt L50.5-26.5F - 247702SupersededOrder 55031812 instead
170007636Ferrari Front Wheel - 70007636$15,463.70Special order, ships in 7-14 days
1966447Ferrari Front Wheel - 966447$2,248.03Special order, ships in 7-14 days
1976575Ferrari Front Wheel - 976575$18,069.79Special order, ships in 7-14 days
1984954Ferrari Front Wheel - 984954$3,095.22Special order, ships in 7-14 days
1984957Ferrari Front Wheel - 984957$3,220.11Special order, ships in 7-14 days
170007637Ferrari LH Front Wheel - 70007637$15,463.70Special order, ships in 7-14 days
1976807Ferrari LH Front Wheel - 976807$6,294.53Special order, ships in 7-14 days
1986211Ferrari LH Front Wheel - 986211$6,727.50Special order, ships in 7-14 days
1986212Ferrari LH Front Wheel - 986212$6,769.14Special order, ships in 7-14 days
170007640Ferrari LH Rear Wheel - 70007640$15,461.62Special order, ships in 7-14 days
1976570Ferrari LH Rear Wheel - 976570$6,648.41Special order, ships in 7-14 days
1986220Ferrari LH Rear Wheel - 986220$7,085.53Special order, ships in 7-14 days
1986223Ferrari LH Rear Wheel - 986223$7,127.15Special order, ships in 7-14 days
170007639Ferrari Rear Wheel - 70007639$15,463.70Special order, ships in 7-14 days
1976558Ferrari Rear Wheel - 976558$2,447.86Special order, ships in 7-14 days
1976577Ferrari Rear Wheel - 976577$17,186.61Special order, ships in 7-14 days
1984955Ferrari Rear Wheel - 984955$3,267.99Special order, ships in 7-14 days
1984956Ferrari Rear Wheel - 984956$3,220.11Special order, ships in 7-14 days
170007638Ferrari RH Front Wheel - 70007638$15,295.11Special order, ships in 7-14 days
1966456Ferrari RH Front Wheel - 966456$6,294.53Special order, ships in 7-14 days
1986213Ferrari RH Front Wheel - 986213$6,769.14Special order, ships in 7-14 days
1986217Ferrari RH Front Wheel - 986217$6,727.50Special order, ships in 7-14 days
170007641Ferrari RH Rear Wheel - 70007641$15,463.70Special order, ships in 7-14 days
1976579Ferrari RH Rear Wheel - 976579$6,648.41Special order, ships in 7-14 days
1986224Ferrari RH Rear Wheel - 986224$7,085.53Special order, ships in 7-14 days
1986229Ferrari RH Rear Wheel - 986229$7,127.15Special order, ships in 7-14 days
2939581Ferrari Tyre Pressure Monitoring System Wheel Sensor - 939581$393.38Available, ships in 3-6 days
2939582Ferrari Tyre Pressure Monitoring System Wheel Sensor - 939582$393.38Available, ships in 3-6 days
3913102Ferrari Tyre Valve - 913102$30.57Available, ships in 3-6 days
3913104Ferrari Tyre Valve - 913104$37.13Special order, ships in 7-14 days
4803384Ferrari Wheel Bolt L50.5-26 - 803384$24.47Available, ships in 3-6 days
455031812Ferrari Wheel Bolt L50.5-26.5 - 55031812$63.90Available, ships in 3-6 days
4206274Ferrari Wheel Bolt -Titanium M14x1.5x16 - 206274$348.38Available, ships in 3-6 days
5889561Ferrari Hub Cap - 889561$442.56Special order, ships in 7-14 days
5340066Ferrari Wheel Center Cap Set - 55059092/4SupersededOrder 55059092 instead
555059092Ferrari Wheel Centre Cap - 55059092$44.11Available, ships in 3-6 days
611096693Ferrari Adhesive Wheel Balancer Weight - 11096693$24.32Special order, ships in 7-14 days
6308296Ferrari Adhesive Wheel Balancer Weight - 308296$24.32Special order, ships in 7-14 days
870005123Ferrari Kit Sostit.Parti In All. Cer - 70005123$2,393.73Special order, ships in 7-14 days
970005124Ferrari Kit Sostit. Sede Colonn. Cer - 70005124$573.70Special order, ships in 7-14 days
