Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.37 - PLATES (diagram 0092)

Exploded view of the [mechanical system] - d.37 - plates on the Ferrari 296 GTS, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

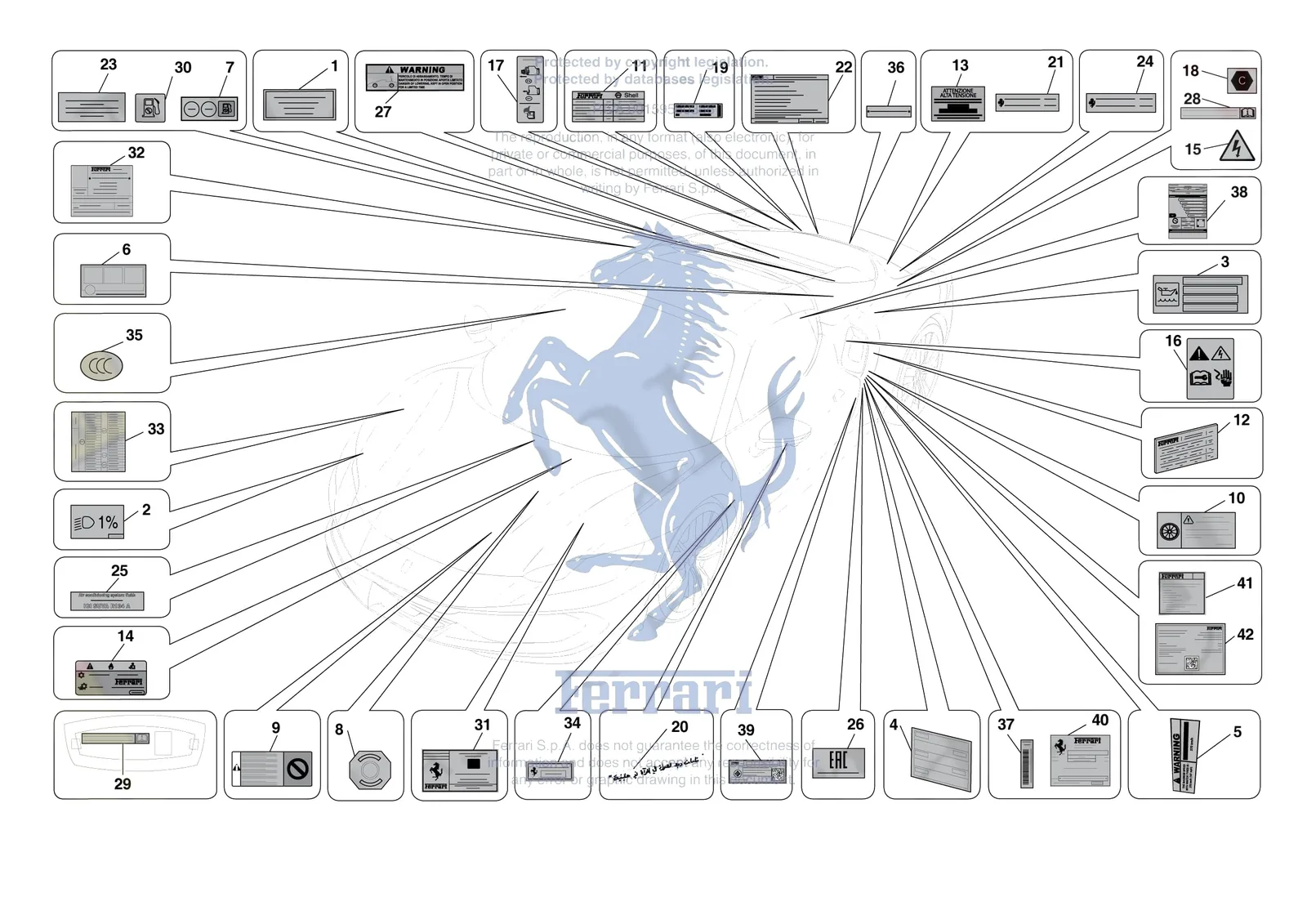

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.37 - PLATES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
864689Ferrari Carbon Wheel Warning Label - 864689SupersededOrder 909197 instead
255167Ferrari Engine Oil Check Label - 255167SupersededOrder 262089 instead
256569Ferrari Engine Oil Check Label - 256569SupersededOrder 262090 instead
258126Ferrari Engine Oil Check Label - 258126SupersededOrder 262089 instead
234909Ferrari Oil Level Check Plate - 234909$13.93Special order, ships in 7-14 days
245897Ferrari Oil Level Check Plate - 245897SupersededOrder 262090 instead
1258127Ferrari GlycoShell Radiator Antifreeze Label - 258127$11.85In stock
1297529Ferrari Radiator Contains Antifreeze Label - 297529$11.35Available, ships in 3-6 days
1305631Ferrari Radiator Contains Antifreeze Label - 305631$63.90Special order, ships in 7-14 days
2180092Ferrari Low Beam Approval Label - 180092$1.84Available, ships in 3-6 days
3262089Ferrari Oil Level Check Plate - 262089$20.56Available, ships in 3-6 days
3262090Ferrari Oil Level Check Plate - 262090$120.46Special order, ships in 7-14 days
3306543Ferrari Oil Level Check Plate - 306543$213.88Special order, ships in 7-14 days
4194621Ferrari Tyre Pressure Warning Label - 194621$36.86Special order, ships in 7-14 days
4218182Ferrari Tyre Pressure Warning Label - 218182$110.61Special order, ships in 7-14 days
4305632Ferrari Tyre Pressure Warning Label - 305632$49.14Special order, ships in 7-14 days
5293457Ferrari Max Speed With Winter Tyres Label - 293457$29.48Special order, ships in 7-14 days
5305630Ferrari Max Speed With Winter Tyres Label - 305630$78.66Special order, ships in 7-14 days
6924032Ferrari Filling Procedure Instructio - 924032$20.37Special order, ships in 7-14 days
6924030Ferrari Targhetta Procedura Rifornim - 924030$15.72Special order, ships in 7-14 days
6924031Ferrari Targhetta Procedura Rifornim - 924031$20.37Special order, ships in 7-14 days
7829199Ferrari 'Fuels' Label - 829199$5.14Special order, ships in 7-14 days
7946231Ferrari 'Fuels' Label - 946231$6.61Special order, ships in 7-14 days
8160889Ferrari Brake Fluid Reservoir Label - 160889$5.39Available, ships in 3-6 days
8980009Ferrari Targh. Adesiva Avvertenze Ol - 980009$20.62Special order, ships in 7-14 days
9954010Ferrari LVB - PHEV Battery Label - 954010$22.35Special order, ships in 7-14 days
9954012Ferrari LVB - PHEV Battery Label - 954012$36.86Special order, ships in 7-14 days
10909197Ferrari Carbon Wheel Warning Label - 909197$12.02Special order, ships in 7-14 days
11861757Ferrari Engine/Gearbox Oil Specifica - 861757$9.81Special order, ships in 7-14 days
11861865Ferrari Engine/Gearbox Oil Specifica - 861865$66.35Special order, ships in 7-14 days
11861814Ferrari ENGINE/GEARBOX OIL SPECIFICATIONS LABEL - 861814Price on requestContact us for price and availability
12783677Ferrari Bridgestone Pressure Label - 783677$93.40Special order, ships in 7-14 days
12783680Ferrari Bridgestone Pressure Label - 783680$93.40Special order, ships in 7-14 days
12783959Ferrari Bridgestone Pressure Label - 783959$66.35Special order, ships in 7-14 days
12783971Ferrari Bridgestone Pressure Label - 783971$31.93Special order, ships in 7-14 days
12863307Ferrari Bridgestone Pressure Label - 863307$15.72Special order, ships in 7-14 days
12863308Ferrari Bridgestone Pressure Label - 863308$21.85Special order, ships in 7-14 days
12783682Ferrari Michelin Pressure Label - 783682$93.40Special order, ships in 7-14 days
12783684Ferrari Michelin Pressure Label - 783684$93.40Special order, ships in 7-14 days
12783972Ferrari Michelin Pressure Label - 783972$66.35Special order, ships in 7-14 days
12783973Ferrari Michelin Pressure Label - 783973$66.35Special order, ships in 7-14 days
12863311Ferrari Michelin Pressure Label - 863311$15.72Special order, ships in 7-14 days
12863312Ferrari Michelin Pressure Label - 863312$49.14Special order, ships in 7-14 days
12856035Ferrari Tyre Pressure Label Bridges - 856035$6.61Special order, ships in 7-14 days
12856037Ferrari Tyre Pressure Label Bridges - 856037$7.84Special order, ships in 7-14 days
12856038Ferrari Tyre Pressure Label Michelin - 856038$6.61Special order, ships in 7-14 days
12856040Ferrari Tyre Pressure Label Michelin - 856040$12.02Special order, ships in 7-14 days
13279667Ferrari High Voltage Warning Label - 279667$24.55Special order, ships in 7-14 days
13284515Ferrari High Voltage Warning Label - 284515$115.54Special order, ships in 7-14 days
13306544Ferrari High Voltage Warning Label - 306544$15.98Special order, ships in 7-14 days
1455046735Ferrari Refrigerant Gas Label - 55046735$9.81Special order, ships in 7-14 days
14856011Ferrari Refrigerant Gas Label - 856011SupersededOrder 55046735 instead
15938710Ferrari High Voltage Warning Label - 938710$7.84Special order, ships in 7-14 days
16940162Ferrari High Voltage Warning Label - 940162$19.89Special order, ships in 7-14 days
17963366Ferrari Msd Label - 963366$6.86Special order, ships in 7-14 days
18890271Ferrari Charging Socket Compatibilit - 890271$6.86Special order, ships in 7-14 days
19255003Ferrari Radiator Label - 255003$41.76Special order, ships in 7-14 days
2068960300Ferrari Driver Side Rear View Mirror label - 68960300$51.62Special order, ships in 7-14 days
2255057698Ferrari "50S" ENGINE MAP LABEL/VECI LABEL - 55057698Price on requestContact us for price and availability
2255009107Ferrari 50S Engine Map Label/Veci La - 55009107$15.22Special order, ships in 7-14 days
22953669Ferrari 50S Engine Map Label/Veci La - 953669$15.47Special order, ships in 7-14 days
22967740Ferrari 50S Engine Map Label/Veci La - 967740$15.22Special order, ships in 7-14 days
23768347Ferrari Fuel Indication Label - 768347$21.60Special order, ships in 7-14 days
25294454Ferrari Air Con System Label - 294454$49.14Special order, ships in 7-14 days
26783669Ferrari Eac Label - 783669$93.40Special order, ships in 7-14 days
27831607Ferrari Tonneau Cover Label - 831607$18.42Special order, ships in 7-14 days
27907953Ferrari TONNEAU COVER LABEL - 907953Price on requestContact us for price and availability
27907957Ferrari TONNEAU COVER LABEL - 907957Price on requestContact us for price and availability
27907959Ferrari TONNEAU COVER LABEL - 907959Price on requestContact us for price and availability
28857310Ferrari Electric Vehicle Identificat - 857310$44.24Special order, ships in 7-14 days
29868074Ferrari Electric Vehicle Identificat - 868074$44.24Special order, ships in 7-14 days
3012858780Ferrari Adhesive Unleaded Petrol/Gasoline Label - 12858780$6.11Special order, ships in 7-14 days
41334592Ferrari Mercury Content Label - 334592Price on requestContact us for price and availability
