Ferrari 296 GTS — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0095)

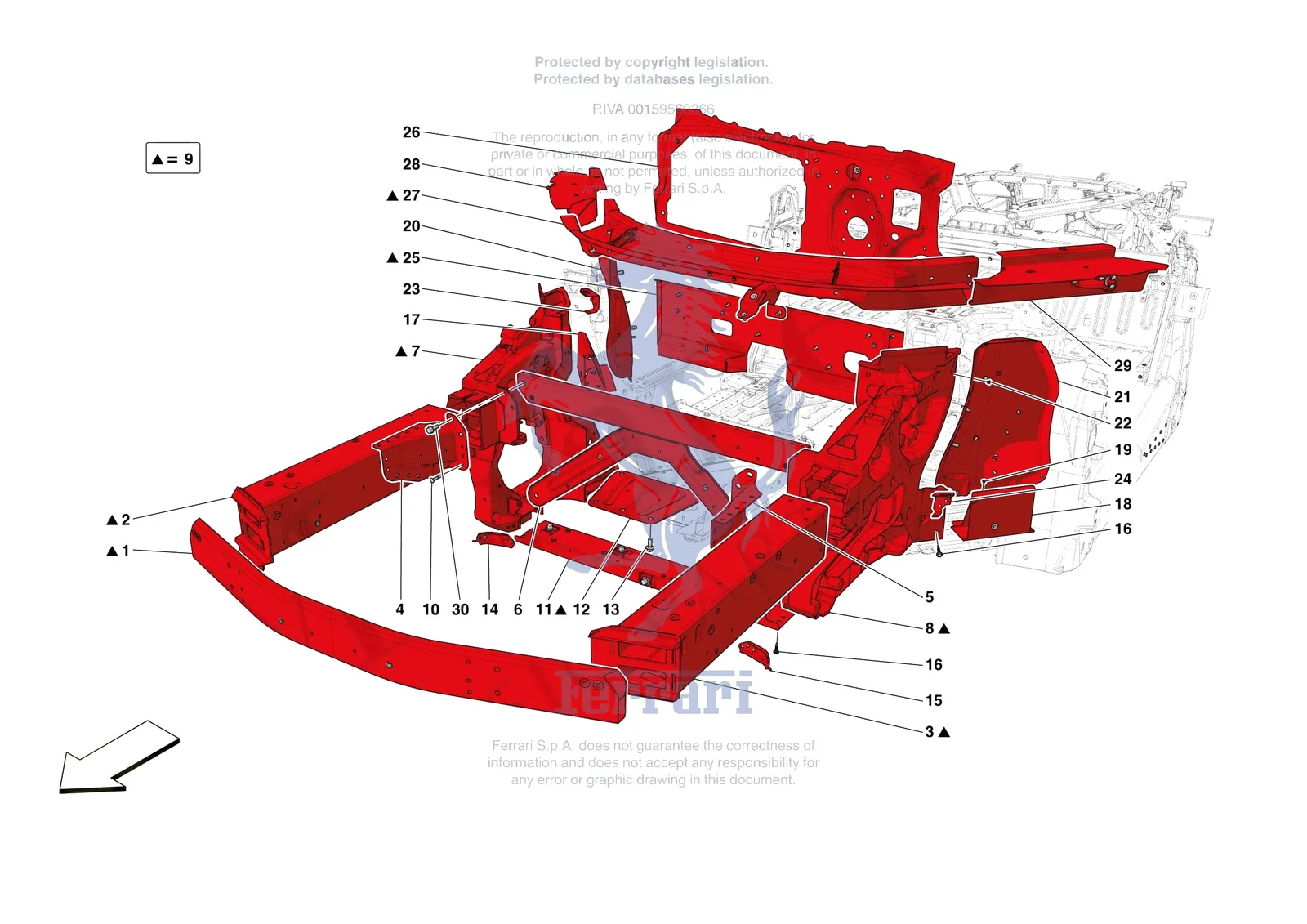

Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari 296 GTS, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0095.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985966812 | Ferrari Compl. Front Bumper Cross Me - 985966812 | $2,224.61 | Special order, ships in 7-14 days |
| 2 | 985807617 | Ferrari RH Front Spar - 985807617 | $3,587.51 | Special order, ships in 7-14 days |
| 3 | 985807435 | Ferrari LH Front Spar - 985807435 | $2,683.59 | Special order, ships in 7-14 days |
| 4 | 985807669 | Ferrari Compl. RH Front Strut Truss - 985807669 | $639.27 | Special order, ships in 7-14 days |
| 5 | 985807668 | Ferrari Compl. LH Front Strut Truss - 985807668 | $639.27 | Special order, ships in 7-14 days |
| 6 | 966502 | Ferrari Upper Front Casting Connecto - 966502 | $786.79 | Special order, ships in 7-14 days |
| 7 | 985807290 | Ferrari Compl. RH Front Shock Tower - 985807290 | $31,232.71 | Contact us to order |
| 8 | 985807284 | Ferrari Compl. LH Front Shock Tower - 985807284 | $30,692.50 | Contact us to order |
| 9 | 985868236 | Ferrari FRONT MODULE - 985868236 | $40,145.20 | Contact us to order |
| 9 | 985916667 | Ferrari FRONT MODULE - 985916667 | Price on request | Contact us to order |
| 10 | 204430 | Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430 | $2.82 | Available, ships in 3-6 days |
| 11 | 985817216 | Ferrari Lower Front Casting Connecto - 985817216 | $2,013.87 | Special order, ships in 7-14 days |
| 12 | 787455 | Ferrari Front Cross Member Connector - 787455 | $149.96 | Special order, ships in 7-14 days |
| 13 | 16288434 | Ferrari Screw 10X1.25X - 16288434 | $1.23 | Special order, ships in 7-14 days |
| 14 | 910039 | Ferrari RH Cross Member Reinforcemen - 910039 | $295.03 | Special order, ships in 7-14 days |
| 15 | 910038 | Ferrari LH Cross Member Reinforcemen - 910038 | $295.03 | Special order, ships in 7-14 days |
| 16 | 330777 | Ferrari Ejoform Fds M5X25 - 330777 | $8.72 | Special order, ships in 7-14 days |
| 17 | 985966702 | Ferrari RH Lower Passenger Compartme - 985966702 | $1,180.21 | Special order, ships in 7-14 days |
| 18 | 985966633 | Ferrari LH Lower Passenger Compartme - 985966633 | $1,229.39 | Special order, ships in 7-14 days |
| 20 | 985966735 | Ferrari Compl. RH Wheel Bay Cover - 985966735 | $2,013.87 | Special order, ships in 7-14 days |
| 21 | 985966772 | Ferrari Compl. LH Wheel Bay Cover - 985966772 | $2,107.53 | Special order, ships in 7-14 days |
| 23 | 968398 | Ferrari RH Front Brake Hose Bracket - 968398 | $61.45 | Special order, ships in 7-14 days |
| 24 | 968394 | Ferrari LH Front Brake Hose Bracket - 968394 | $66.35 | Special order, ships in 7-14 days |
| 25 | 985966568 | Ferrari Compl. Front Floor Cross Mem - 985966568 | $3,208.13 | Special order, ships in 7-14 days |
| 25 | 985790756 | Ferrari Compl. Front Floor Cross Member - 985790756 | $3,711.62 | Special order, ships in 7-14 days |
| 26 | 985966718 | Ferrari Front Firewall - 985966718 | $3,856.81 | Contact us to order |
| 27 | 985966765 | Ferrari Curved Windscreen Valence Pa - 985966765 | $2,943.53 | Special order, ships in 7-14 days |
| 27 | 985790650 | Ferrari Curved Windscreen Valence Panel - 985790650 | $3,493.83 | Special order, ships in 7-14 days |
| 28 | 985966764 | Ferrari Compl. RH Upper Front Diagon - 985966764 | $1,770.31 | Special order, ships in 7-14 days |
| 29 | 985966753 | Ferrari Compl. LH Upper Front Diagon - 985966753 | $1,770.31 | Special order, ships in 7-14 days |
| 30 | 16287234 | Ferrari SCREW - 16287234 | $1.05 | Available, ships in 3-6 days |
