Ferrari 296 GTS — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

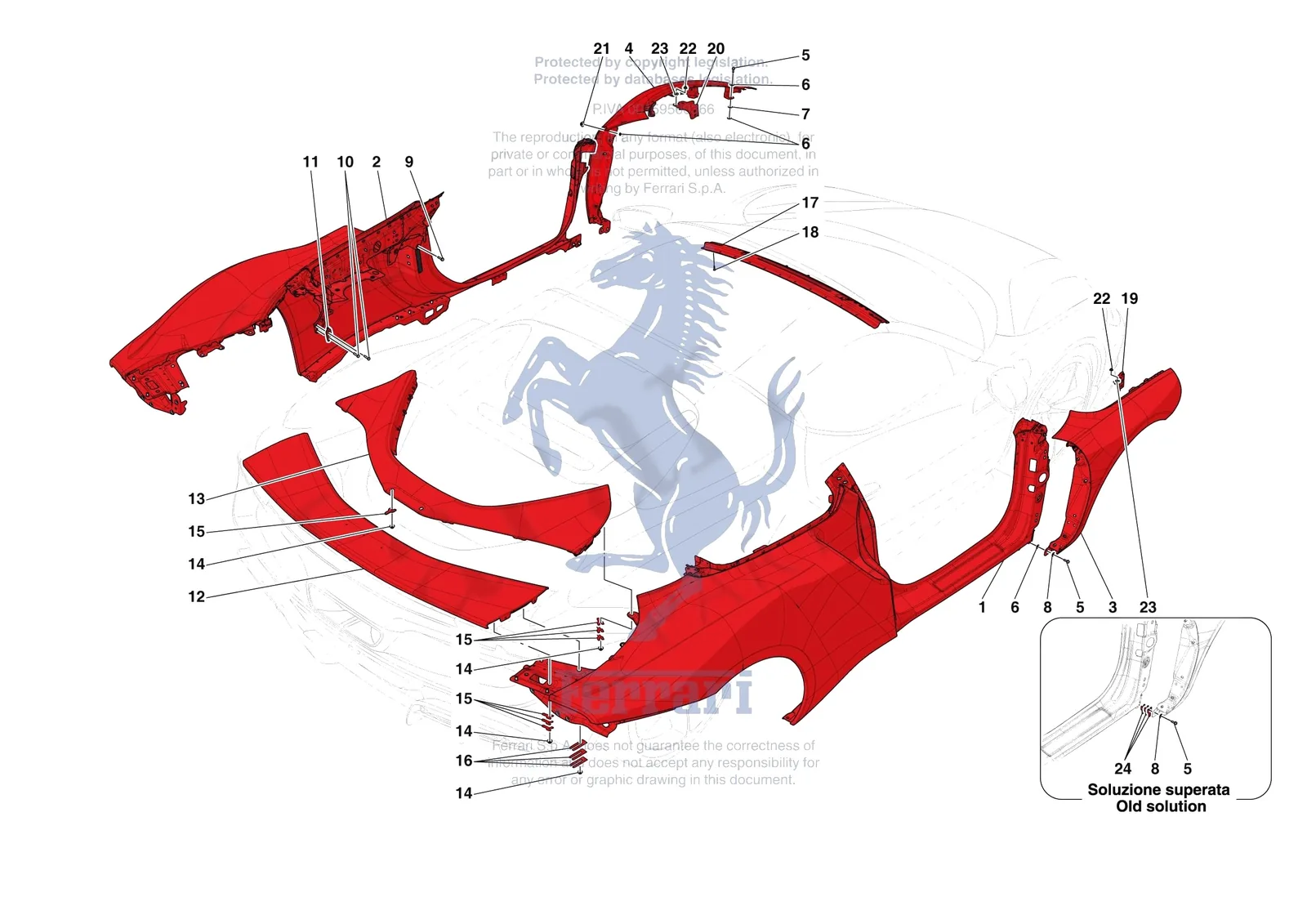

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari 296 GTS, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 955429 | Ferrari LH Fender Fastener Bracket - 955429 | Superseded | Order 918050 instead | |
| 955480 | Ferrari RH Fender Fastener Bracket - 955480 | Superseded | Order 918078 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985774499 | Ferrari Fiancata Dx. Semilav. - 985774499 | $45,647.15 | Contact us to order |
| 2 | 985774500 | Ferrari Fiancata Sx. Semilav. - 985774500 | $45,647.15 | Contact us to order |
| 3 | 985955481 | Ferrari Compl. RH Front Fender - 985955481 | $14,820.51 | Contact us to order |
| 3 | 985956673 | Ferrari Compl. RH Front Fender - 985956673 | $8,249.10 | Contact us to order |
| 4 | 985955438 | Ferrari Compl. LH Front Fender - 985955438 | $8,053.43 | Contact us to order |
| 4 | 985956661 | Ferrari Compl. LH Front Fender - 985956661 | $8,249.10 | Contact us to order |
| 5 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 6 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 7 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 8 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 9 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 10 | 205370 | Ferrari Screw M6 x 25 - 205370 | $0.96 | Special order, ships in 7-14 days |
| 11 | 912122 | Ferrari Adjustment Shim - 912122 | $17.42 | Special order, ships in 7-14 days |
| 12 | 985955423 | Ferrari Rear Spoiler - 985955423 | $6,456.12 | Special order, ships in 7-14 days |
| 13 | 985956537 | Ferrari Compl. Outer Flank Connectio - 985956537 | $6,594.28 | Special order, ships in 7-14 days |
| 14 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 15 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 16 | 821189 | Ferrari Adjuster Shim - 821189 | $5.14 | Special order, ships in 7-14 days |
| 17 | 985777651 | Ferrari Compl. Upper Windscreen Cros - 985777651 | $1,352.32 | Special order, ships in 7-14 days |
| 18 | 14639591 | Ferrari Rivet - 14639591 | $3.03 | Available, ships in 3-6 days |
| 19 | 918078 | Ferrari RH Fender Fastener Bracket - 918078 | $983.50 | Special order, ships in 7-14 days |
| 20 | 918050 | Ferrari LH Fender Fastener Bracket - 918050 | $983.50 | Special order, ships in 7-14 days |
| 21 | 13046114 | Ferrari Flanged Nut - 13046114 | $0.31 | Available, ships in 3-6 days |
| 22 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 23 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
