Ferrari 296 GTS — [VEHICLE TRIM] - E.03 - ROOF (diagram 0099)

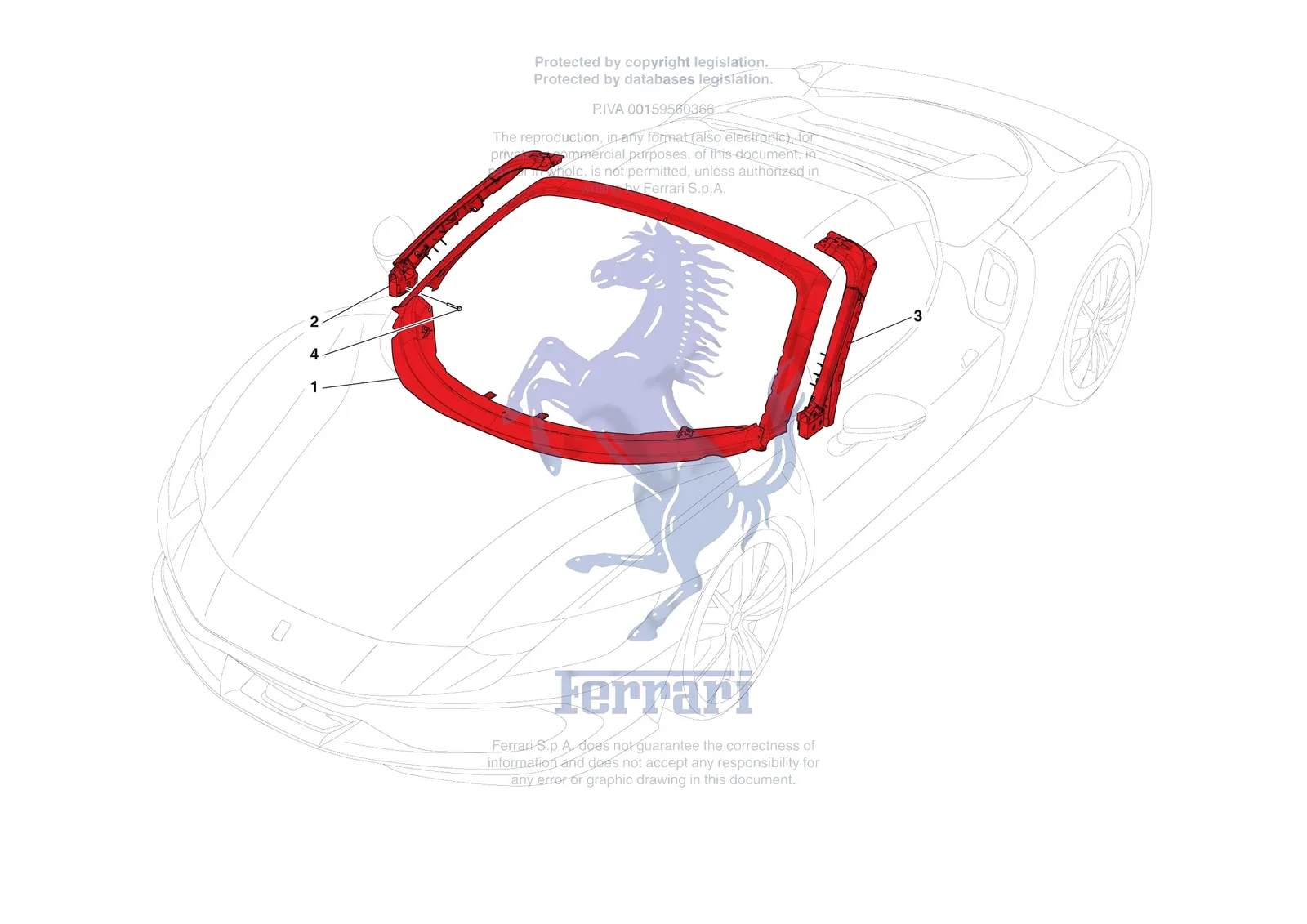

Exploded view of the [vehicle trim] - e.03 - roof on the Ferrari 296 GTS, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.03 - ROOF exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0099.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985777663 | Ferrari Windscreen Surround - 985777663 | $12,450.94 | Contact us to order |
| 2 | 985777783 | Ferrari Compl. RH Upper A-Pillar - 985777783 | $4,030.09 | Special order, ships in 7-14 days |
| 3 | 985777642 | Ferrari Compl. LH Upper A-Pillar - 985777642 | $4,030.09 | Special order, ships in 7-14 days |
| 4 | 18753234 | Ferrari Screw 8x55 - 18753234 | $4.12 | Special order, ships in 7-14 days |
