Ferrari 296 GTS — [VEHICLE TRIM] - E.04 - TONNEAU COVER (diagram 0100)
Exploded view of the [vehicle trim] - e.04 - tonneau cover on the Ferrari 296 GTS, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

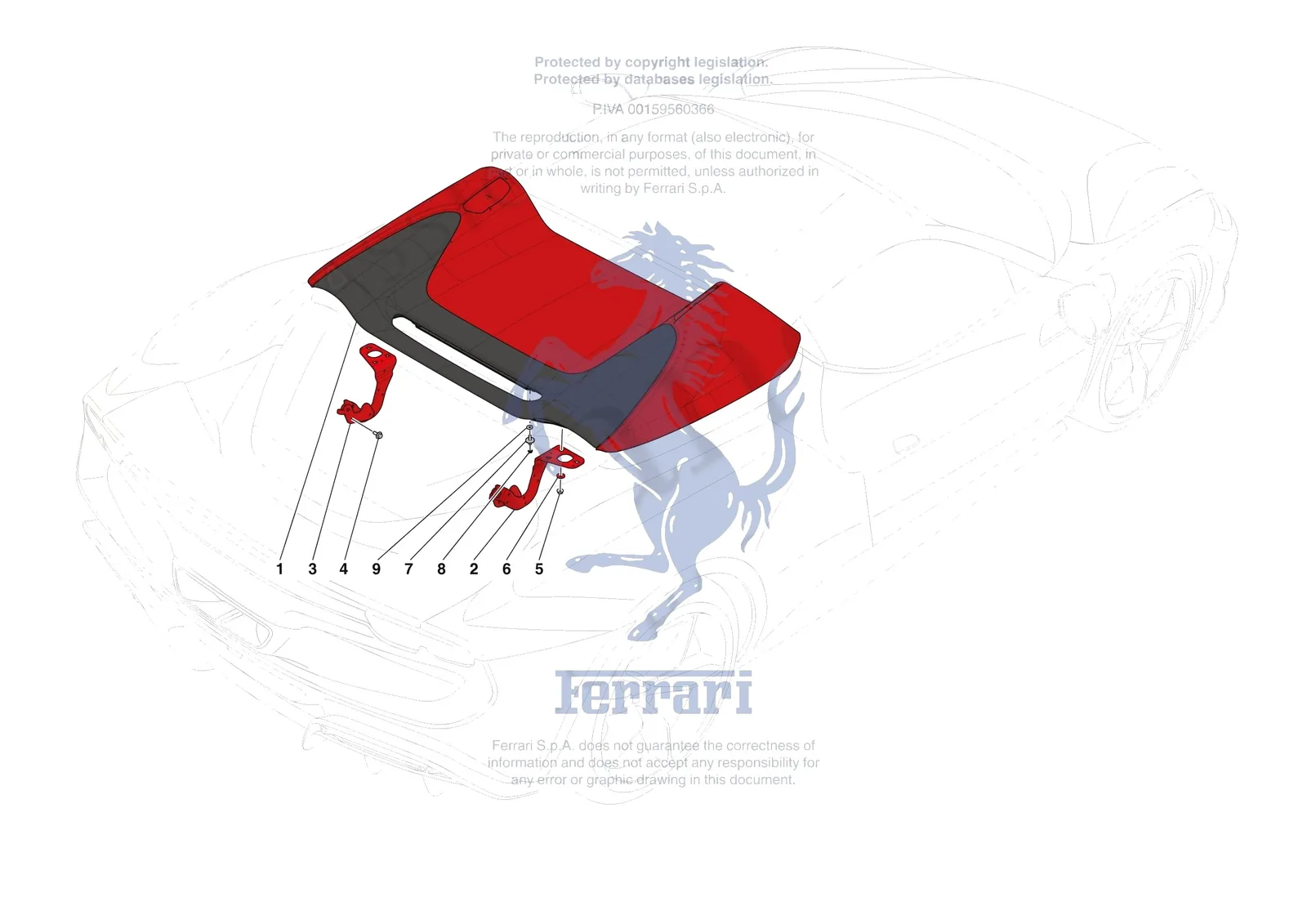

![Ferrari 296 GTS [VEHICLE TRIM] - E.04 - TONNEAU COVER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0100.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 1 | 985912456 | Ferrari Tonneau Cover - 985912456 | $22,493.80 | Special order, ships in 7-14 days |
| 2 | 777280 | Ferrari Compl. RH Hinge - 777280 | $417.97 | Special order, ships in 7-14 days |
| 3 | 777265 | Ferrari Compl. LH Hinge - 777265 | $417.97 | Special order, ships in 7-14 days |
| 4 | 82271400 | Ferrari Screw with Washer M8 x 25 TE - 82271400 | $2.59 | Available, ships in 3-6 days |
| 5 | 13046224 | Ferrari Nut - 13046224 | $0.73 | Available, ships in 3-6 days |
| 6 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 7 | 955113 | Ferrari Special Adjustment Screw - 955113 | $54.61 | Special order, ships in 7-14 days |
| 8 | 13046114 | Ferrari Flanged Nut - 13046114 | $0.31 | Available, ships in 3-6 days |
| 8 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 9 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
