Ferrari 296 GTS — [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE (diagram 0101)

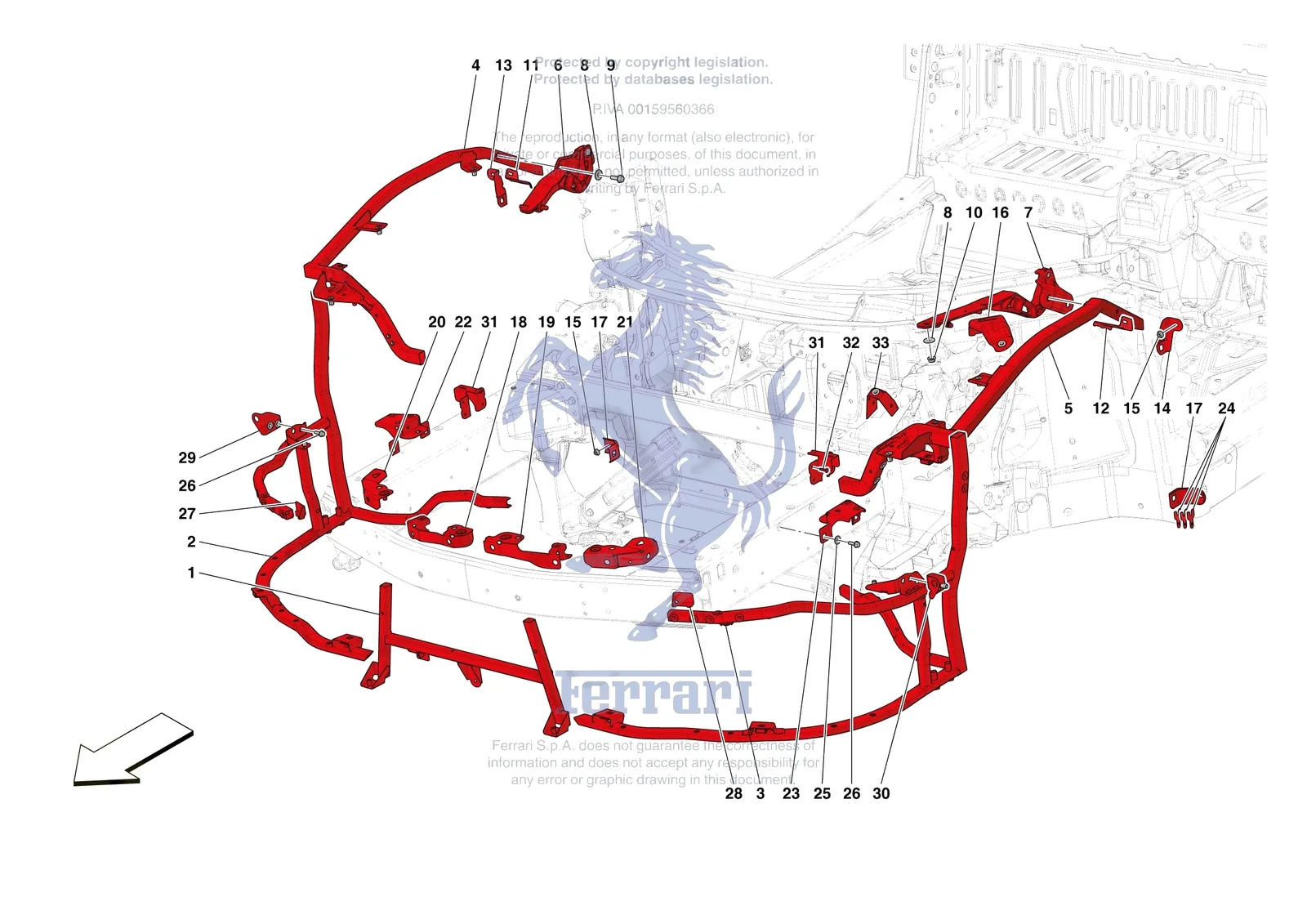

Exploded view of the [vehicle trim] - e.05 - front substructure on the Ferrari 296 GTS, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
900885Ferrari Adjustment Shim - 900885SupersededOrder 87583800 instead
957578Ferrari Lower Door Jamb Mounting Bra - 957578$36.86Special order, ships in 7-14 days
11617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
921747Ferrari Spess.Curvo Di Regolaz.A For - 921747SupersededOrder 87583800 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985957745Ferrari Compl. Centre Trellis Frame - 985957745$1,106.43Special order, ships in 7-14 days
2985957709Ferrari Compl. RH Front Subframe - 985957709$2,793.66Contact us to order
3985957693Ferrari Compl. LH Front Subframe - 985957693$2,812.39Contact us to order
4985957644Ferrari Compl. RH Fender Mounting - 985957644$1,671.97Special order, ships in 7-14 days
5985957678Ferrari Compl. LH Fender Mounting - 985957678$1,622.78Special order, ships in 7-14 days
6957565Ferrari Compl. RH Front Lid Hinge - 957565$1,057.27Special order, ships in 7-14 days
7957566Ferrari Compl. LH Front Lid Hinge - 957566$1,057.27Special order, ships in 7-14 days
813578301Ferrari Washer - 13578301$0.17Special order, ships in 7-14 days
916287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
1014059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
11750322Ferrari RH Bracket For Adjuster - 750322$36.86Special order, ships in 7-14 days
11957583Ferrari RH Bracket For Adjuster - 957583$34.40Special order, ships in 7-14 days
12750321Ferrari LH Bracket For Adjuster - 750321$36.86Special order, ships in 7-14 days
12957585Ferrari LH Bracket For Adjuster - 957585$34.40Special order, ships in 7-14 days
13957579Ferrari RH Upper Door Jamb Mounting - 957579$41.76Special order, ships in 7-14 days
14957580Ferrari LH Upper Door Jamb Mounting - 957580$41.76Special order, ships in 7-14 days
1513046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
16890415Ferrari Compl. LH Windscreen Wiper Mounting Bracket - 890415$66.35Special order, ships in 7-14 days
16883584Ferrari Compl. RH Windscreen Wiper M - 883584$76.19Special order, ships in 7-14 days
17889088Ferrari Lower Door Jamb Mounting Bra - 889088$36.86Special order, ships in 7-14 days
18985968674Ferrari Compl. RH Inner Bumper Mount - 985968674$319.62Special order, ships in 7-14 days
19985968676Ferrari Compl. LH Inner Bumper Mount - 985968676$319.62Special order, ships in 7-14 days
20985957685Ferrari Compl. RH Bumper Mount - 985957685$270.44Special order, ships in 7-14 days
21985957681Ferrari Compl. LH Bumper Mount - 985957681$270.44Special order, ships in 7-14 days
22802319Ferrari Compl. RH Inner Headlamp Fas - 802319$81.11Special order, ships in 7-14 days
23957576Ferrari Compl. LH Inner Headlamp Fas - 957576$108.16Special order, ships in 7-14 days
2487583800Ferrari Adjuster Shim 1.0mm - 87583800$3.68Special order, ships in 7-14 days
2512643724Ferrari/Maserati Washer - 12643724$0.20In stock
2616286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
27957589Ferrari RH Lateral Trellis Mounting - 957589$41.76Special order, ships in 7-14 days
28957590Ferrari LH Lateral Trellis Mounting - 957590$41.76Special order, ships in 7-14 days
29746852Ferrari Compl. Lower Fastener Bracket for RH Headlamp - 746852$39.31Special order, ships in 7-14 days
30746851Ferrari Compl. Lower Fastener Bracket for LH Headlamp - 746851$39.31Special order, ships in 7-14 days
31957588Ferrari Upper Tube Adjuster Bracket - 957588$39.31Special order, ships in 7-14 days
3214639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
33957594Ferrari Compl. Scuttle Drain-LH Wipe - 957594$68.83Special order, ships in 7-14 days
33786450Ferrari Compl. Scuttle Drain-RH Wipe - 786450$68.83Special order, ships in 7-14 days
