Ferrari 296 GTS — [VEHICLE TRIM] - E.08 - FRONT DOOR SUBSTRUCTURE (diagram 0104)

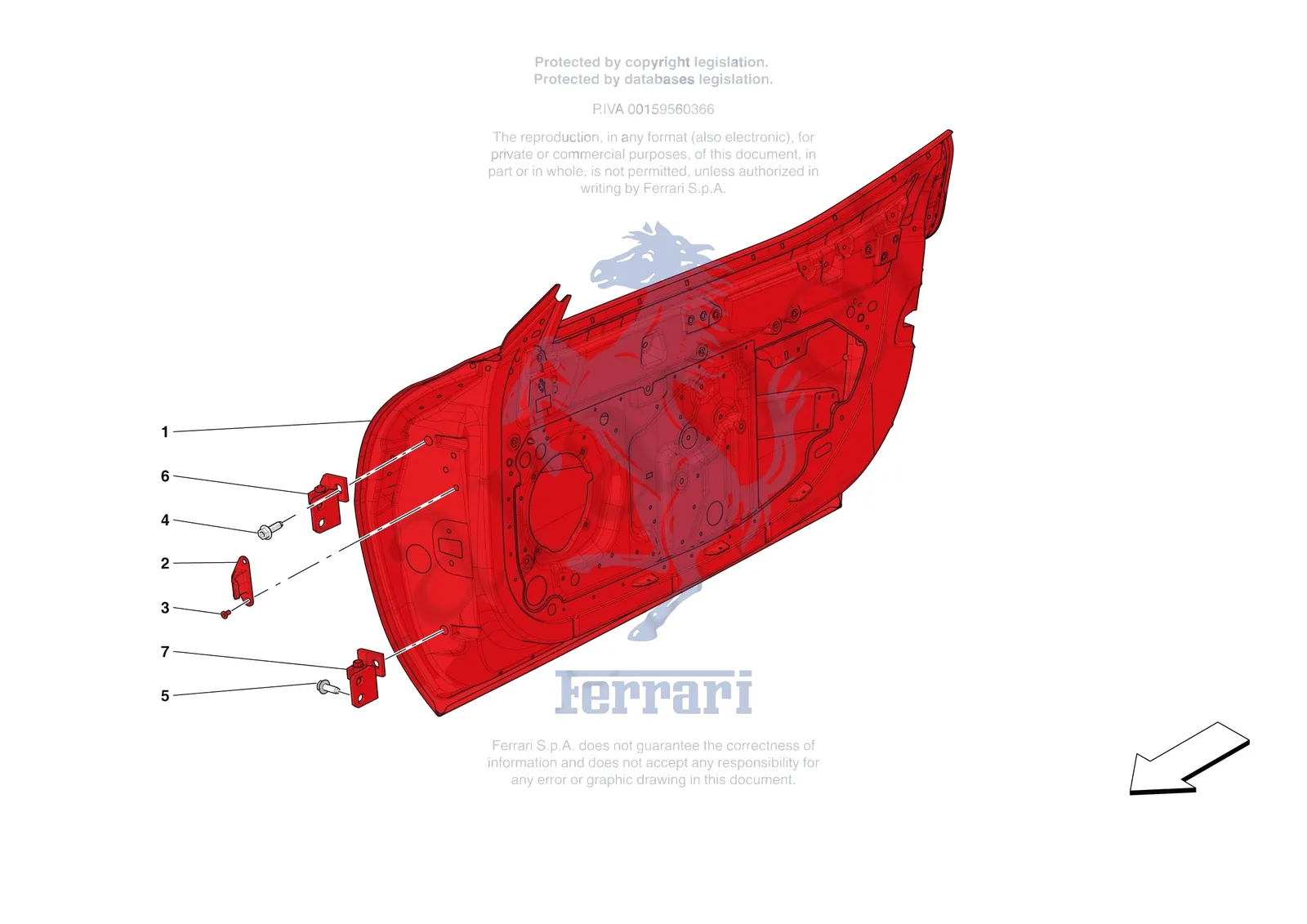

Exploded view of the [vehicle trim] - e.08 - front door substructure on the Ferrari 296 GTS, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.08 - FRONT DOOR SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0104.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14441127 | Ferrari Screw - 14441127 | $1.15 | Available, ships in 3-6 days | |
| 82505100 | Ferrari Screw - 82505100 | Superseded | Order 81267100 instead | |
| 1 | 985787638 | Ferrari LH Door Bodywork - 985787638 | $17,946.97 | Contact us to order |
| 1 | 985787639 | Ferrari Porta Lastrata Dx. Semilav. - 985787639 | $17,946.97 | Contact us to order |
| 2 | 789885 | Ferrari Door Safety Hook - 789885 | $103.25 | Special order, ships in 7-14 days |
| 3 | 14441234 | Ferrari Screw 6x12 - 14441234 | $0.34 | Available, ships in 3-6 days |
| 4 | 81267100 | Ferrari Screw M10 x 30 - 81267100 | $10.02 | Special order, ships in 7-14 days |
| 5 | 18754324 | Ferrari Screw M10 x 1.25 x 32 - 18754324 | $3.03 | Available, ships in 3-6 days |
| 6 | 83865100 | Ferrari LH Upper Hinge - 83865100 | $78.66 | Available, ships in 3-6 days |
| 6 | 83856100 | Ferrari RH Upper Hinge - 83856100 | $78.66 | Special order, ships in 7-14 days |
| 7 | 83864900 | Ferrari LH Lower Door Hinge - 83864900 | $78.66 | Available, ships in 3-6 days |
| 7 | 83856000 | Ferrari RH Lower Door Hinge - 83856000 | $78.66 | Special order, ships in 7-14 days |
