Ferrari 296 GTS — [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS (diagram 0110)

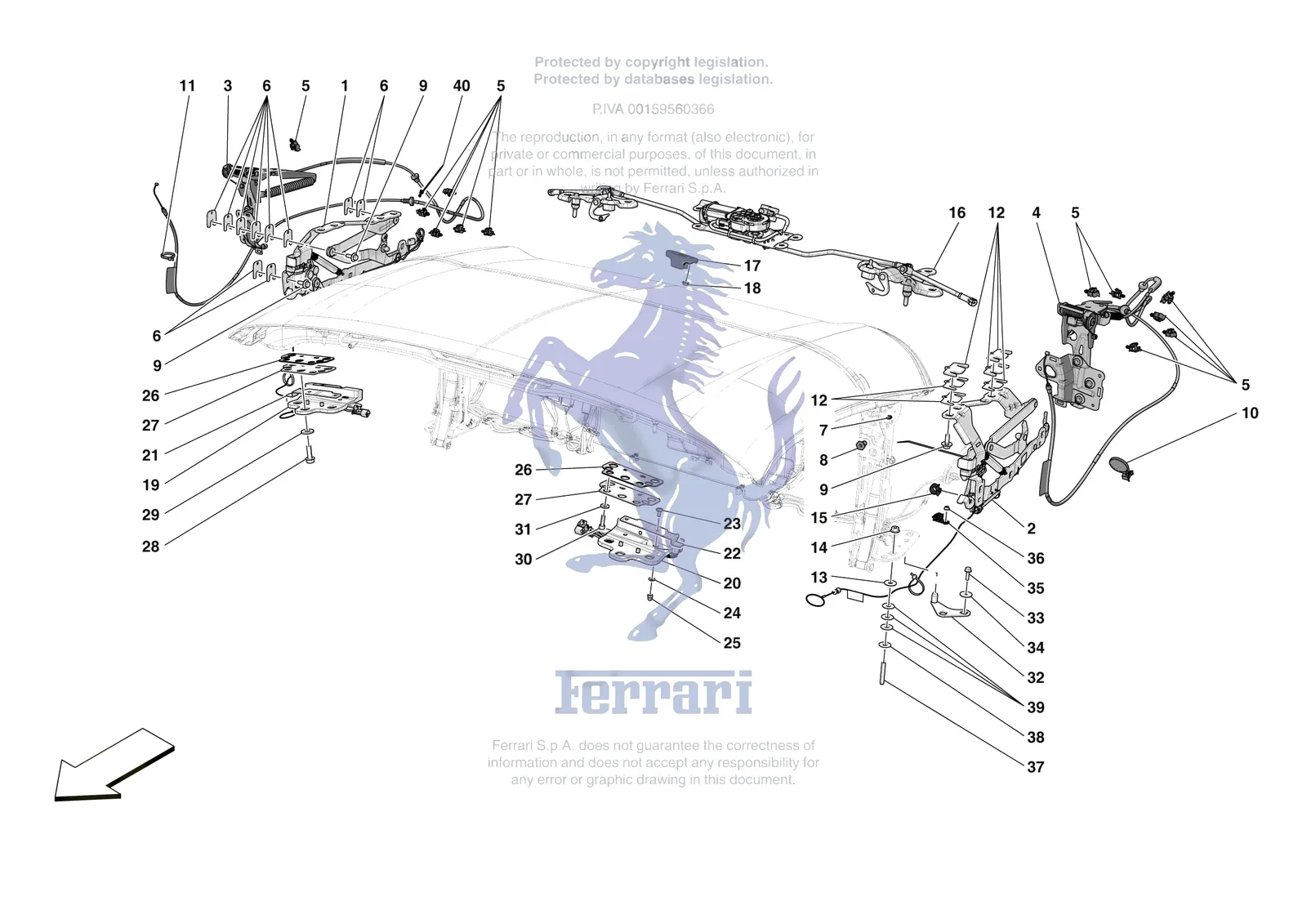

Exploded view of the [vehicle trim] - e.13.02 - roof - kinematics on the Ferrari 296 GTS, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
1968592Ferrari RH Tonneau Cover Kinematics - 968592$2,201.19Special order, ships in 7-14 days
2968589Ferrari LH Tonneau Cover Kinematics - 968589$2,248.03Special order, ships in 7-14 days
3801216Ferrari Compl. RH Flap - 801216$1,696.56Special order, ships in 7-14 days
4801214Ferrari Compl. LH Flap - 801214$1,696.56Special order, ships in 7-14 days
584093700Ferrari Clip - 84093700$2.82Special order, ships in 7-14 days
684508500Ferrari Tub Lifting Mechanism Fastener Shim 0.5mm - 84508500$9.16Special order, ships in 7-14 days
684508600Ferrari Tub Lifting Mechanism Fastener Shim 1.0mm - 84508600$9.16Special order, ships in 7-14 days
684508700Ferrari Tub Lifting Mechanism Fastener Shim 1.5mm - 84508700$13.74Special order, ships in 7-14 days
685422400Ferrari Tub Lifting Mechanism Fastener Shim 4.0mm - 85422400$6.31Special order, ships in 7-14 days
711087776Ferrari Circlip - 11087776$0.13Available, ships in 3-6 days
8320219Ferrari Pin M6 x 34 - 320219$7.40Special order, ships in 7-14 days
982271400Ferrari Screw with Washer M8 x 25 TE - 82271400$2.59Available, ships in 3-6 days
10242384Ferrari Clip - 242384$0.59Available, ships in 3-6 days
1110815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
1284807000Ferrari Spacer 0.5mm - 84807000$8.82Available, ships in 3-6 days
1284807100Ferrari Spacer 1.0mm - 84807100$8.82Available, ships in 3-6 days
1284842000Ferrari Spacer 3.0mm - 84842000$10.81Available, ships in 3-6 days
1312642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
1413046224Ferrari Nut - 13046224$0.73Available, ships in 3-6 days
15919383Ferrari Clip Omega - 919383$1.55Special order, ships in 7-14 days
1683977800Ferrari Latch System Complete - 83977800$3,788.88Special order, ships in 7-14 days
1783978100Ferrari LH Bumper Complete - 83978100$13.49Special order, ships in 7-14 days
1813046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
19749652Ferrari RH Striker - 749652$958.91Special order, ships in 7-14 days
2083977900Ferrari LH Striker Complete - 83977900$549.71Available, ships in 3-6 days
2184643500Ferrari RH Bracket - 84643500$21.14Special order, ships in 7-14 days
2284643400Ferrari LH Bracket - 84643400$21.14Special order, ships in 7-14 days
2385692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
2412637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
25168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
26866265Ferrari WINDSCREEN STRIKER PLATE - 866265$34.40Special order, ships in 7-14 days
2784503800Ferrari Shim Kit For Adjusting Roof Relative To Windscreen - 84503800$78.66Special order, ships in 7-14 days
2811617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
2816287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
29219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
3014305334Ferrari Screw M6 x 20 - 14305334$0.38Available, ships in 3-6 days
3112646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
32877194Ferrari Complete LH RHT Centering Bracket - 877194$98.32Special order, ships in 7-14 days
32877193Ferrari Complete RH RHT Centering Bracket - 877193$98.32Special order, ships in 7-14 days
3316286127Ferrari Screw 6x20 - 16286127$0.82Available, ships in 3-6 days
3412640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
35250733Ferrari Clip - 250733$1.67Special order, ships in 7-14 days
35262380Ferrari Clip - 262380$3.47Special order, ships in 7-14 days
3614058311Ferrari Flanged Nut M5 x 5 - 14058311$0.46Available, ships in 3-6 days
3713791321Ferrari Screw - 13791321$1.92Special order, ships in 7-14 days
3883595200Ferrari Flat Washer D. 8.15X - 83595200$2.59Special order, ships in 7-14 days
3983595100Ferrari Flat Washer D. 8.15X - 83595100$2.82Special order, ships in 7-14 days
40303339Ferrari Long Shank Clip - 303339$0.59Special order, ships in 7-14 days
