Ferrari 296 GTS — [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE (diagram 0116)
Exploded view of the [vehicle trim] - e.17 - front wheelhouse on the Ferrari 296 GTS, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

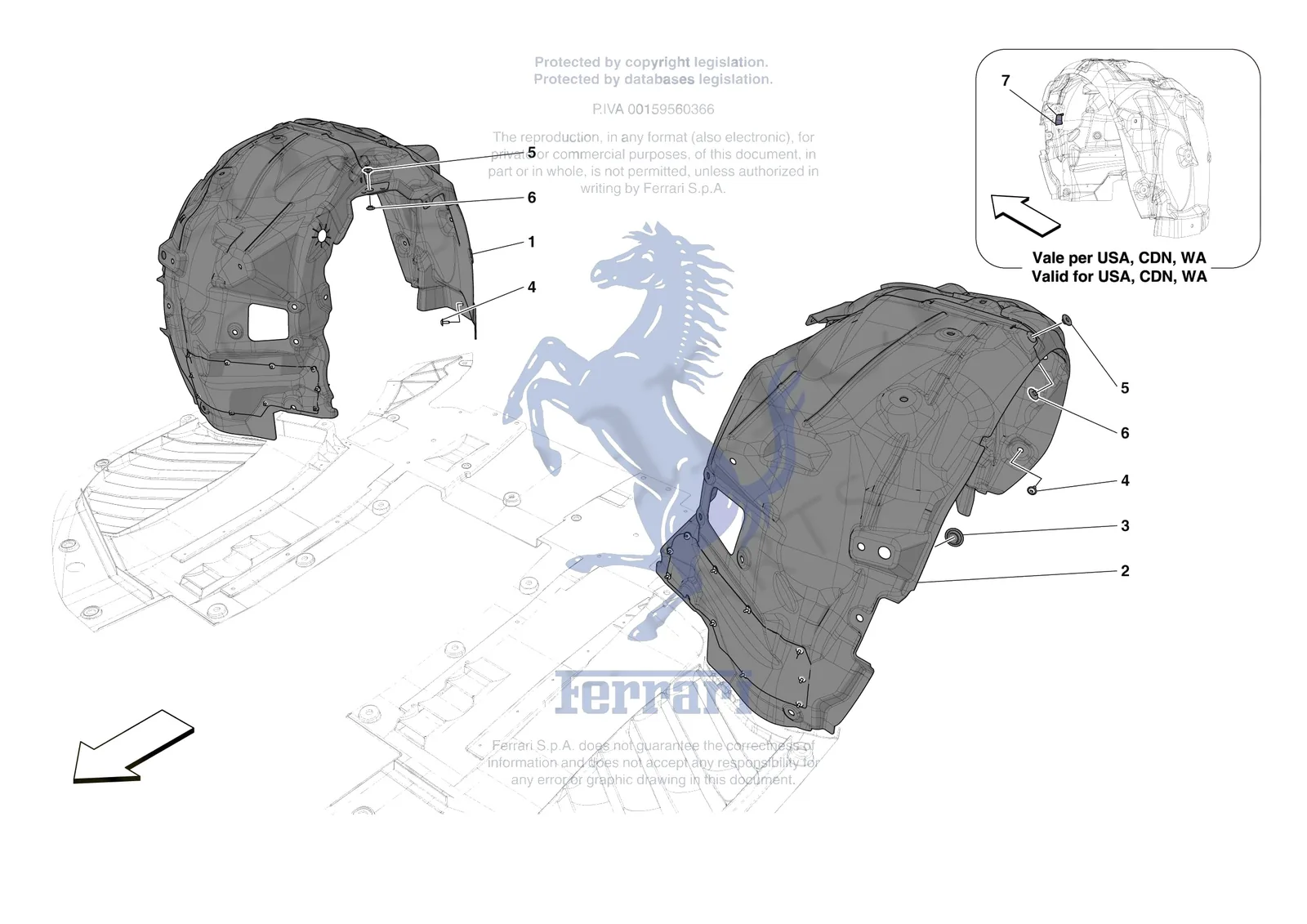

![Ferrari 296 GTS [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 881061 | Ferrari Screw M6x18 with Washer - 881061 | Superseded | Order 936581 instead | |
| 1 | 980592 | Ferrari Compl. RH Front Wheel House - 980592 | $568.23 | Special order, ships in 7-14 days |
| 1 | 861568 | Ferrari Compl. RH Front WheeLHouse - 861568 | $568.23 | Special order, ships in 7-14 days |
| 2 | 861569 | Ferrari Compl. LH Front WheeLHouse - 861569 | $568.23 | Special order, ships in 7-14 days |
| 2 | 980588 | Ferrari Compl. LH Front Wheelhouse - 980588 | $568.23 | Special order, ships in 7-14 days |
| 3 | 14506787 | Ferrari Rubber Plug D20 - 14506787 | $10.25 | Available, ships in 3-6 days |
| 4 | 936581 | Ferrari M6x18 Screw With Captive Washer - 936581 | $1.34 | Special order, ships in 7-14 days |
| 5 | 84247300 | Ferrari Male Clip - 84247300 | $2.82 | Available, ships in 3-6 days |
| 6 | 84247400 | Ferrari Female Clip - 84247400 | $2.59 | Available, ships in 3-6 days |
| 7 | 817257 | Ferrari Anti-Tamper Adhesive Plug - 817257 | $11.12 | Special order, ships in 7-14 days |
