Ferrari 296 GTS — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari 296 GTS, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

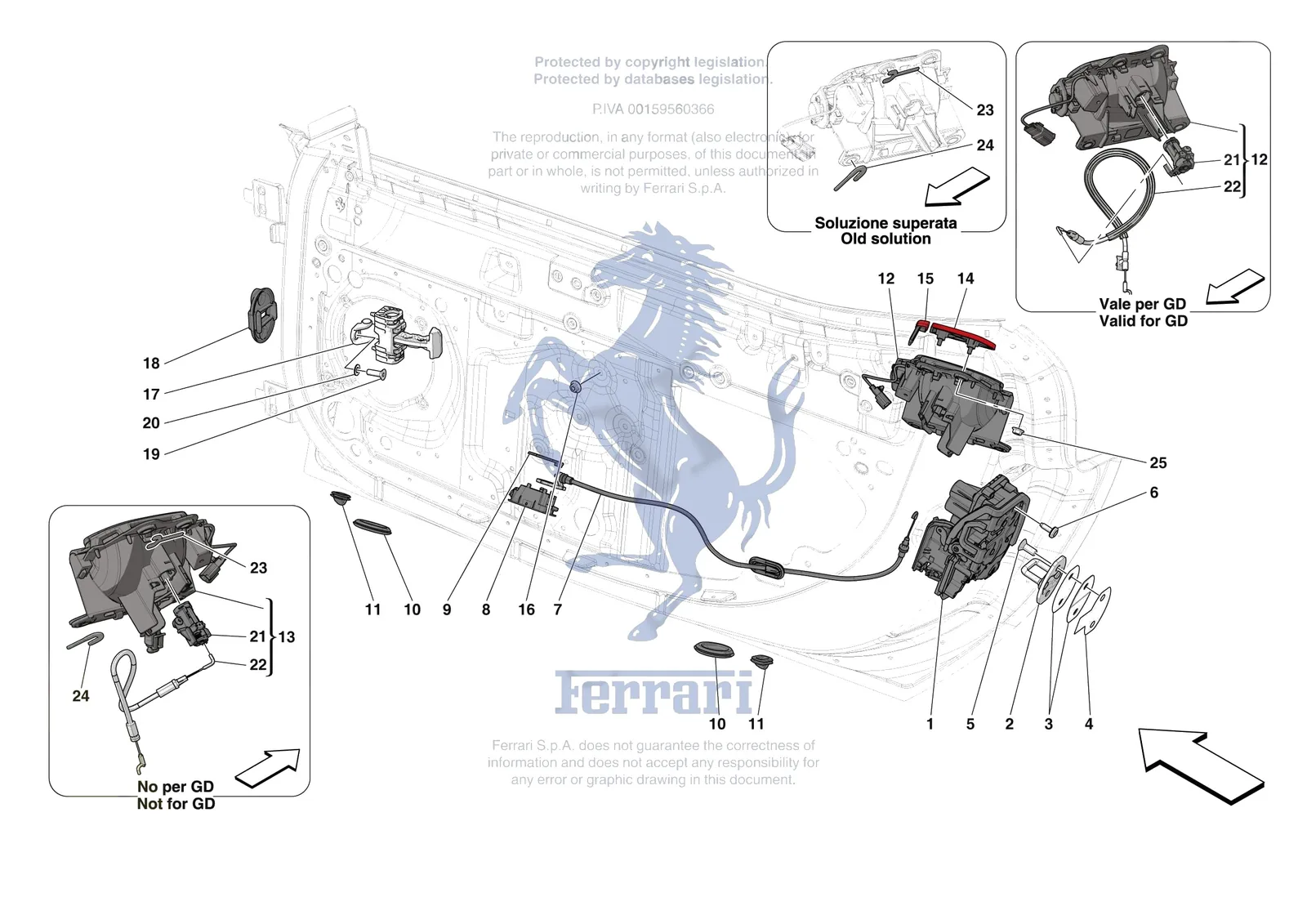

Ferrari 296 GTS [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
915505Ferrari Compl. LH Outer Door Handle - 915505$713.04Special order, ships in 7-14 days
820611Ferrari Compl. RH Outer Door Handle - 820611SupersededOrder 870284 instead
848279Ferrari Door Striker Plate Shim - 848279SupersededOrder 802693 instead
820614Ferrari LH Outer Door Handle Module - 820614SupersededOrder 870302 instead
880201Ferrari Maniglia Back-Up Apertura Po - 880201SupersededOrder 831375 instead
915712Ferrari RH Outer Door Handle Module - 915712$442.56Special order, ships in 7-14 days
1804856Ferrari LH Door Lock - 804856$958.91Special order, ships in 7-14 days
1804879Ferrari LH Door Lock - 804879$1,008.09Special order, ships in 7-14 days
1804870Ferrari RH Door Lock - 804870$958.91Special order, ships in 7-14 days
1804886Ferrari RH Door Lock - 804886$1,008.09Special order, ships in 7-14 days
2808736Ferrari Door Lock Striker Plate - 808736$29.48Special order, ships in 7-14 days
3802693Ferrari Door Striker Plate Shim - 802693$15.05Special order, ships in 7-14 days
4924578Ferrari Pellicola Per Scontrino Port - 924578$14.39Special order, ships in 7-14 days
585133400Ferrari Screw TSEI M8 x 20 - 85133400$1.30Available, ships in 3-6 days
680874100Ferrari Screw Torx - 80874100$1.97Available, ships in 3-6 days
755034982Ferrari Compl. Inner Door Handle Bow - 55034982$211.43Special order, ships in 7-14 days
7980005Ferrari Compl. Inner Door Handle Bow - 980005$211.43Special order, ships in 7-14 days
8831375Ferrari Compl. Door Handle - 831375$19.40Special order, ships in 7-14 days
9880232Ferrari Upper Cover - 880232$12.99Special order, ships in 7-14 days
10276467Ferrari Cover - 276467$6.31Special order, ships in 7-14 days
11979918Ferrari Door Substructure Plug - 979918$14.47Special order, ships in 7-14 days
12870284Ferrari Compl. RH Outer Door Handle - 870284$811.38Special order, ships in 7-14 days
12919641Ferrari RH Outer Door Handle Module - 919641$516.33Special order, ships in 7-14 days
13870302Ferrari LH Outer Door Handle Module - 870302$516.33Special order, ships in 7-14 days
13919640Ferrari LH Outer Door Handle Module - 919640$811.38Special order, ships in 7-14 days
14979381Ferrari LH Handle Two/Component Padd - 979381$90.95Special order, ships in 7-14 days
14980172Ferrari RH Handle Two/Component Padd - 980172$90.95Special order, ships in 7-14 days
15979385Ferrari LH Handle Button - 979385$19.40Special order, ships in 7-14 days
15980174Ferrari RH Handle Button - 980174$19.40Special order, ships in 7-14 days
1613832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
17825692Ferrari Door Arrestor/Check Strap - 825692$189.31Special order, ships in 7-14 days
1883897000Ferrari Door Arrester Tie-Rod Seal - 83897000$24.32Special order, ships in 7-14 days
1984872900Ferrari Screw - 84872900$0.82Available, ships in 3-6 days
20939222Ferrari Washer - 939222$6.31Special order, ships in 7-14 days
21805794Ferrari Latch Holder - 805794$467.15Special order, ships in 7-14 days
21939894Ferrari Latch Holder - 939894$491.74Special order, ships in 7-14 days
22915520Ferrari LH Door Bowden Cable - 915520$142.58Special order, ships in 7-14 days
23238692Ferrari Camber Spacer 0.5mm - 238692$12.65Special order, ships in 7-14 days
23238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
23238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
23238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
24263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
24263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
24263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
24263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
2512578011Ferrari Flanged Nyloc Nut - 12578011$0.31Available, ships in 3-6 days
