Ferrari 296 GTS — [VEHICLE TRIM] - E.32 - DOOR SEALS (diagram 0133)

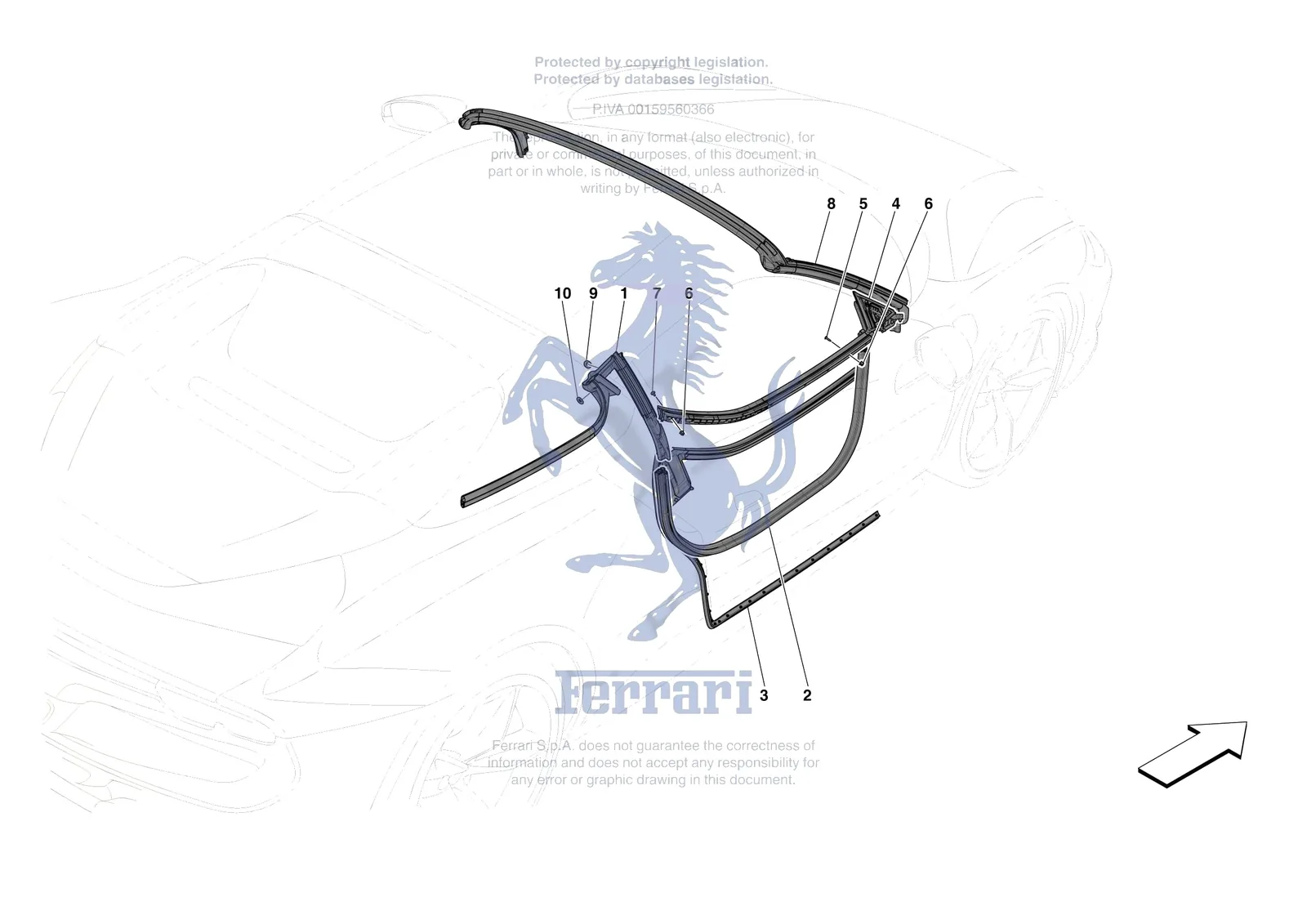

Exploded view of the [vehicle trim] - e.32 - door seals on the Ferrari 296 GTS, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.32 - DOOR SEALS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0133.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 961824 | Ferrari LH Door Inner Perimeter Seal - 961824 | Superseded | Order 861173 instead | |
| 961825 | Ferrari RH Door Inner Perimeter Seal - 961825 | Superseded | Order 861175 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 788058 | Ferrari LH Door Perimeter Seal - 788058 | $677.50 | Special order, ships in 7-14 days |
| 1 | 788061 | Ferrari RH Door Perimeter Seal - 788061 | $677.50 | Special order, ships in 7-14 days |
| 2 | 961826 | Ferrari Lower Door Perimeter Seal - 961826 | $146.41 | Available, ships in 3-6 days |
| 3 | 861173 | Ferrari LH Door Inner Perimeter Seal - 861173 | $590.08 | Special order, ships in 7-14 days |
| 3 | 861175 | Ferrari RH Door Inner Perimeter Seal - 861175 | $590.08 | Special order, ships in 7-14 days |
| 4 | 788093 | Ferrari Outer LH Door Seal - 788093 | $611.95 | Special order, ships in 7-14 days |
| 4 | 788094 | Ferrari Outer RH Door Seal - 788094 | $611.95 | Special order, ships in 7-14 days |
| 5 | 15689809 | Ferrari Screw D. 4.2 x 19 TBFIC - 15689809 | $0.27 | Available, ships in 3-6 days |
| 6 | 14115885 | Ferrari Fixing Block - 14115885 | $0.31 | Available, ships in 3-6 days |
| 7 | 15538777 | Ferrari Screw 8x13 - 15538777 | $0.34 | Available, ships in 3-6 days |
| 8 | 788049 | Ferrari Windscreen Perimeter Seal - 788049 | $1,376.91 | Special order, ships in 7-14 days |
| 9 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 10 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
