Ferrari 296 GTS — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari 296 GTS, with 114 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

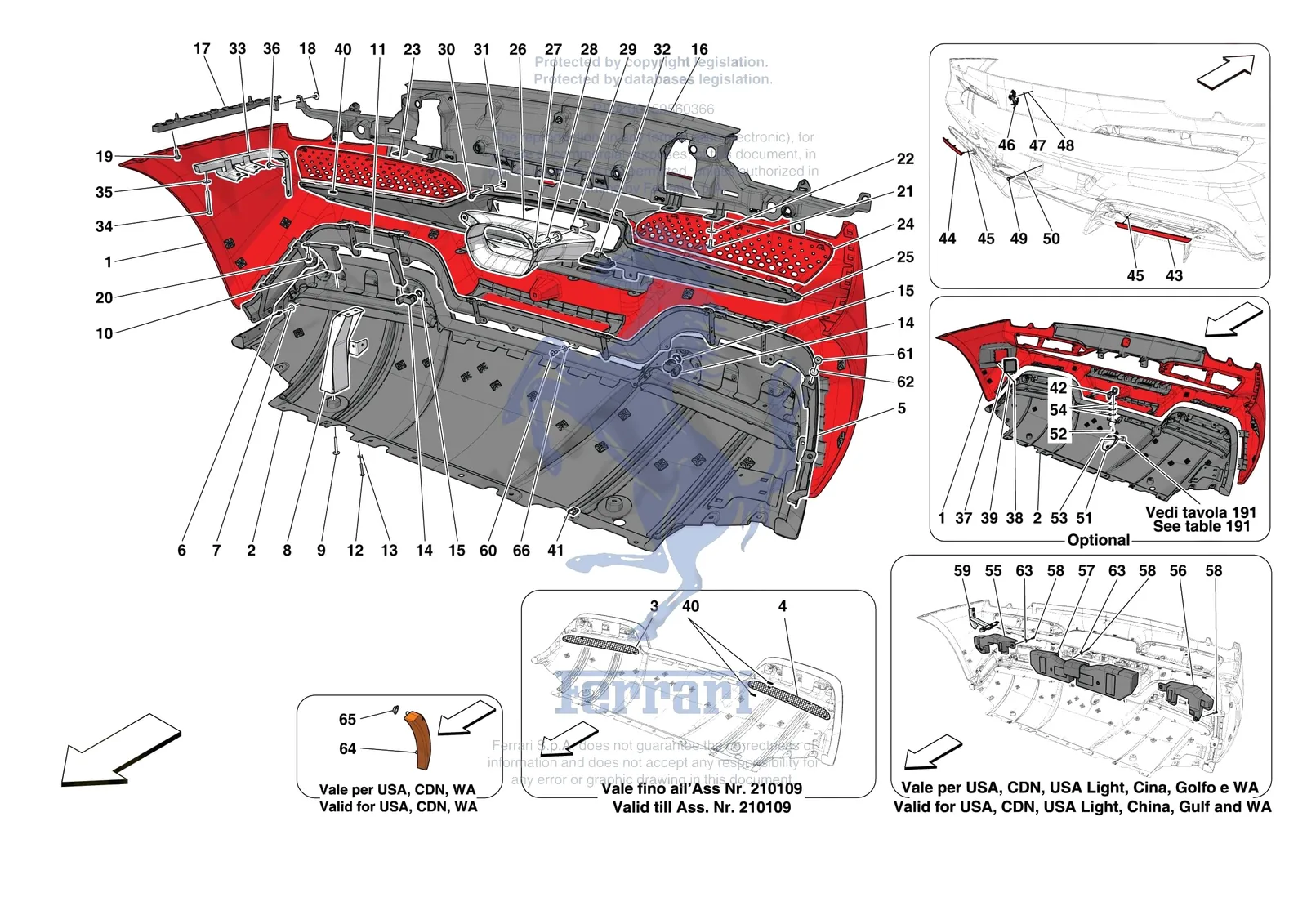

Ferrari 296 GTS [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
985776499Ferrari Compl. Rear Bumper - 985776499SupersededOrder 985812419 instead
985949813Ferrari Compl. Rear Bumper - 985949813SupersededOrder 985949815 instead
985984466Ferrari Compl. Rear Mesh - 985984466SupersededOrder 985802357 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
224997Ferrari Stud - 224997SupersededOrder 14303834 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
1985812419Ferrari Compl. Rear Bumper - 985812419$11,476.78Contact us to order
1985949815Ferrari Compl. Rear Bumper - 985949815$11,722.66Contact us to order
1985802357Ferrari Compl. Rear Mesh - 985802357$25,318.54Contact us to order
270007692Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70007692Price on requestContact us to order
270007693Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70007693Price on requestContact us to order
270007694Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70007694Price on requestContact us to order
270007695Ferrari Compl. Aerodynamic Extractor - 70007695$39,049.57Contact us to order
270007927Ferrari Compl. Aerodynamic Extractor - 70007927$46,625.62Contact us to order
270007928Ferrari Compl. Aerodynamic Extractor - 70007928$46,625.62Contact us to order
2804827Ferrari Compl. Aerodynamic Extractor - 804827$7,395.16Contact us to order
2866521Ferrari Compl. Aerodynamic Extractor - 866521SupersededOrder 887765 instead
2866621Ferrari Compl. Aerodynamic Extractor - 866621SupersededOrder 887758 instead
2866677Ferrari Compl. Aerodynamic Extractor - 866677SupersededOrder 887767 instead
2866836Ferrari Compl. Aerodynamic Extractor - 866836SupersededOrder 887753 instead
2887753Ferrari Compl. Aerodynamic Extractor - 887753$17,343.30Contact us to order
2887758Ferrari Compl. Aerodynamic Extractor - 887758$29,607.73Contact us to order
2887765Ferrari Compl. Aerodynamic Extractor - 887765$29,197.69Contact us to order
2887767Ferrari Compl. Aerodynamic Extractor - 887767$30,785.79Contact us to order
2984494Ferrari Compl. Aerodynamic Extractor - 984494$7,191.42Contact us to order
3984473Ferrari RH Diffuser Air Vent Mesh - 984473$43.68Special order, ships in 7-14 days
4984479Ferrari LH Diffuser Air Vent Mesh - 984479$43.68Special order, ships in 7-14 days
570007696Ferrari Diffuser Mesh - 70007696$26,175.27Contact us to order
5984449Ferrari Diffuser Mesh - 984449$2,447.86Special order, ships in 7-14 days
614641993Ferrari Rivet - 14641993$4.56Special order, ships in 7-14 days
785882600Ferrari Washer - 85882600$0.17Available, ships in 3-6 days
712644478Ferrari Washer D. 6.45 - 15 x 1 - 12644478SupersededOrder 85882600 instead
8984495Ferrari Compl. RH Diffuser Mounting - 984495$270.44Special order, ships in 7-14 days
9898128Ferrari Vite M6X50 Con Roset.Imp.5.5 - 898128$17.67Special order, ships in 7-14 days
10784001Ferrari Compl. LH Diffuser Bracket - 784001$115.54Special order, ships in 7-14 days
10784003Ferrari Compl. RH Diffuser Bracket - 784003$115.54Special order, ships in 7-14 days
11784002Ferrari Compl. LH Centre Diffuser Br - 784002$115.54Special order, ships in 7-14 days
11784004Ferrari Compl. RH Centre Diffuser Br - 784004$115.54Special order, ships in 7-14 days
1288831000Ferrari Screw M5 x 40 - 88831000$1.05Special order, ships in 7-14 days
1361148700Ferrari WASHER - 61148700SupersededOrder 12643724 instead
1312643724Ferrari/Maserati Washer - 12643724$0.20In stock
14295361Ferrari Parking Sensor - 295361$80.91In stock
15770452Ferrari Silicone Ring - 770452$17.02Special order, ships in 7-14 days
16984456Ferrari Compl. Rear Bumper Carrier - 984456$1,401.51Special order, ships in 7-14 days
17984493Ferrari Compl. LH Lateral Bracket - 984493$71.28Special order, ships in 7-14 days
17984500Ferrari Compl. RH Lateral Bracket - 984500$71.28Special order, ships in 7-14 days
18872456Ferrari Vite Tcti M6X18+R.Imp.D6X20X - 872456$3.03Special order, ships in 7-14 days
1916285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
1916286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
2011625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
2165377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
2212647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
23985984482Ferrari RH Rear Bumper Grille - 985984482$393.38Special order, ships in 7-14 days
24985984498Ferrari LH Rear Bumper Grille - 985984498$393.38Special order, ships in 7-14 days
2570007697Ferrari REAR BUMPER MESH - 70007697Price on requestContact us for price and availability
25984461Ferrari Rear Bumper Mesh - 984461$1,831.73Special order, ships in 7-14 days
26941181Ferrari Compl. Centre Tailpipe Tip - 941181$5,058.10Special order, ships in 7-14 days
26949215Ferrari Compl. Centre Tailpipe Tip - 949215$1,914.99Special order, ships in 7-14 days
2788710300Ferrari Screw - 88710300$1.09Special order, ships in 7-14 days
2887547900Ferrari Washer - 87547900$1.99Special order, ships in 7-14 days
2984583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
3085692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
3114370874Ferrari Bracket - 14370874$1.17Special order, ships in 7-14 days
32307799Ferrari Light - 307799$87.40Special order, ships in 7-14 days
33777778Ferrari Compl. LH Radiator Mount - 777778$243.40Special order, ships in 7-14 days
33777868Ferrari Compl. RH Radiator Mount - 777868$233.56Special order, ships in 7-14 days
3414303834Ferrari Allen Screw 6x60 - 14303834$3.26Available, ships in 3-6 days
3414303824Ferrari Screw - 14303824SupersededOrder 14303834 instead
3568040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
3681591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
37845401Ferrari Rear Radar - 845401$1,499.85Special order, ships in 7-14 days
37857446Ferrari Rear Radar - 857446$1,475.26Special order, ships in 7-14 days
3914497724Ferrari Washer - 14497724$2.59Special order, ships in 7-14 days
40787410Ferrari Clip - 787410$7.40Special order, ships in 7-14 days
4187546600Ferrari Clip - 87546600$1.74Available, ships in 3-6 days
42812611Ferrari Compl. Rear Camera Mounting - 812611$130.29Special order, ships in 7-14 days
4384806800Ferrari Right Rear Reflector - 84806800$29.40In stock
4484806900Ferrari Left Rear Reflector - 84806900$29.75In stock
4584784600Ferrari Washer For Pin - 84784600$43.68Special order, ships in 7-14 days
46825848Ferrari Cavallino Rampante - 825848$83.57Available, ships in 3-6 days
4670006276Ferrari Cavallino Rampante Badge - 70006276$71.28Special order, ships in 7-14 days
4670007698Ferrari Rear Mark Cavallino Rampante - 70007698$639.27Special order, ships in 7-14 days
4712642878Ferrari Washer - 12642878$0.19Available, ships in 3-6 days
4816101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
4911628524Ferrari Screw 6X40 - 11628524$2.59Special order, ships in 7-14 days
5012644425Ferrari Washer - 12644425$0.52Special order, ships in 7-14 days
51812625Ferrari Compl. Rear Camera Cover - 812625$228.64Special order, ships in 7-14 days
5285833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
5314417921Ferrari Screw M3 x 6 - 14417921$4.54Available, ships in 3-6 days
54812616Ferrari Shim - 812616$29.48Special order, ships in 7-14 days
55789409Ferrari RH Rear Bumper Impact Absorb - 789409$120.46Special order, ships in 7-14 days
56789411Ferrari LH Rear Bumper Impact Absorb - 789411$117.99Special order, ships in 7-14 days
57789408Ferrari Centre Rear Bumper Impact Absorber - 789408$191.76Special order, ships in 7-14 days
58872855Ferrari Vite M6X25 Tbei A Eslok - 872855$2.82Special order, ships in 7-14 days
59965537Ferrari Compl. RH Mounting Trellis - 965537$142.58Special order, ships in 7-14 days
6085691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
6114059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
61766266Ferrari Screw M5 x 14 - 766266$1.17Special order, ships in 7-14 days
6213577778Ferrari Washer - 13577778$0.57Special order, ships in 7-14 days
6210519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
6312643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
6487329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
6487329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days
6589241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days

All 296 GTS diagrams
