Ferrari 296 GTS — [VEHICLE TRIM] - E.42 - REAR ACTIVE AERO (diagram 0144)

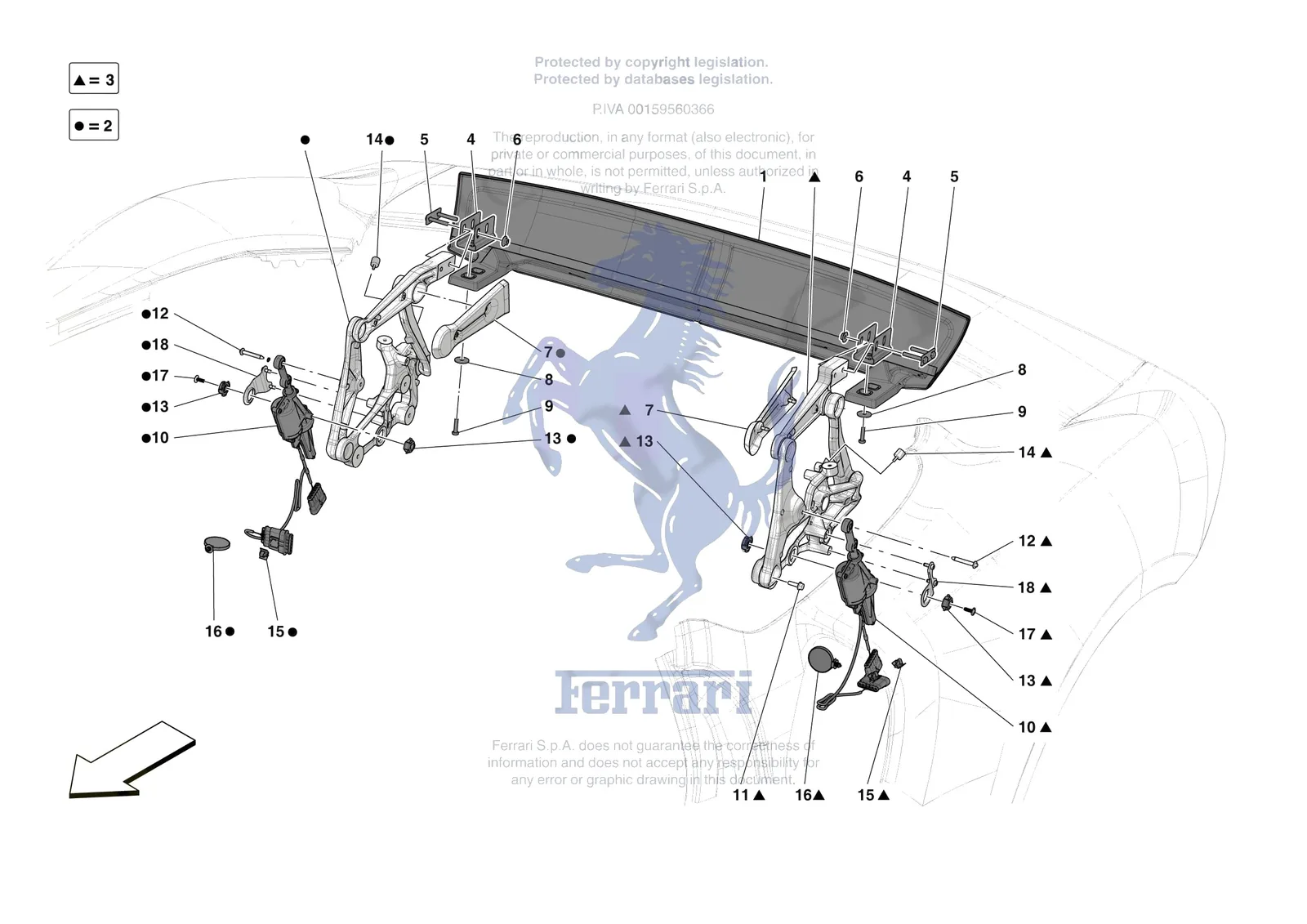

Exploded view of the [vehicle trim] - e.42 - rear active aero on the Ferrari 296 GTS, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.42 - REAR ACTIVE AERO exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0144.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 1 | 746801 | Ferrari Compl. Variable Geometry Win - 746801 | Superseded | Order 749675 instead |
| 1 | 746802 | Ferrari Compl. Variable Geometry Win - 746802 | Superseded | Order 830464 instead |
| 1 | 749675 | Ferrari Compl. Variable Geometry Win - 749675 | $12,525.87 | Contact us to order |
| 1 | 784346 | Ferrari Compl. Variable Geometry Win - 784346 | $3,210.49 | Special order, ships in 7-14 days |
| 1 | 830464 | Ferrari Compl. Variable Geometry Win - 830464 | $11,713.30 | Contact us to order |
| 1 | 70007699 | Ferrari COMPL. VARIABLE GEOMETRY WING - 70007699 | Price on request | Contact us for price and availability |
| 2 | 793804 | Ferrari RH Wing Kinematics - 793804 | $3,294.79 | Special order, ships in 7-14 days |
| 3 | 793805 | Ferrari LH Wing Kinematics - 793805 | $3,294.79 | Special order, ships in 7-14 days |
| 4 | 788731 | Ferrari Variable Geometry Wing Brack - 788731 | $61.45 | Special order, ships in 7-14 days |
| 5 | 788746 | Ferrari Variable Geometry Wing Mount - 788746 | $58.98 | Special order, ships in 7-14 days |
| 5 | 942479 | Ferrari Variable Geometry Wing Mount - 942479 | $61.45 | Special order, ships in 7-14 days |
| 6 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 7 | 954427 | Ferrari Variable Geometry Wing Heat - 954427 | $120.46 | Special order, ships in 7-14 days |
| 8 | 12640604 | Ferrari Washer D.6 15-25X - 12640604 | $0.27 | Available, ships in 3-6 days |
| 9 | 11626124 | Ferrari Screw 6x25 - 11626124 | Superseded | Order 11612826 instead |
| 9 | 11612826 | Ferrari Screw M6 x 25 - 11612826 | $6.75 | Available, ships in 3-6 days |
| 10 | 335169 | Ferrari Linear Electric Actuator - 335169 | $1,136.49 | Special order, ships in 7-14 days |
| 11 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
| 12 | 772365 | Ferrari Variable Geom. Wing Actuator - 772365 | $34.40 | Special order, ships in 7-14 days |
| 13 | 814978 | Ferrari Cuscinetto Clip Eclm-10- - 814978 | $43.68 | Special order, ships in 7-14 days |
| 14 | 789739 | Ferrari Endstop Bush - 789739 | $20.87 | Special order, ships in 7-14 days |
| 15 | 291283 | Ferrari Clip - 291283 | $1.09 | Special order, ships in 7-14 days |
| 16 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 17 | 857463 | Ferrari Vite Autoformante Tc 5 X 14 - 857463 | $0.50 | Special order, ships in 7-14 days |
| 18 | 772193 | Ferrari Variable Geometry Wing Actua - 772193 | $152.41 | Special order, ships in 7-14 days |
