Ferrari 296 GTS — [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- (diagram 0150)

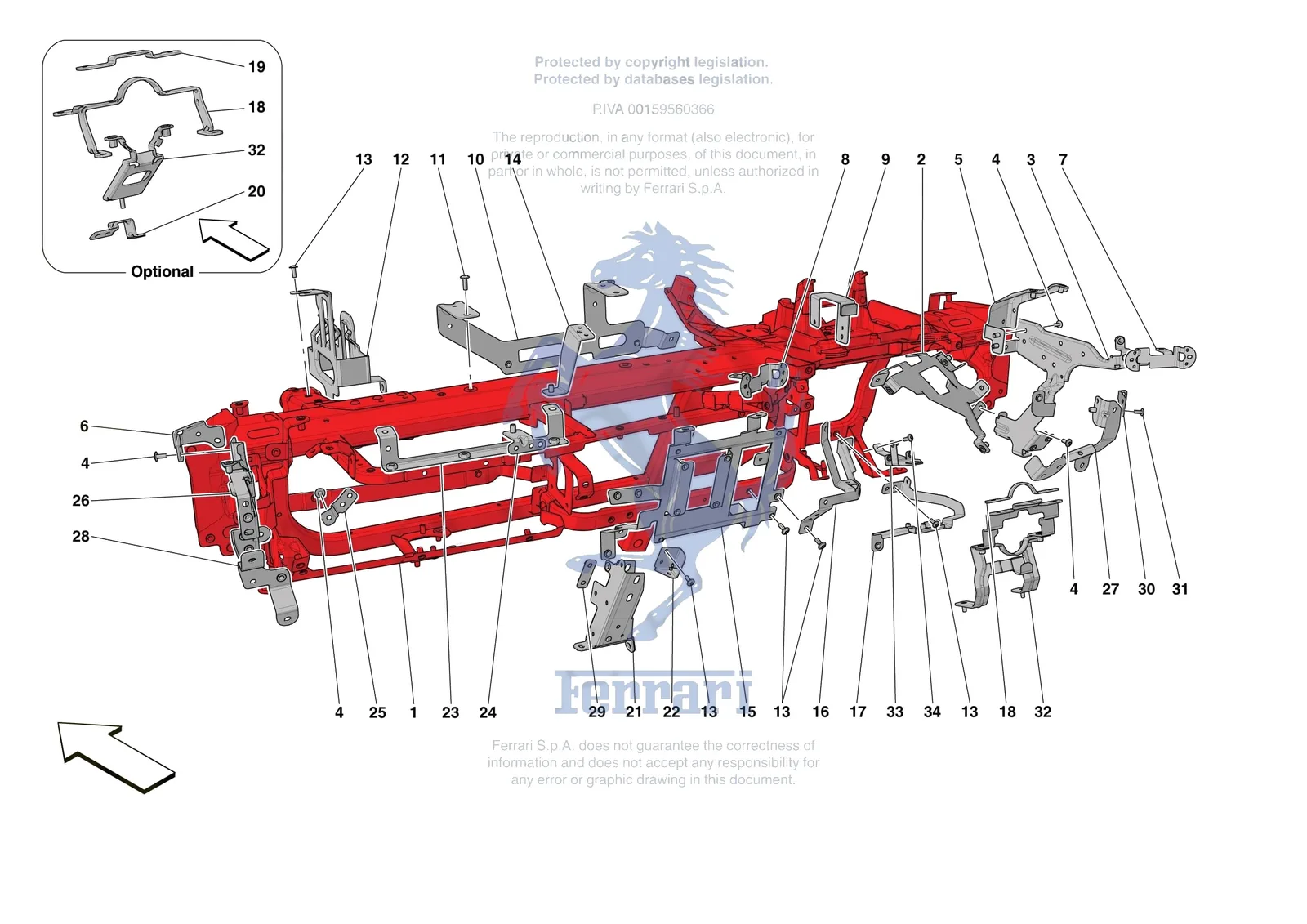

Exploded view of the [vehicle trim] - e.47.02 - dashboard - substructure -applicable for rhd- on the Ferrari 296 GTS, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0150.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 970191 | Ferrari Lower Bracket For Lower Stee - 970191 | $204.05 | Special order, ships in 7-14 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 800059 | Ferrari Upper Bracket For Lower Stee - 800059 | Superseded | Order 851446 instead | |
| 1 | 778536 | Ferrari Complete Cross Member - 778536 | $7,053.26 | Special order, ships in 7-14 days |
| 2 | 778664 | Ferrari Compl. Body Computer Bracket - 778664 | $140.13 | Special order, ships in 7-14 days |
| 3 | 778674 | Ferrari Compl. RH Driver Side Air Du - 778674 | $162.25 | Special order, ships in 7-14 days |
| 4 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 5 | 778556 | Ferrari Compl. RH Defroster Substruc - 778556 | $130.29 | Special order, ships in 7-14 days |
| 6 | 778604 | Ferrari LH DEFROSTER SUBSTRUCTURE BRACKET - 778604 | Price on request | Contact us for price and availability |
| 7 | 970190 | Ferrari RH Satellite Bracket - 970190 | $34.40 | Special order, ships in 7-14 days |
| 8 | 970196 | Ferrari LH SATELLITE BRACKET - 970196 | Price on request | Contact us for price and availability |
| 9 | 778634 | Ferrari LH SIDE DUCT MOUNTING BRACKET - 778634 | Price on request | Contact us for price and availability |
| 10 | 778689 | Ferrari Compl. Hvac Unit Mounting Br - 778689 | $110.61 | Special order, ships in 7-14 days |
| 11 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 12 | 875034 | Ferrari Compl. Suspension ECU Mounti - 875034 | $177.00 | Special order, ships in 7-14 days |
| 14 | 778852 | Ferrari Compl. Top Cover Mounting Br - 778852 | $34.40 | Special order, ships in 7-14 days |
| 15 | 778529 | Ferrari Compl. Centre Bracket - 778529 | $184.38 | Special order, ships in 7-14 days |
| 16 | 778561 | Ferrari Compl. Lateral Reinforcement - 778561 | $110.61 | Special order, ships in 7-14 days |
| 17 | 778548 | Ferrari Compl. Lower Bracket - 778548 | $95.87 | Special order, ships in 7-14 days |
| 18 | 851446 | Ferrari Upper Bracket For Lower Stee - 851446 | $66.35 | Special order, ships in 7-14 days |
| 18 | 851482 | Ferrari Upper Elec. Adj. Steering Co - 851482 | $68.83 | Special order, ships in 7-14 days |
| 19 | 837930 | Ferrari Upper Steering Column Trim Bracket - 837930 | $22.60 | Special order, ships in 7-14 days |
| 20 | 820918 | Ferrari Under Dashboard Bracket - 820918 | $31.93 | Special order, ships in 7-14 days |
| 21 | 778531 | Ferrari Compl. Support Base - 778531 | $177.00 | Special order, ships in 7-14 days |
| 22 | 778547 | Ferrari Bracket - 778547 | $23.82 | Special order, ships in 7-14 days |
| 23 | 778864 | Ferrari Compl. Upper Bracket - 778864 | $51.62 | Special order, ships in 7-14 days |
| 24 | 778854 | Ferrari Bracket On Compl. Top Cover - 778854 | $29.48 | Special order, ships in 7-14 days |
| 25 | 778855 | Ferrari LH Casting Side Fastener Bra - 778855 | $18.42 | Special order, ships in 7-14 days |
| 26 | 778602 | Ferrari Compl. RH Duct Fastener Brac - 778602 | $159.79 | Special order, ships in 7-14 days |
| 27 | 917668 | Ferrari Compl. Fastener Bracket For - 917668 | $51.62 | Special order, ships in 7-14 days |
| 28 | 778578 | Ferrari Compl. LH Lower Cap Fastener - 778578 | $29.48 | Special order, ships in 7-14 days |
| 29 | 85441400 | Ferrari Plate - 85441400 | $10.91 | Special order, ships in 7-14 days |
| 30 | 917523 | Ferrari Bracket - 917523 | $12.02 | Special order, ships in 7-14 days |
| 32 | 851447 | Ferrari Lower Bracket For Lower Stee - 851447 | $223.73 | Special order, ships in 7-14 days |
| 32 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 33 | 945939 | Ferrari Dongle Bracket - 945939 | $127.82 | Special order, ships in 7-14 days |
